Zincolibethenite

CuZn(PO4)(OH)
IMA status
  • Approved
IMA symbol
Zlib
IMA approved
2003
Also known as
  • IMA2003-010
  • Zincolibetheniet
  • Zinkolibethenit

Where it forms, where it's found

Type locality
Kabwe Mine
  1. Kabwe
  2. Kabwe District
  3. Central Province
  4. Zambia

-14.4553°, 28.4336°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Bright green · bluish tint
Density
3.972 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 49°
Refractive index
1.66 – 1.715
Surface relief
High
Principal indices
nα 1.660 · nβ 1.705 · nγ 1.715
Pleochroism
Non-pleochroic
Dispersion
r < v, medium
Michel-Lévy diagramhighlighted lineδ = 0.0550
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]550 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation550 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#73
Cell parameters
a = 8.3263 Å · b = 8.2601 Å · c = 5.8771 Å
Ratio a:b:c
1 : 0.992 : 0.706
Type-locality form

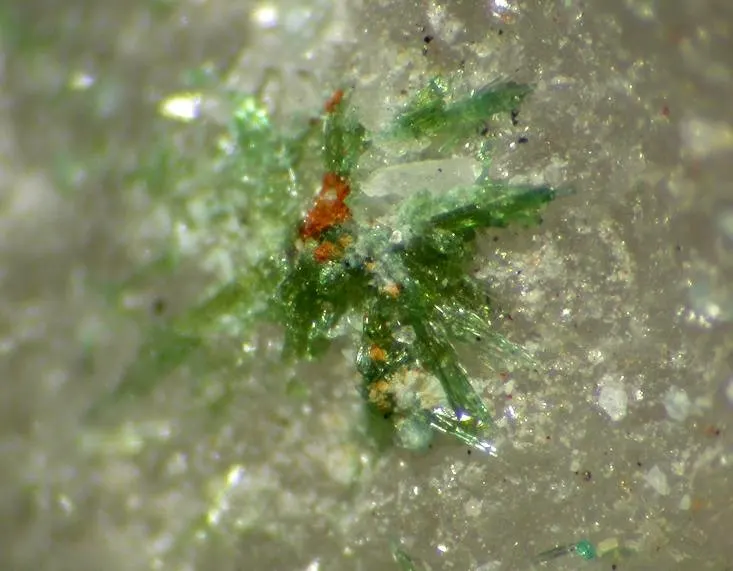

Bright blue-green, transparent, prismatic crystals < 1 mm long, terminated by domes or prisms, in tightly packed sheaves and radiating clusters. Also as translucent, compact, radiating spherical clusters ~ 1 mm in diameter, along with aggregates of clusters in which individual crystals cannot be distinguished.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
33.20%
30ZnZincZinc165.38065.380
27.14%
29CuCopperCopper163.54663.546
26.38%
15PPhosphorusPhosphorus130.97430.974
12.86%
1HHydrogenHydrogen11.0081.008
0.42%
Total240.903100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2003-010
  • Zincolibetheniet
  • Zinkolibethenit

In other languages

German
IMA 2003-010 · Zincolibethenit
Spanish
Zincolibethenita
Italian
zincolibethenite

Classification

Strunz
10th ed.

8.BB.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.30ZincolibetheniteSpecies

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 2005Braithwaite, R. S. W., Pritchard, R. G., Paar, W. H., Pattrick, R. A. D. (2005) A new mineral, zincolibethenite, CuZnPO4OH, a stoichiometric species of specific site occupancy. Mineralogical Magazine, 69 (2) 145-153 doi:10.1180/0026461056920242DOI: 10.1180/0026461056920242
  2. 2006Williams, P.A., Leverett, P., Birch, W.D., Hibbs, D.E., Kolitsch, U., Mihajlović, T. (2006) Zinc-rich zincolibethenite from Broken Hill, New South Wales. Australian Journal of Mineralogy: 12: 3-7.
  3. 2014(2014) Zincolibethenite. Handbook of Mineralogy. Mineralogical Society of America
