Bendadaite

Fe2+Fe3+2(AsO4)2(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Bdd
IMA approved
2007
Also known as
  • Bendadaiet
  • IMA1998-053a

Where it forms, where it's found

Geological setting

Pegmatite

Type locality
Almerindo claim
  1. Linópolis
  2. Divino das Laranjeiras
  3. Minas Gerais
  4. Brazil

-18.6739°, -41.4639°

12recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Blackish green to dark brownish
Streak
Greenish yellow
Tenacity
brittle
Cleavage
Distinct/Good

parallel to (010)

Fracture
Irregular/Uneven
Density
3.15 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 85° · 2V calc = 88°
Refractive index
1.734 – 1.787
Surface relief
High
Principal indices
nα 1.734 · nβ 1.759 · nγ 1.787
Pleochroism
Strong

X = pale reddish brown; Y = yellowish brown; Z = dark yellowish brown.

Extinction
Optical axis plane is parallel to (010); X ≈ a; Z ≈ c.
UV response
None
Notes

Absorption: Z > Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0530
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]530 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation530 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.239 Å · b = 9.713 Å · c = 5.552 Å
Cell angles
β = 94.11 °
Ratio a:b:c
1 : 0.949 : 0.542
Z
2
Twinning

None

Type-locality form

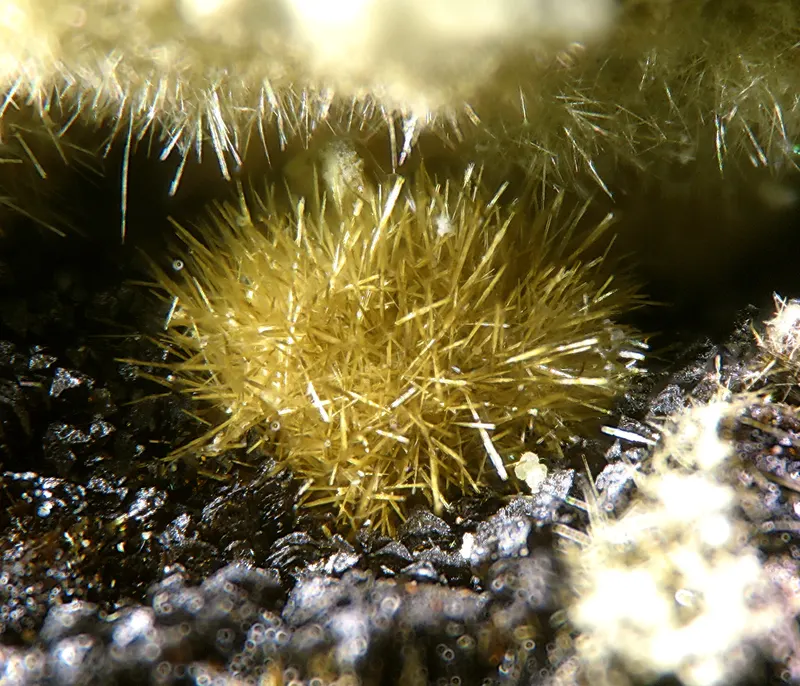

Tufts (<0.1 mm long) and flattened radiating aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
40.62%
26FeIronIron355.845167.535
30.38%
33AsArsenicArsenic274.922149.844
27.17%
1HHydrogenHydrogen101.00810.080
1.83%
Total551.445100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bendadaiet
  • IMA1998-053a

In other languages

German
Bendadait · IMA 1998-053a
Spanish
Bendadaita
Italian
bendadaite

Classification

Strunz
10th ed.

8.DC.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.15BendadaiteSpecies
Dana
8th ed.

42.11.20.06

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.20— unnamed intermediate level —Group
  • 42.11.20.06BendadaiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2010Kolitsch, U., Atencio, D., Chukanov, N. V., Zubkova, N. V., Menezes Filho, L. A. D., Coutinho, J. M. V., Birch, W. D., Schlüter, J., Pohl, D., Kampf, A. R., Steele, I. M., Favreau, G., Nasdala, L., Möckel, S., Giester, G., Pushcharovsky, D. Yu. (2010) Bendadaite, a new iron arsenate mineral of the arthurite group. Mineralogical Magazine, 74 (3) 469-486 doi:10.1180/minmag.2010.074.3.469 DOI: 10.1180/minmag.2010.074.3.469
  2. 2019Sejkora, Jiří, Tvrdý, Jaromír, Čejka, Jiří, Vrtiška, Luboš, Dolníček, Zdeněk (2019) Bendadaite from Krásno near Horní Slavkov (Czech Republic), description and Raman spectroscopy. Bulletin Mineralogie Petrologie, 27 (1) 63-71
  3. 2021(2021) Bendadaite. Handbook of Mineralogy. Mineralogical Society of America
