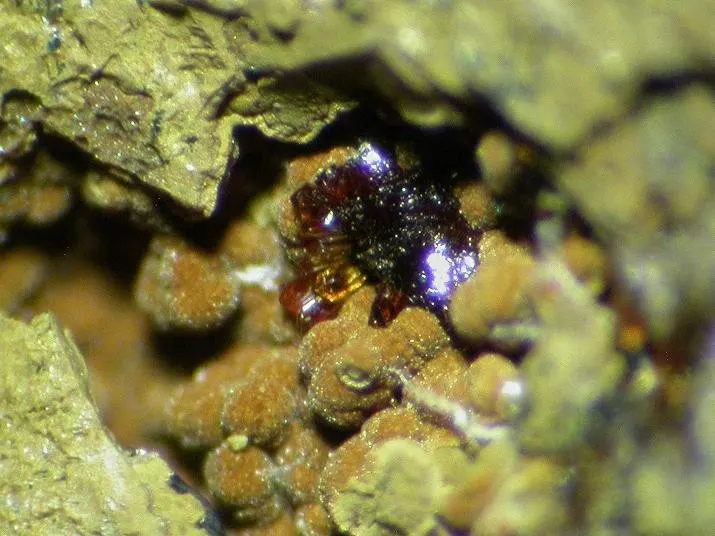

Earlshannonite

Mn2+Fe3+2(PO4)2(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Esn
Discovered
1983
IMA approved
1983
Also known as
  • Earlshannoniet
  • IMA1983-010

Where it forms, where it's found

Geological setting

Pegmatite

Type locality
Foote Lithium Co. Mine
  1. Kings Mountain
  2. Cleveland County
  3. North Carolina
  4. USA

35.2111°, -81.3556°

17recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Dark reddish brown · yellowish brown · yellow-orange · bright yellow
Streak
Light brown
Tenacity
brittle
Cleavage
Poor/Indistinct

Two poor cleavages, one is likely (100).

Fracture : even

Density
2.90 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 64° · 2V calc = 62°
Refractive index
1.696 – 1.765
Surface relief
High
Principal indices
nα 1.696 · nβ 1.745 · nγ 1.765
Pleochroism
Visible

X = Y light yellow brown; Z yellow brown.

Dispersion
r > v
Extinction
Z = c.
UV response
None
Notes

Absorption: Z > X ≈ Y.

Michel-Lévy diagramhighlighted lineδ = 0.0690
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]690 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation690 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 9.91 Å · b = 9.66 Å · c = 5.45 Å
Cell angles
β = 93.95 °
Ratio a:b:c
1 : 0.975 : 0.550
Z
2
Morphology

Prismatic, elongate on [001], with forms (110) (dominant) and (100) and (011) (minor). Commonly exhibit parallel growth with [001] in common.

Twinning

Twinned on (100).

Type-locality form

Radial aggregates of crystals to 0.5 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
48.41%
26FeIronIron255.845111.690
24.14%
15PPhosphorusPhosphorus230.97461.948
13.39%
25MnManganeseManganese154.93854.938
11.88%
1HHydrogenHydrogen101.00810.080
2.18%
Total462.642100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Earlshannoniet
  • IMA1983-010

In other languages

German
Earlshannonit · IMA 1983-010
Italian
earlshannonite

Classification

Strunz
10th ed.

8.DC.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.15EarlshannoniteSpecies
Dana
8th ed.

42.11.20.04

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.20— unnamed intermediate level —Group
  • 42.11.20.04EarlshannoniteSpecies
CIM

19.12.21

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.21EarlshannoniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1984Peacor, Donald R., Dunn, Peter J., Simmons, William B. (1984) Earlshannonite, the Mn analogue of whitmoreite, from North Carolina. The Canadian Mineralogist, 22 (3) 471-474
  2. 1985Dunn, Pete J., Fleischer, Michael, Langley, Richard H., Shigley, James E., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (7-8) 871-881
  3. 2005(2005) Earlshannonite. Handbook of Mineralogy. Mineralogical Society of America
