Ojuelaite

ZnFe3+2(AsO4)2(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Ojl
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-035
  • Ojuelaiet

Where it forms, where it's found

Type locality
Ojuela Mine
  1. Mapimí
  2. Mapimí Municipality
  3. Durango
  4. Mexico

25.7936°, -103.7911°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale yellowish · pale greenish
Streak
pale yellow
Cleavage
Imperfect/Fair

(010), observable

Density
3.39 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 73° · 2V calc = 74°
Refractive index
1.696 – 1.798
Surface relief
High
Principal indices
nα 1.696 · nβ 1.730 · nγ 1.798
Pleochroism
Weak

In yellows.

Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.1020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1020 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1020 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 10.237(1) Å · b = 9.662(3) Å · c = 5.562(1) Å
Cell angles
β = 94.36(1) °
Ratio a:b:c
1 : 0.944 : 0.543
Z
2
Morphology

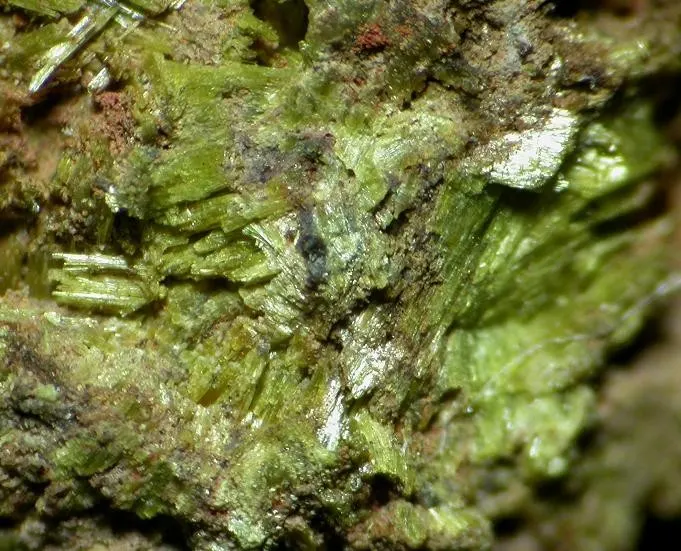

Acicular crystals or fibers, elongated to 4 mm, commonly in divergent sprays

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
39.93%
33AsArsenicArsenic274.922149.844
26.71%
26FeIronIron255.845111.690
19.91%
30ZnZincZinc165.38065.380
11.65%
1HHydrogenHydrogen101.00810.080
1.80%
Total560.980100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-035
  • Ojuelaiet

In other languages

German
IMA 1979-035 · Ojuelait
Italian
Ojuelaite

Classification

Strunz
10th ed.

8.DC.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.15OjuelaiteSpecies
Dana
8th ed.

42.11.20.03

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.20— unnamed intermediate level —Group
  • 42.11.20.03OjuelaiteSpecies
CIM

20.3.20

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.3Arsenates of Zn, Cd or HgGroup
  • 20.3.20OjuelaiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1981Cesbron, Fabien, Romero S., Miguel, Williams, Sydney A. (1981) La mapimite et l'ojuélaïte, deux nouveaux arséniates hydratés de zinc et de fer de la mine Ojuela, Mapimi, Mexique. Bulletin de Minéralogie, 104 (4) 582-586 doi:10.3406/bulmi.1981.7510 DOI: 10.3406/bulmi.1981.7510
  2. 1982Fleischer, M., Cabri, L.J., Chao, G.Y., Mandarino, J.A., Pabst, A. (1982) New mineral names. American Mineralogist: 67: 621-624.
  3. 1996Hughes, John M., Bloodaxe, Erich S., Kobel, Kyle D., Drexler, John W. (1996) The atomic arrangement of ojuelaite, ZnFe23+(AsO4)2(OH)2·4H2O. Mineralogical Magazine, 60 (400) 519-521 doi:10.1180/minmag.1996.060.400.15 DOI: 10.1180/minmag.1996.060.400.15
  4. 2005(2005) Ojuelaite. Handbook of Mineralogy. Mineralogical Society of America
