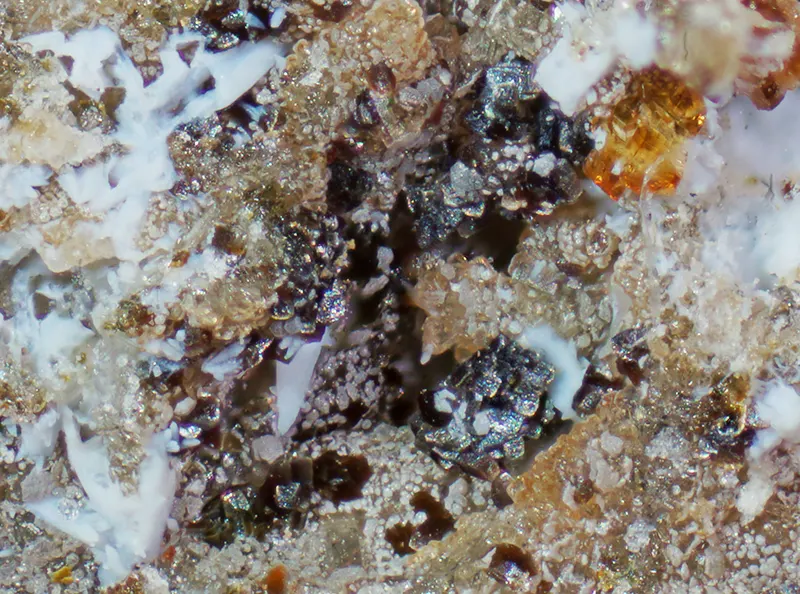

Bimbowrieite

NaMgFe3+5(PO4)4(OH)6 · 2H2O
IMA status
  • Approved
IMA symbol
Bbw
IMA approved
2020
Also known as
  • Bimbowrieiet
  • IMA2020-006

Where it forms, where it's found

Geological setting

mineralogically zoned rare-element bearing pegmatite and belongs to the beryl-columbite phosphate-rare element type In seams in a matrix comprising triplite and fluorapatite

Type locality
White Rock No. 2 pegmatite
  1. White Rock Feldspar Mine
  2. Old Boolcoomata Station
  3. Bimbowrie Conservation Park
  4. Pastoral Unincorporated Area
  5. South Australia
  6. Australia

-32.0811°, 140.3292°

1recorded occurrences
Source · OpenStreetMap

Physical

Colour
dark olive green to greenish brown
Streak
olive green
Tenacity
brittle
Cleavage
Very Good

one excellent cleavage on (100)

Fracture
Irregular/Uneven

Optical

Optical type
Biaxial (+) · 2V measured = 89.4° · 2V calc = 90.5°
Refractive index
1.785 – 1.805
Surface relief
High
Principal indices
nα 1.785 · nβ 1.795 · nγ 1.805
Pleochroism
Strong

X brown orange, Y brown yellow, Z blue green

Dispersion
r < v, extreme
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 25.995(5) Å · b = 5.151(1) Å · c = 13.892(3) Å
Cell angles
β = 111.61(3) °
Ratio a:b:c
1 : 0.198 : 0.534
Z
4
Type-locality form

Crystals are bladed with dimensions of up to 150 µm. Crystals occur as aggregates up to 0.4 mm across

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
45.47%
26FeIronIron555.845279.225
33.07%
15PPhosphorusPhosphorus430.974123.896
14.67%
12MgMagnesiumMagnesium124.30524.305
2.88%
11NaSodiumSodium122.99022.990
2.72%
1HHydrogenHydrogen101.00810.080
1.19%
Total844.472100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bimbowrieiet
  • IMA2020-006

In other languages

German
Bimbowrieit · IMA 2020-006

Classification

Strunz
10th ed.

8.DK

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DKWith large and medium-sized cations, (OH, etc.):RO4 > 1:1 and < 2:1Group
  • 8.DKBimbowrieiteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) . CNMNC Newsletter No 54. Mineralogical Magazine, 84 (2) 359-365 doi:10.1180/mgm.2020.21DOI: 10.1180/mgm.2020.21
  2. 2022(2022) Bimbowrieite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2024Elliott, Peter, Kampf, Anthony R. (2024) Bimbowrieite, NaMgFe3+5(PO4)4(OH)6⋅2H2O, a new dufrénite-group mineral from the White Rock No.2 quarry, South Australia, Australia. Mineralogical Magazine, 88 (1). 90-96 doi:10.1180/mgm.2023.86DOI: 10.1180/mgm.2023.86
