Burangaite

NaFe2+Al5(PO4)4(OH)6 · 2H2O
IMA status
  • Approved
IMA symbol
Brg
Discovered
1976
IMA approved
1976
Also known as
  • Burangaiet
  • IMA1976-013

Where it forms, where it's found

Geological setting

Granite pegmatite.

Type locality
Buranga pegmatite
  1. Muhororo
  2. Ngororero District
  3. Western Province
  4. Rwanda

-1.9214°, 29.6542°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond

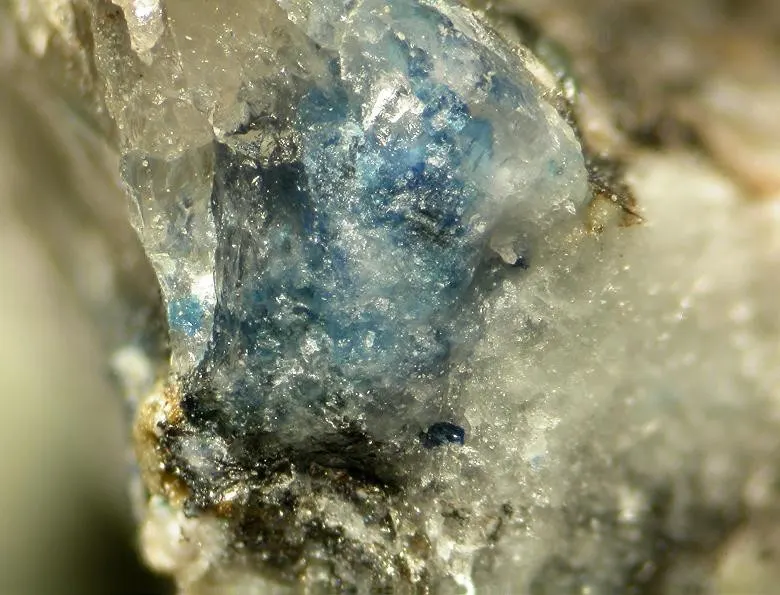

Colour
Blue · colorless

Crystals often show an hourglass structure with a blue core and colorless margin.

Streak
Weakly bluish
Cleavage
Perfect

Parallel to (100)

Optical

Optical type
Biaxial (-) · 2V measured = 58° · 2V calc = 58°
Refractive index
1.611 – 1.643
Surface relief
Moderate
Principal indices
nα 1.611 · nβ 1.635 · nγ 1.643
Pleochroism
Strong

X = light blue; Y = dark blue; Z = colorless.

Dispersion
relatively strong
Extinction
Z = b; X ∧ c = 11°.
Notes

Absorption: Y > X > Z.

Michel-Lévy diagramhighlighted lineδ = 0.0320
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]320 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation320 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 25.09 Å · b = 5.04 Å · c = 13.45 Å
Cell angles
β = 110.91 °
Ratio a:b:c
1 : 0.201 : 0.536
Morphology

Long prismatic crystals, characteristically bladed in appearance. Forms include (301), (102), (104), <mi}{_l0l}, (223), (311), (223), (311), and (401).

Type-locality form

Conspicuous bluish-green radiating crystals in aplite or as bluish, long prismatic crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
52.48%
13AlAluminiumAluminium526.982134.910
18.44%
15PPhosphorusPhosphorus430.974123.896
16.93%
26FeIronIron155.84555.845
7.63%
11NaSodiumSodium122.99022.990
3.14%
1HHydrogenHydrogen101.00810.080
1.38%
Total731.697100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Burangaiet
  • IMA1976-013

In other languages

German
Burangait · IMA 1976-013
Italian
Burangaite

Classification

Strunz
10th ed.

8.DK.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DKWith large and medium-sized cations, (OH, etc.):RO4 > 1:1 and < 2:1Group
  • 8.DK.15BurangaiteSpecies
Dana
8th ed.

42.09.01.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.09(AB)7(XO4)4Zq·xH2OType
  • 42.09.01Burangaite GroupGroup
  • 42.09.01.01BurangaiteSpecies
CIM

19.14.9

  • 19PhosphatesClass
  • 19.14Phosphates of Fe and other metalsGroup
  • 19.14.9BurangaiteSpecies

Group, growth & confusion

In the same group
5 members
Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. 1973von Knorring, O. (1973) Notes of pegmatite minerals from Rwanda, Uganda and South West Africa. 17th Ann. Rep. Res. Inst. African Geol., Univ. Leeds: 72-73 [as an unnamed blue fibrous mineral].
  2. 1977von Knorring, O., Lehtinen, M., Sahama, Th.G. (1977) Burangaite, a new phosphate mineral from Rwanda. Bulletin of the Geological Society of Finland, 49 (1). 33-36 doi:10.17741/bgsf/49.1.006 DOI: 10.17741/bgsf/49.1.006
  3. 1978Fleischer, Michael; Pabst, Adolf, White, John Sampson (1978) New mineral names. American Mineralogist, 63 (7-8). 793-796
  4. 1990Ek, Roland, Nysten, Per (1990) Phosphate mineralogy of the Hålsjöberg and Hökensås kyanite deposits. Geologiska Föreningen i Stockholm Förhandlingar, 112 (1) 9-18 doi:10.1080/11035899009453156DOI: 10.1080/11035899009453156
  5. 1997Selway, J.B., Cooper, M.A., and Hawthorne, F.C. (1997) Refinement of the crystal structure of burangaite. The Canadian Mineralogist: 35: 1515-1522.
