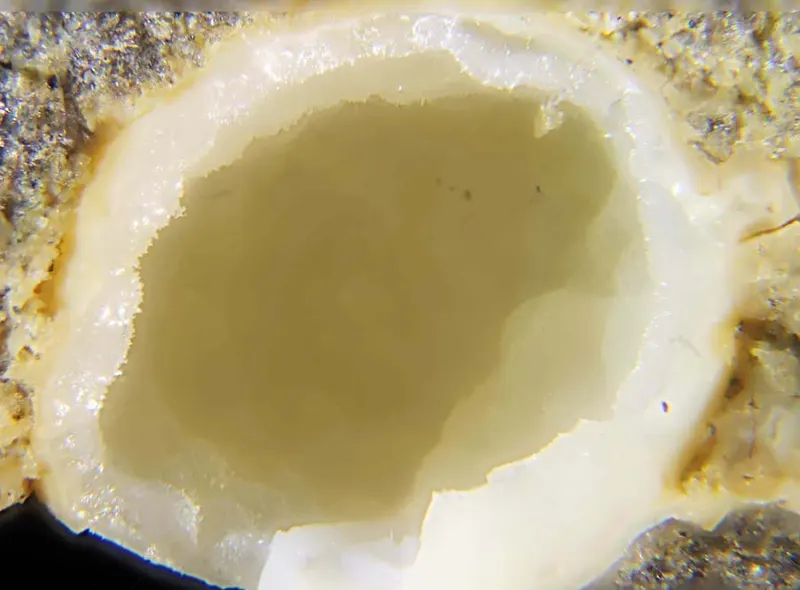

Boggsite

Na3Ca8(Si77Al19)O192 · 70H2O
IMA status
  • Approved
IMA symbol
Bgs
Discovered
1990
Also known as
  • Boggsiet
  • IMA1989-009

Where it forms, where it's found

Type locality
Neer Road
  1. Goble
  2. Columbia County
  3. Oregon
  4. USA

46.0203°, -122.8789°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Dull
Transparency
Transparent
Colour
White · colourless
Streak
White
Cleavage
None Observed
Density
1.98 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 25° · 2V calc = 46°
Refractive index
1.48 – 1.487
Surface relief
Low
Principal indices
nα 1.48 · nβ 1.481 · nγ 1.487
Dispersion
none
Extinction
X = c; Y = a; Z = b.
UV response
Colorless, transparent boggsite does not fluoresce in ultraviolet radiation, but white zones fluoresce a weak blue- white under both long and short wave ultraviolet radiation.
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#57
Cell parameters
a = 20.21(2) Å · b = 23.77(1) Å · c = 12.80(1) Å
Ratio a:b:c
1 : 1.176 : 0.633
Z
4
Comment

Crystal-structure determination gave a = 20.236(2), b = 23.798(1), c = 12.798(1) Å (Pluth and Smith, 1992).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen26215.9994191.738
56.66%
14SiSiliconSilicon7728.0852162.545
29.23%
13AlAluminiumAluminium1926.982512.658
6.93%
20CaCalciumCalcium840.078320.624
4.34%
1HHydrogenHydrogen1401.008141.120
1.91%
11NaSodiumSodium322.99068.970
0.93%
Total7397.655100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • K

Synonyms

  • Boggsiet
  • IMA1989-009

In other languages

German
Boggsit · IMA 1989-009
Italian
boggsite · IMA1989-009
Chinese
博干沸石

Classification

Strunz
10th ed.

9.GC.30

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GCChains of doubly-connected 4-membered ringsGroup
  • 9.GC.30BoggsiteSpecies
Dana
8th ed.

77.01.06.07

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.06Mordenite and related speciesGroup
  • 77.01.06.07BoggsiteSpecies
CIM

16.10.9

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.10Aluminosilicates of Ca and alkalisGroup
  • 16.10.9BoggsiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1990Pluth, Joseph J., Smith, Joseph V. (1990) Crystal structure of boggsite, a new high-silica zeolite with the first three-dimensional channel system bounded by both 12- and 10-rings. American Mineralogist, 75 (5-6) 501-507
  2. 1990Howard, Donald G., Tschernich, Rudy W., Smith, Joseph V., Klein, Gerald L. (1990) Boggsite, a new high-silica zeolite from Goble, Columbia County, Oregon. American Mineralogist, 75 (9-10) 1200-1204
  3. 1992Tschernich, Rudy W. (1992) Zeolites of the World. Geoscience Press, Inc. 567pp.
  4. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  5. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
