Bosiite

NaFe3+3(Al4Mg2)(Si6O18)(BO3)3(OH)3O
IMA status
  • Approved
IMA symbol
Bos
IMA approved
2015
Also known as
  • Bosiiet
  • IMA2014-094

Where it forms, where it's found

Geological setting

hydrothermal (within gold-bearing quartz-vein related to the Amudzhikan–Sretensky subvolcanic K-rich granodiorite-porphyry intrusion), first tourmaline generation at the site

Type locality
Darasun mine
  1. Vershino-Darasunskiy
  2. Tungokochensky District
  3. Zabaykalsky Krai
  4. Russia

52.3400°, 115.4897°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond

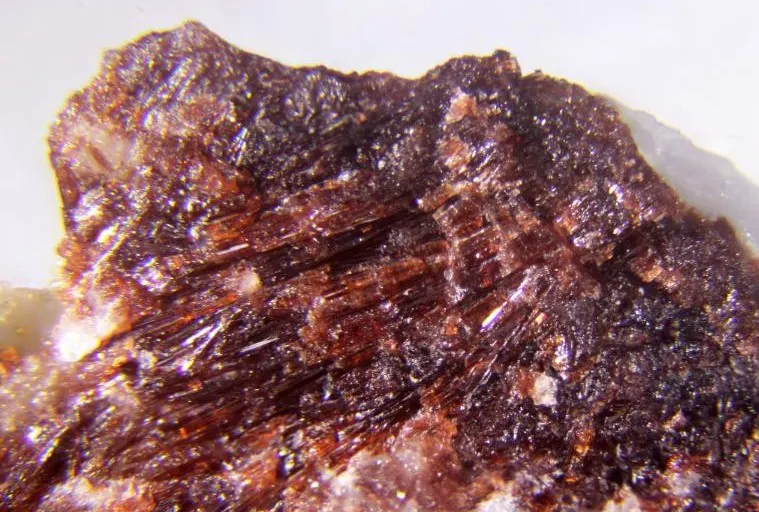

Colour
Dark brown to black
Streak
Pale brown
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.23 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.687 – 1.76
Surface relief
High
Principal indices
nω 1.760 · nε 1.687
Pleochroism
Visible

yellow-brown (O), red-brown (E)

UV response
None.
Michel-Lévy diagramhighlighted lineδ = 0.0730
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]730 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation730 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#86
Cell parameters
a = 16.101(3) Å · c = 7.327(2) Å
Unit cell volume
1645 ų
Z
3
Parting
not present
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3115.999495.969
47.37%
14SiSiliconSilicon628.085168.510
16.09%
26FeIronIron355.845167.535
16.00%
13AlAluminiumAluminium426.982107.928
10.31%
12MgMagnesiumMagnesium224.30548.610
4.64%
5BBoronBoron310.81032.430
3.10%
11NaSodiumSodium122.99022.990
2.20%
1HHydrogenHydrogen31.0083.024
0.29%
Total1046.996100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca
  • Fe(II)

Synonyms

  • Bosiiet
  • IMA2014-094

In other languages

German
Bosiit · IMA 2014-094
Italian
bosiite

Classification

Strunz
10th ed.

9.CK

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CK[Si6O18]12- 6-membered single rings, with insular complex anionsGroup
  • 9.CKBosiiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter No 24. Mineralogical Magazine, 79 (2) 247-251 doi:10.1180/minmag.2015.079.2.03DOI: 10.1180/minmag.2015.079.2.03
  2. 2016Ertl, Andreas, Baksheev, Ivan A., Giester, Gerald, Lengauer, Christian L., Yu. Prokofiev, Vsevolod, Zorina, Lidiya D. (2016) Bosiite, NaFe3+ 3(Al4Mg2)(Si6O18)(BO3)3(OH)3O, a new ferric member of the tourmaline supergroup from the Darasun gold deposit, Transbaikalia, Russia. European Journal of Mineralogy, 28 (3) 581-591 doi:10.1127/ejm/2016/0028-2540DOI: 10.1127/ejm/2016/0028-2540
  3. 2017(2017) Bosiite. Handbook of Mineralogy. Mineralogical Society of America
