Cabalzarite

CaMg2(AsO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Clz
IMA approved
1997
Also known as
  • Cabalzariet
  • IMA1997-012

Where it forms, where it's found

Geological setting

Manganese deposit restricted to a 1 <f>m#2</f> outcrop in the Falotta mine,

Type locality
Falotta
  1. Tinizong (Tinzen)
  2. Surses
  3. Albula Region
  4. Grisons
  5. Switzerland

46.5533°, 9.6469°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Light brownish to salmon-pink or orange-brown.
Streak
White
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.89 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.7 – 1.76
Surface relief
High
Principal indices
nα 1.7 · nγ 1.76
Pleochroism
Non-pleochroic
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 8.925(2) Å · b = 6.143(1) Å · c = 7.352(1) Å
Cell angles
β = 115.25(3) °
Ratio a:b:c
1 : 0.688 : 0.824
Z
2
Type-locality form

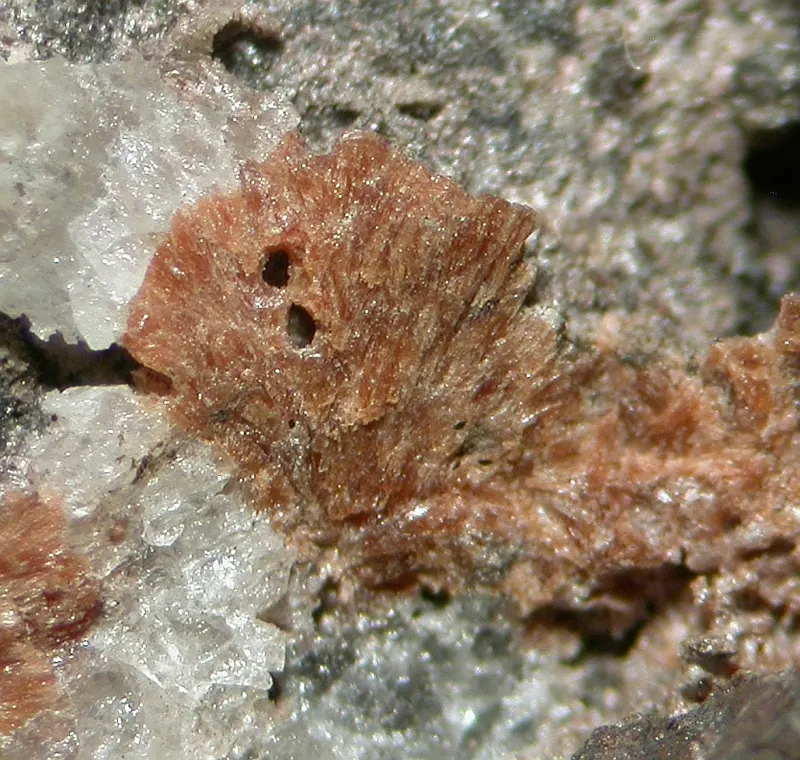

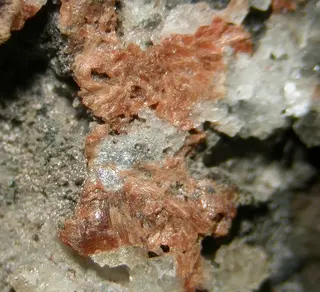

Isolated crystals (to 1 mm), complex polycrystalline aggregates, (to 2 mm), fibrous to tabular crystals forming radiating aggregates (to 5 mm), and aggregates of parallel needles filling veinlets.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
39.74%
33AsArsenicArsenic274.922149.844
37.22%
12MgMagnesiumMagnesium224.30548.610
12.08%
20CaCalciumCalcium140.07840.078
9.96%
1HHydrogenHydrogen41.0084.032
1.00%
Total402.554100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe

Synonyms

  • Cabalzariet
  • IMA1997-012

In other languages

French
cabalzarite
German
Cabalzarit · IMA 1997-012
Italian
Cabalzarite
Chinese
砷铁镁铝钙石

Classification

Strunz
10th ed.

8.CG.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.15CabalzariteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2000Brugger, Joël, Meisser, Nicolas, Schenk, Kurt, Berlepsch, Peter, Bonin, Michel, Armbruster, Thomas, Nyfeler, Daniel, Schmidt, Susanne (2000) Description and crystal structure of cabalzarite Ca(Mg,Al,Fe)2(AsO4)2(H2O,OH)2, a new mineral of the tsumcorite group. American Mineralogist, 85 (9) 1307-1314 doi:10.2138/am-2000-8-925 DOI: 10.2138/am-2000-8-925
  2. 2021(2021) Cabalzarite. Handbook of Mineralogy. Mineralogical Society of America
