Lukrahnite

CaCuFe3+(AsO4)2(OH,H2O)2
IMA status
  • Approved
IMA symbol
Lkr
IMA approved
1999
Also known as
  • IMA1999-030
  • Lukrahniet

Where it forms, where it's found

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Subadamantine
Transparency
Transparent
Colour
yellow
Streak
light yellow
Tenacity
brittle
Cleavage
None Observed
Density
4.18 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 30°
Refractive index
1.83 – 1.89
Surface relief
Very high
Principal indices
nα 1.83 · nβ 1.834 · nγ 1.89
Pleochroism
Visible

X=yellow Y=Z=pale yellow Orientation could not be determined

Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.457 Å · b = 5.539 Å · c = 7.399 Å
Cell angles
α = 68.43 ° · β = 68.9 ° · γ = 69.44 °
Ratio a:b:c
1 : 1.015 : 1.356
Unit cell volume
187.8 ų
Z
1
Twinning

None mentioned

Type-locality form

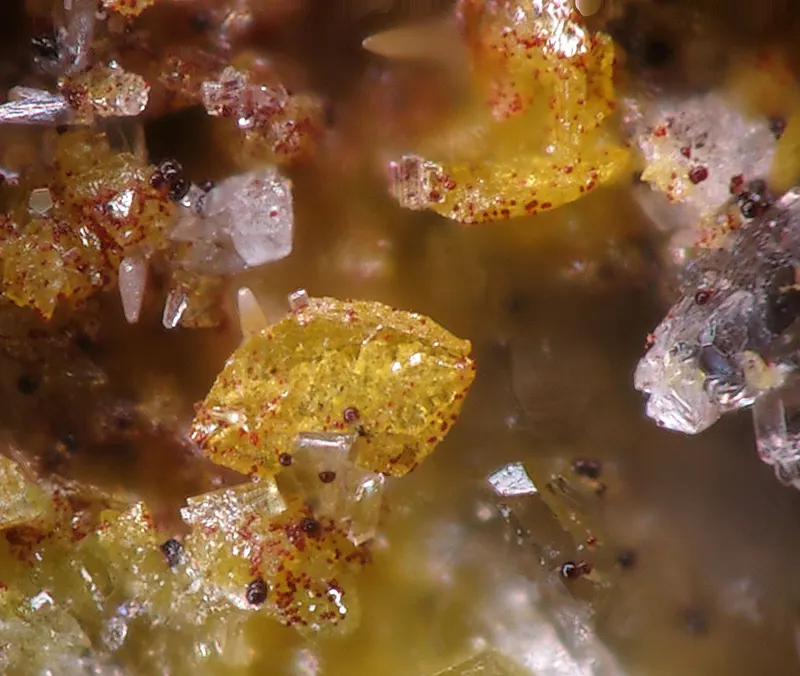

Spherical aggregates up to 0.5 mm; individual grains < 30 microns.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
37.84%
33AsArsenicArsenic274.922149.844
29.53%
29CuCopperCopper163.54663.546
12.53%
26FeIronIron155.84555.845
11.01%
20CaCalciumCalcium140.07840.078
7.90%
1HHydrogenHydrogen61.0086.048
1.19%
Total507.349100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1999-030
  • Lukrahniet

In other languages

German
IMA 1999-030 · Lukrahnit
Italian
Lukrahnite

Classification

Strunz
10th ed.

8.CG.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.20LukrahniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2001Krause, W., Blass, G., Bernhardt, H.-J., Effenberger, H. (2001) Lukrahnite, CaCuFe3+(AsO4)2[(H2O)(OH)], the calcium analogue of gartrellite. Neues Jahrbuch für Mineralogie - Monatshefte, 2001. 481-492
  2. 2002Jambor, J.L., Roberts, A.C. (2002) New mineral names. American Mineralogist: 87: 765-768.
  3. 2021(2021) Lukrahnite. Handbook of Mineralogy. Mineralogical Society of America
