Cobaltlotharmeyerite

CaCo2(AsO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Clmy
IMA approved
1997
Also known as
  • Cobaltlotharmeyeriet
  • IMA1997-027
  • Kobaltlotharmeyerit

Where it forms, where it's found

Type locality
Roter Berg mining district
  1. Zschorlau
  2. Erzgebirgskreis
  3. Saxony
  4. Germany

50.5537°, 12.6204°

9recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Adamantine
Transparency
Translucent
Colour
Light brown to reddish brown
Streak
Light brown
Cleavage
None Observed
Density
4.13 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 48° · 2V calc = 46°
Refractive index
1.78 – 1.85
Surface relief
Very high
Principal indices
nα 1.78 · nβ 1.79 · nγ 1.85
Pleochroism
Strong

X = yellow; Y = brown; Z = pale yellow.

Dispersion
r > v distinct
Extinction
Y = b; X ∧ c = 10° (in the obtuse of β).
UV response
Not fluorescent.
Notes

α calculated. Absorption: Y > X > Z.

Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.024(1) Å · b = 6.230(1) Å · c = 7.421(1) Å
Cell angles
β = 115.15(1) °
Ratio a:b:c
1 : 0.690 : 0.822
Z
2
Morphology

Tabular on (101), elongate parallel to [010], and showing a lance-like termination at an angle of ~80°.

Type-locality form

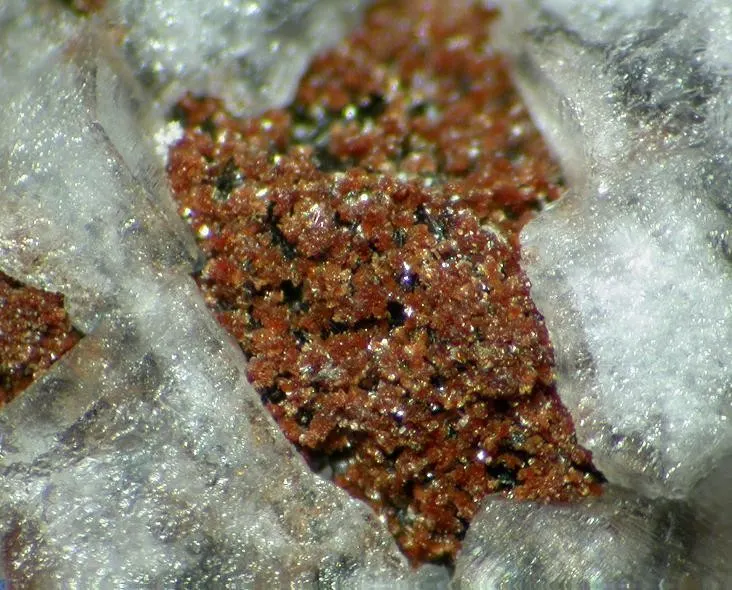

Fan-shaped aggregates and crusts on quartz. Thin-tabular, bladed crystals to 0.1 mm, elongated on [010].

Comment

Data for type material.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
33.91%
33AsArsenicArsenic274.922149.844
31.76%
27CoCobaltCobalt258.933117.866
24.98%
20CaCalciumCalcium140.07840.078
8.49%
1HHydrogenHydrogen41.0084.032
0.86%
Total471.810100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cobaltlotharmeyeriet
  • IMA1997-027
  • Kobaltlotharmeyerit

In other languages

German
Cobaltlotharmeyerit · IMA 1997-027
Italian
Cobaltlotharmeyerite · Cobaltolotharmeyerite

Classification

Strunz
10th ed.

8.CG.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.15CobaltlotharmeyeriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1999Krause, W., Effenberger, H., Bernhardt, H.-J., Martin, M. (1999) Cobaltlotharmeyerite, Ca(Co,Fe,Ni)2(AsO4)2(OH,H2O)2, a new mineral. Neues Jahrbuch für Mineralogie - Monatshefte, 1999. 505-517
  2. 2000Sarp, H. and Favreau, G. (2000): Seconde occurrence du nouveau minéral cobaltlotharmeyerite Ca(Co,Fe,Ni)2(AsO4)2(OH,H2O)2. Arch. Sci. Genève 53(1), 49-54. (in French).
  3. 2021(2021) Cobaltlotharmeyerite. Handbook of Mineralogy. Mineralogical Society of America
