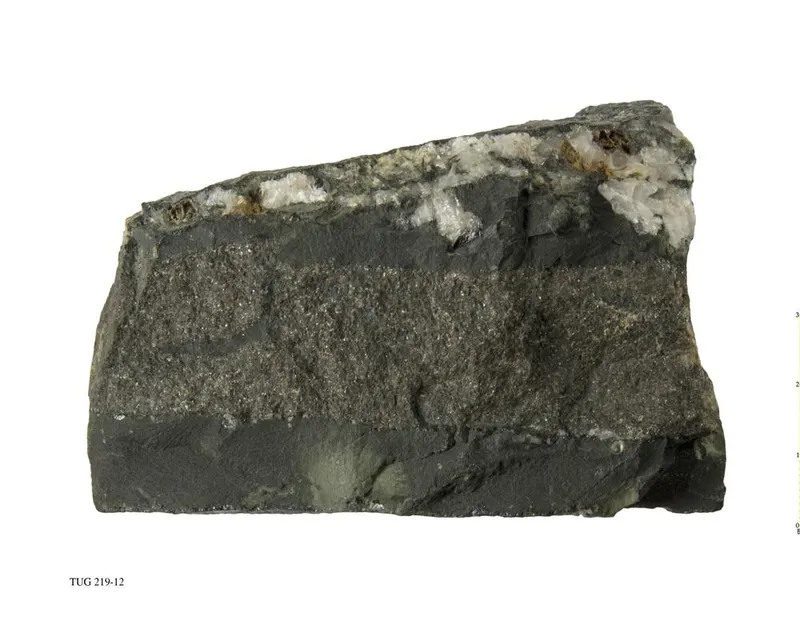

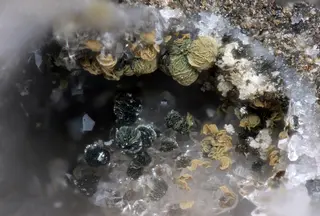

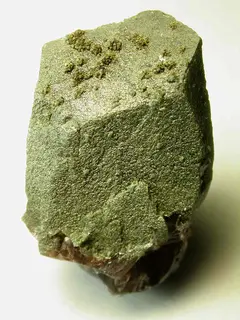

Chamosite

(Fe2+,Mg,Al,Fe3+)6(Si,Al)4O10(OH,O)8
IMA status
  • Approved
  • Grandfathered
IMA symbol
Chm
Discovered
1820
Also known as
  • Aphrosiderite
  • Chamoisite

Where it forms, where it's found

Type locality
Haut de Cry
  1. Chamoson
  2. Conthey
  3. Valais
  4. Switzerland

46.2252°, 7.1790°

723recorded occurrences
Source · OpenStreetMap

Varieties

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Green · grey-green · brown-green · dark green · black
Streak
Green to gray.
Tenacity
flexible
Cleavage
Perfect

(001)

Density
3.0 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30°
Refractive index
1.595 – 1.685
Surface relief
Moderate
Principal indices
nα 1.595 – 1.671 · nβ 1.599 – 1.684 · nγ 1.599 – 1.685
Pleochroism
Weak

X = yellow-green to light brownish green; Y = Z = green to dark green

Dispersion
r < v weak to strong
Notes

Data from Handbook of Minerals

Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 5.373 Å · b = 9.306 Å · c = 14.222 Å
Cell angles
β = 97.88 °
Ratio a:b:c
1 : 1.732 : 2.647
Z
2
Morphology

In scaly aggregates, foliated or granular; oolitic, made up of very minute radiating crystals; massive. May replace biotite.

Twinning

Twin and composition plane (001), axis [310].

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron1255.845670.140
41.31%
8OOxygenOxygen2615.999415.974
25.64%
13AlAluminiumAluminium1026.982269.820
16.63%
12MgMagnesiumMagnesium624.305145.830
8.99%
14SiSiliconSilicon428.085112.340
6.93%
1HHydrogenHydrogen81.0088.064
0.50%
Total1622.168100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Mn
  • Cr
  • Ca
  • Na
  • K
  • O

Synonyms

  • Aphrosiderite
  • Chamoisite

In other languages

French
Brunsvigite · Chamosite · Delessite
German
Chamoisit · Chamosit
Spanish
Chamosita
Italian
Chamosite
Japanese
シャモス石
Chinese
鮞綠泥石 · 鲕绿泥石
Simplified Chinese
鲕绿泥石
Traditional Chinese
鮞綠泥石
Russian
шамозит

Classification

Strunz
10th ed.

9.EC.55

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.55ChamositeSpecies
Dana
8th ed.

71.04.01.07

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.04Sheets of 6-membered rings interlayered 1:1, 2:1, and octahedraType
  • 71.04.01Chlorite group (Tri-Dioctahedral)Group
  • 71.04.01.07ChamositeSpecies
CIM

16.19.13

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.19Aluminosilicates of Fe and MgGroup
  • 16.19.13ChamositeSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1820Berthier, M. P. (1820) Sur la nature du minerai de fer magnétique de Chamoison (Valais). Annales des Mines 5, 393-396.
  2. 1939Hallimond, A. F. (1939) On the relation of chamosite and daphnite to the chlorite group. Mineralogical Magazine and Journal of the Mineralogical Society, 25 (167). 441-465 doi:10.1180/minmag.1939.025.167.02 DOI: 10.1180/minmag.1939.025.167.02
  3. 1942Engelhardt, Wolf v. (1942) Die Strukturen von Thuringit, Bavalit und Chamosit und ihre Stellung in der Chloritgruppe. Zeitschrift für Kristallographie, 104 (1-6). 142-159 doi:10.1524/zkri.1942.104.1.142 DOI: 10.1524/zkri.1942.104.1.142
  4. 1949BRINDLEY, G. W. (1949) Mineralogy and Crystal Structure of Chamosite. Nature, 164 (4164). 319-320 doi:10.1038/164319b0DOI: 10.1038/164319b0
  5. 1951Brindley, G. W.; Dunham, K. C.; Eyles, V. A.; Taylor, J. H. (1951) The crystal structure of some chamosite minerals. Mineralogical Magazine and Journal of the Mineralogical Society, 29 (212). 502-525 doi:10.1180/minmag.1951.029.212.04 DOI: 10.1180/minmag.1951.029.212.04
