Gonyerite

Mn2+5Fe3+(Si3Fe3+O10)(OH)8
IMA status
  • Approved
  • Grandfathered
IMA symbol
Gye
Discovered
1955

Where it forms, where it's found

Geological setting

Hydrothermal veinlets in skarn.

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Deep brown with reddish internal reflections
Streak
Milk-chocolate brown
Tenacity
flexible
Cleavage
Perfect

(001)

Density
3.01 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.646 – 1.664
Surface relief
High
Principal indices
nα 1.646 · nβ 1.664 · nγ 1.664
Pleochroism
Visible

X = dark brown; Z = light brown

Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 5.47 Å · b = 9.46 Å · c = 28.8 Å
Ratio a:b:c
1 : 1.729 : 5.265
Z
4
Type-locality form

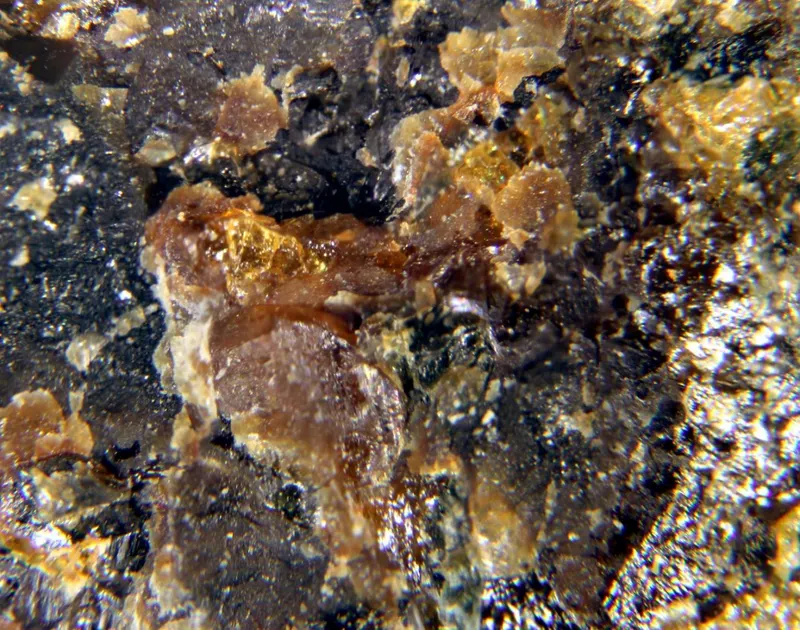

Rounded radial aggregates of laths and plates up to several millimeters in length.

Comment

Orthorhombic, pseudohexagonal. Point Group: n.d.; Space Group: n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
37.56%
25MnManganeseManganese554.938274.690
35.83%
26FeIronIron255.845111.690
14.57%
14SiSiliconSilicon328.08584.255
10.99%
1HHydrogenHydrogen81.0088.064
1.05%
Total766.681100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Al
  • Zn
  • Pb
  • Ca
  • F
  • Cl

In other languages

French
Gonyérite
German
Gonyerit
Italian
Gonyerite

Classification

Strunz
10th ed.

9.EC.55

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.55GonyeriteSpecies
Dana
8th ed.

71.04.04.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.04Sheets of 6-membered rings interlayered 1:1, 2:1, and octahedraType
  • 71.04.04— unnamed intermediate level —Group
  • 71.04.04.01GonyeriteSpecies
CIM

14.18.10

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.10GonyeriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1955Frondel, Clifford (1955) Two chlorites: gonyerite and melanolite. American Mineralogist, 40 (11-12) 1090-1094
  2. 1969Welin, E. (1969) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden. Arkiv för Mineralogi och Geologi, 4 (6, nr 30). 499-541
  3. 2001(2001) Gonyerite. Handbook of Mineralogy. Mineralogical Society of America
