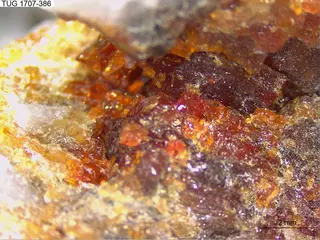

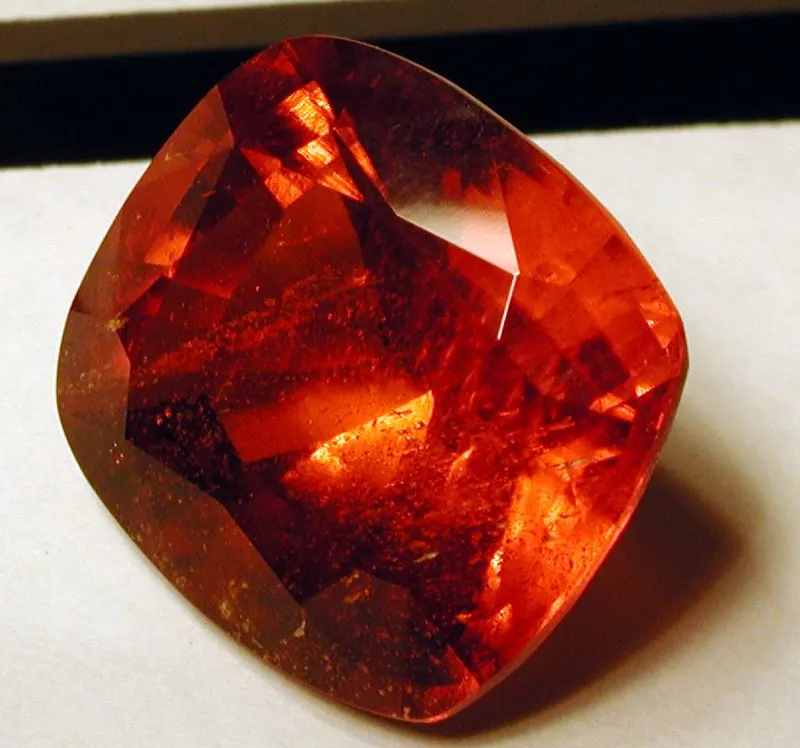

Clinohumite

Mg9(SiO4)4F2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Chu
Discovered
1876
Also known as
  • Clinohumit

Where it forms, where it's found

Type locality
Mount Somma
  1. Metropolitan City of Naples
  2. Campania
  3. Italy
233recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
White · yellow to brown with increasing Ti · orange · pinkish
Cleavage
Poor/Indistinct

Cleavage on (100).

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.17 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 52 – 90° · 2V calc = 64 – 88°
Refractive index
1.623 – 1.728
Surface relief
High
Principal indices
nα 1.623 – 1.702 · nβ 1.636 – 1.709 · nγ 1.651 – 1.728
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 13.71 Å · b = 4.75 Å · c = 10.29 Å
Cell angles
β = 100.83 °
Ratio a:b:c
1 : 0.346 : 0.751
Twinning

Common on (100), simple, lamellar.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
40.95%
12MgMagnesiumMagnesium924.305218.745
35.00%
14SiSiliconSilicon428.085112.340
17.97%
9FFluorineFluorine218.99837.996
6.08%
Total625.065100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Ti
  • Al
  • Mn
  • Ca
  • (OH)

Synonyms

  • Clinohumit

In other languages

French
Clinohumite
German
Klinohumit
Spanish
Clinohumita
Italian
Clinohumite
Japanese
単斜ヒューム石
Chinese
斜硅镁石

Classification

Strunz
10th ed.

9.AF.55

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.55ClinohumiteSpecies
Dana
8th ed.

52.03.2d.01

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2d— unnamed intermediate level —Group
  • 52.03.2d.01ClinohumiteSpecies
CIM

17.1.12

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.12ClinohumiteSpecies

Group, growth & confusion

In the same group
5 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1876Des Cloizeaux, A.L.O.L. (1876) Über den humit; nur der I. Typus ist rhombisch, die beiden andern sind monoklin, doch mit verschiedenen grundformen. Neues Jahrbuch für Mineralogie, Geologie und Palaontologie, 1876, 640-645.
  2. 1894Penfield, S.L., Howe, W.T.H. (1894) ART. XVIII.--On the Chemical Composition of Chondrodite, Humite and Clinohumite. American Journal of Science, 47(279), 188.
  3. 1973Robinson, Keith, Gibbs, G. V., Ribbe, and Paul H. (1973) The crystal structures of the humite minerals. IV. Clinohumite and titanoclinohumite. American Mineralogist, 58 (1-2) 43-49
  4. 1999Gekimyants, V.M., Sokolova, E.V., Spiridonov, E.M., Ferraris, G., Chukanov, N.V., Prencipe, M., Avdonin, V.N., Polenov, Yu.A. (1999): Hydroxylclinohumite Mg9(SiO4)4(OH,F)2 - a new mineral of the humite group. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva, 128(5), 64-70.
  5. 2000Ferraris, Giovanni, Prencipe, M., Sokolova, E., Gekimyants, V.M., Spiridonov, E.M. (2000) Hydroxylclinohumite, a new member of the humite group: Twinning, crystal structure and crystal chemistry of the clinohumite subgroup. Zeitschrift für Kristallographie - Crystalline Materials, 215 (3). 169-173 doi:10.1524/zkri.2000.215.3.169DOI: 10.1524/zkri.2000.215.3.169
