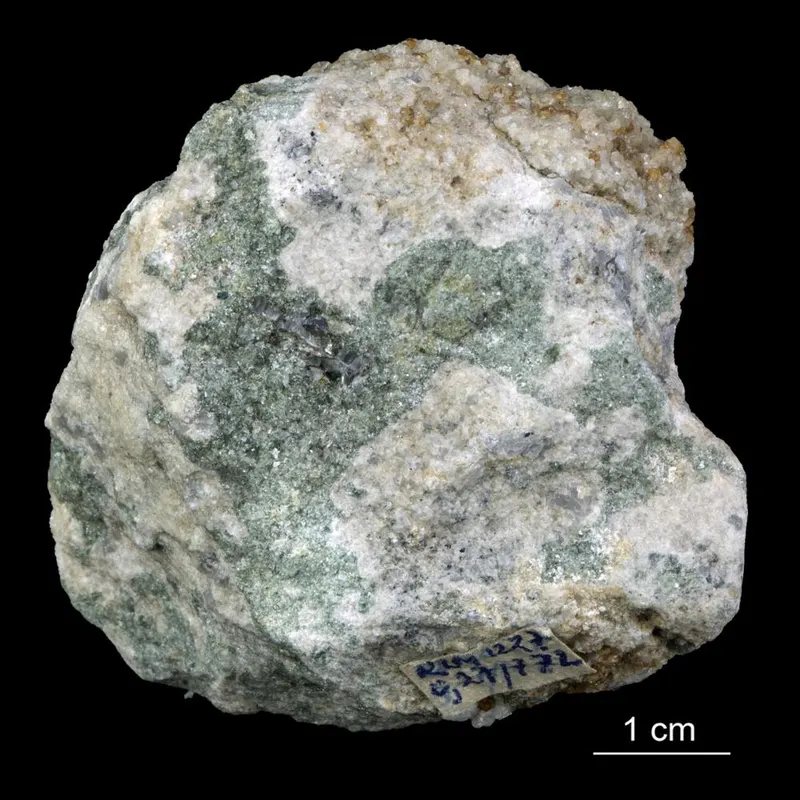

Humite

Mg7(SiO4)3F2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hu
Discovered
1813
Also known as
  • Umit
  • Umita
  • Umite

Where it forms, where it's found

Type locality
Mount Somma
  1. Metropolitan City of Naples
  2. Campania
  3. Italy
107recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
White · yellow · dark orange or brown.
Streak
White
Tenacity
brittle
Cleavage
Poor/Indistinct

Poor on (100)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.20 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 68 – 81° · 2V calc = 70 – 78°
Refractive index
1.607 – 1.675
Surface relief
Moderate
Principal indices
nα 1.607 – 1.643 · nβ 1.619 – 1.653 · nγ 1.639 – 1.675
Birefringence
0.032
Pleochroism
Non-pleochroic
Dispersion
weak
Extinction
Parallel
UV response
Sometimes fluoresces weak pale-yellow in SW. May be confused with norbergite or chondrodite that may have a bright fluorescent response, but chondrodite does not always fluoresce.
Michel-Lévy diagramhighlighted lineδ = 0.0320
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]320 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation320 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnma
Cell parameters
a = 4.7408(1) Å · b = 10.2580(2) Å · c = 20.8526(4) Å
Ratio a:b:c
1 : 2.164 : 4.399
Z
4
Comment

Non-standard space-group setting Pbnm, data from Ribbe & Gibbs (1971).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
39.64%
12MgMagnesiumMagnesium724.305170.135
35.13%
14SiSiliconSilicon328.08584.255
17.39%
9FFluorineFluorine218.99837.996
7.84%
Total484.374100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mn
  • Ca

Synonyms

  • Umit
  • Umita
  • Umite

In other languages

French
humite
German
Humit
Spanish
humita · umita
Italian
humite
Japanese
ヒューム石
Chinese
矽鎂石
Russian
Гумит
Arabic
فحم دبالي · هيوميت

Classification

Strunz
10th ed.

9.AF.50

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.50HumiteSpecies
Dana
8th ed.

52.03.2c.01

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2c— unnamed intermediate level —Group
  • 52.03.2c.01HumiteSpecies
CIM

17.1.11

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.11HumiteSpecies

Group, growth & confusion

In the same group
5 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1813Bournon, J.L. (1813) Humite. in Catalogue de la Collection Minéralogique du Compte de Bournon, De l'imprimetie de R. Juigné (London), 52-54.
  2. 1817Bournon, J.L. (1817) Humite. in Catalogue de la Collection Minéralogique Particulière du Roi, De l'Imprimerie d'Abel Lanoe (Paris), 52-54.
  3. 1838Lévy, Armand (1838) Description d'une collection de minéraux, formée par m. Henri Heuland, et appartenant à m. C.H. Hampden Turner, de Rooksnest, dans le comté de Surrey en Angleterre. Tome Deuxiéme Vol. 2. F. Richter et Haas.
  4. 1971Ribbe, P. H., Gibbs, G. V. (1971) Crystal structures of the humite minerals: III. Mg /Fe ordering in humite and its relation to other ferromagnesian silicates. American Mineralogist, 56 (5-6) 1155-1173
  5. 1995Wunder, Bernd; Medenbach, Olaf; Daniels, Peter; Schreyer, Werner (1995) First synthesis of the hydroxyl end–member of humite. American Mineralogist, 80 (5-6). 638-640
