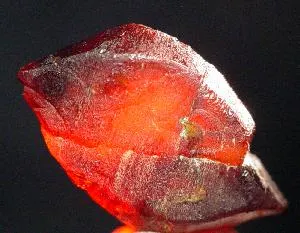

Hydroxylclinohumite

Mg9(SiO4)4(OH)2
IMA status
  • Approved
IMA symbol
Hchu
IMA approved
1998
Also known as
  • Clinohumite-OH
  • Hydroxylclinohumiet
  • Hydroxylclinohumit
  • +2 more

Where it forms, where it's found

Geological setting

In Mg-skarn (calciphyric) rims around dolomitic marble xenoliths in gabbroic rocks.

Type locality
Zelentsovskaya Pit
  1. Kusinsk Fe-Ti-V-deposit
  2. Zlatoust
  3. Chelyabinsk Oblast
  4. Russia
29recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous to dull
Transparency
Transparent · Translucent
Colour
Pale yellow to orange-yellow · almost colourless.
Streak
White
Cleavage
None Observed

None

Fracture
Irregular/Uneven · Conchoidal
Density
3.13 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 68°
Refractive index
1.631 – 1.664
Surface relief
Moderate
Principal indices
nα 1.631 · nβ 1.641 · nγ 1.664
Pleochroism
Visible

X = yellow, Z = colorless.

Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0330
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]330 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation330 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 13.6894(3) Å · b = 4.748(1) Å · c = 10.273(2) Å
Cell angles
β = 100.63 °
Ratio a:b:c
1 : 0.347 : 0.750
Unit cell volume
656.06 ų
Z
2
Twinning

[Not reported, but clinohumite showns twinning on (100).]

Type-locality form

Oval, elongate grains to 3 mm in diameter, and as aggregates to 2 cm associated with spinel as inclusions in calcite. Without crystal faces.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
46.37%
12MgMagnesiumMagnesium924.305218.745
35.22%
14SiSiliconSilicon428.085112.340
18.09%
1HHydrogenHydrogen21.0082.016
0.32%
Total621.083100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Clinohumite-OH
  • Hydroxylclinohumiet
  • Hydroxylclinohumit
  • Hydroxylclinohumita
  • IMA1998-065

In other languages

German
Hydroxylklinohumit · IMA 1998-065
Spanish
Hidroxilclinohumita
Italian
Hydroxylclinohumite · Idrossilclinohumite

Classification

Strunz
10th ed.

9.AF.55

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.55HydroxylclinohumiteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 1919Zambonini, Ferruccio (1919) Sur la véritable nature du titanolivine de la vallée d'Ala (Piémont) Bulletin de Minéralogie, 42 (5) 250-279 doi:10.3406/bulmi.1919.3732DOI: 10.3406/bulmi.1919.3732
  2. 1973Robinson, Keith, Gibbs, G. V., Ribbe, and Paul H. (1973) The crystal structures of the humite minerals. IV. Clinohumite and titanoclinohumite. American Mineralogist, 58 (1-2) 43-49
  3. 1999Gekimyants, V.M., Sokolova, E.V., Spiridonov, E.M., Ferraris, G., Chukanov, N.V., Prencipe, M., Avdonin, V.N., Polenov, Yu.A. (1999): Hydroxylclinohumite Mg9(SiO4)4(OH,F)2 - a new mineral of the humite group. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva, 128(5), 64-70.
  4. 2000Ferraris, Giovanni, Prencipe, M., Sokolova, E., Gekimyants, V.M., Spiridonov, E.M. (2000) Hydroxylclinohumite, a new member of the humite group: Twinning, crystal structure and crystal chemistry of the clinohumite subgroup. Zeitschrift für Kristallographie - Crystalline Materials, 215 (3). 169-173 doi:10.1524/zkri.2000.215.3.169DOI: 10.1524/zkri.2000.215.3.169
  5. 2000Ottolini, Luisa, Cámara, Fernando, Bigi, Simona (2000) An investigation of matrix effects in the analysis of fluorine in humite-group minerals by EMPA, SIMS, and SREF. American Mineralogist, 85 (1) 89-102 doi:10.2138/am-2000-0110 DOI: 10.2138/am-2000-0110
