Norbergite

Mg3(SiO4)F2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Nrb
Discovered
1926
Also known as
  • Grothine
  • Norbergiet

Where it forms, where it's found

Geological setting

High grade carbonate rocks with a high Mg/Si ratio and F content.

Type locality
Östanmossa mine
  1. Röberg ore field
  2. Norberg
  3. Västmanland County
  4. Sweden

60.0833°, 15.9333°

40recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Orange-yellow · yellow · orange to brown.
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.177 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 44 – 50°
Refractive index
1.563 – 1.593
Surface relief
Moderate
Principal indices
nα 1.563 – 1.567 · nβ 1.567 – 1.579 · nγ 1.590 – 1.593
Birefringence
0.027
Dispersion
r>v, slight to strong
UV response

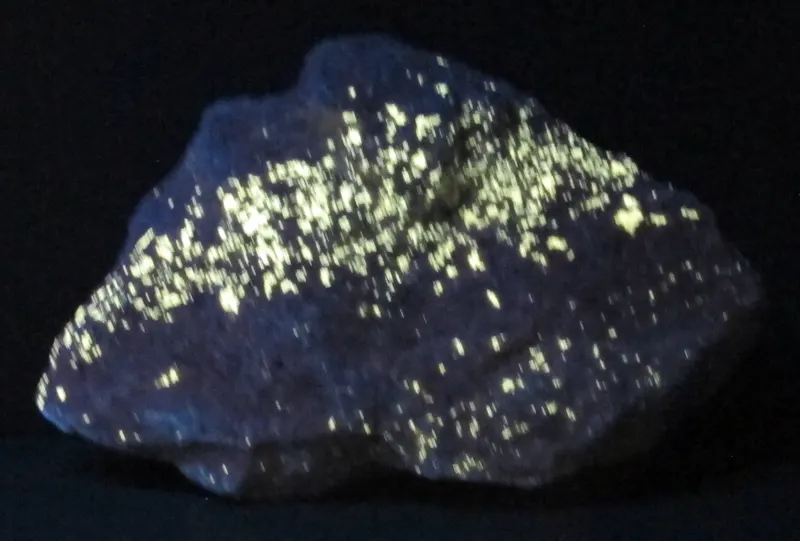

May fluoresce bright to weak yellow to pale yellow in SW; less bright in mid-wave UV, not fluorescent in long wave.
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 8.747(6) Å · b = 4.710(4) Å · c = 10.271(8) Å
Ratio a:b:c
1 : 0.538 : 1.174
Z
4
Comment

Space-group Pmcn (non-standard setting); data for synthetic material

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
12MgMagnesiumMagnesium324.30572.915
35.92%
8OOxygenOxygen415.99963.996
31.53%
9FFluorineFluorine218.99837.996
18.72%
14SiSiliconSilicon128.08528.085
13.83%
Total202.992100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mn
  • Zn
  • Ca
  • H2O

Synonyms

  • Grothine
  • Norbergiet

In other languages

French
Norbergite
German
Norbergit
Italian
Norbergite
Japanese
ノルベルグ石
Chinese
块硅镁石 · 塊矽鎂石
Simplified Chinese
块硅镁石
Traditional Chinese
块矽镁石 · 塊矽鎂石

Classification

Strunz
10th ed.

9.AF.40

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.40NorbergiteSpecies
Dana
8th ed.

52.03.2a.01

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2a— unnamed intermediate level —Group
  • 52.03.2a.01NorbergiteSpecies
CIM

17.1.9

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.9NorbergiteSpecies

Group, growth & confusion

In the same group
5 members
Often grow together
7 minerals

Literature, links & citation

Citations
  1. 1926Geijer, Per (1926) Norbergite and Fluoborite, two new minerals from the Norberg mining district. Geologiska Föreningen i Stockholm Förhandlingar, 48 (1). 84-85 doi:10.1080/11035892609445642DOI: 10.1080/11035892609445642
  2. 1927Foshag, W.F. (1927) New Mineral Names. American Mineralogist, 12 (6). 265-266
  3. 1928Larsen, Esper S., Bauer, Lawson H., Berman, Harry (1928) Norbergite from Franklin, New Jersey. American Mineralogist, 13. 349-353
  4. 1938Strunz, H. (1938) Isotypie zwischen Skorodit und Norbergit Fe[AsO4/(Η2Ο)2] und Mg3[SiO4/(OH,F)2]. Zeitschrift für Kristallographie, Mineralogie und Petrographie, 99 (1-6). 513-514 doi:10.1524/zkri.1938.99.1.513DOI: 10.1524/zkri.1938.99.1.513
  5. 1947Rankama, K. (1947) Synthesis of norbergite and chondrodite by direct dry fusion. American Mineralogist: 32(3-4): 146–157.
