Cobaltaustinite

CaCo(AsO4)(OH)
IMA status
  • Approved
IMA symbol
Caus
IMA approved
1987
Also known as
  • Cobaltaustiniet
  • IMA1987-042
  • Kobaltaustinit

Where it forms, where it's found

Geological setting

Oxidised zone in the Dome Rock copper deposit, as alteration product of arsenides.

Type locality
Dome Rock Copper Mine
  1. Boolcoomatta Reserve (Boolcoomata Station)
  2. Pastoral Unincorporated Area
  3. South Australia
  4. Australia

-31.9017°, 140.4606°

11recorded occurrences
Source · OpenStreetMap

Varieties

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dull green
Streak
Light green
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
4.24 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.777 – 1.802
Surface relief
High
Principal indices
nα 1.777 · nγ 1.802
Birefringence
0.024
Pleochroism
Non-pleochroic
Dispersion
r > v slight
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
P21 21 21
Cell parameters
a = 7.498 Å · b = 9.01 Å · c = 5.92 Å
Ratio a:b:c
1 : 1.202 : 0.790
Z
4
Type-locality form

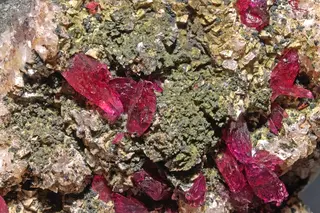

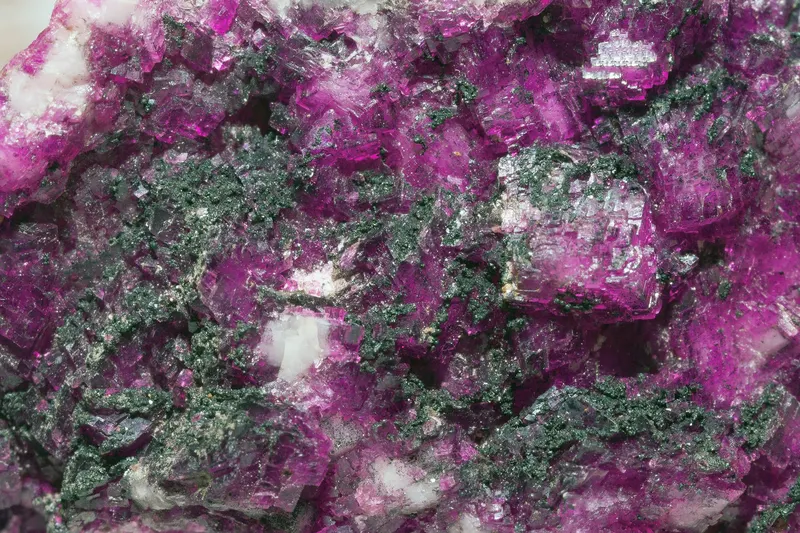

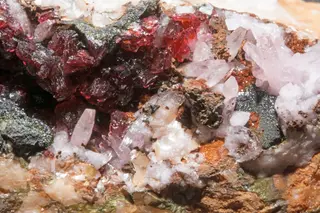

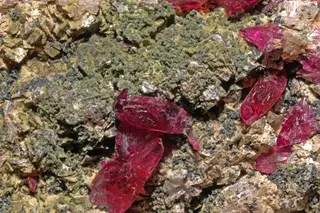

Dull green coatings of crystallites up to 25 µm in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
31.38%
33AsArsenicArsenic174.92274.922
29.39%
27CoCobaltCobalt158.93358.933
23.12%
20CaCalciumCalcium140.07840.078
15.72%
1HHydrogenHydrogen11.0081.008
0.39%
Total254.936100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cobaltaustiniet
  • IMA1987-042
  • Kobaltaustinit

In other languages

German
Cobaltaustinit · IMA 1987-042
Italian
Cobaltaustinite
Portuguese
Cobaltaustinita · IMA1987-042
Chinese
砷钴钙石

Classification

Strunz
10th ed.

8.BH.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.35CobaltaustiniteSpecies
Dana
8th ed.

41.05.01.08

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.05(AB)2(XO4)ZqType
  • 41.05.01Adelite GroupGroup
  • 41.05.01.08CobaltaustiniteSpecies
CIM

20.10.2

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.10Arsenates of Co and NiGroup
  • 20.10.2CobaltaustiniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1988Nickel, E.H., Birch, W.D. (1988) Cobaltaustinite - a new arsenate mineral from Dome Rock, South Australia. Australian Mineralogist, 3, 53-57.
  2. 1989Jambor, John L., Puziewicz, Jacek (1989) New Mineral Names. American Mineralogist, 74 (3-4) 500-504
  3. 2002Effenberger, H., Krause, W., and Bernhardt, H.-J. (2002) Structural investigation of adelite and cobaltaustinite, two members of the Adelite-descloizite Group. EMPG IX, Ninth International Symposium on Experimental Mineralogy, Petrology and Geochemistry, Zürich, Switzerland, 24.-27.3, Book of Abstracts (2002), 30.
  4. 2003Martens, Wayde, Frost, Ray L., Williams, Peter A. (2003) Molecular structure of the adelite group of minerals - a Raman spectroscopic study. Journal of Raman Spectroscopy, 34 (2). 104-111 doi:10.1002/jrs.961DOI: 10.1002/jrs.961
  5. 2005(2005) Cobaltaustinite. Handbook of Mineralogy. Mineralogical Society of America
