Ferristrunzite

Fe3+Fe3+2(PO4)2(OH)3 · 5H2O
IMA status
  • Approved
IMA symbol
Fstz
Discovered
1986
IMA approved
1986
Also known as
  • Ferristrunziet
  • IMA1986-023

Where it forms, where it's found

Geological setting

Fracture filling in a sedimentary rock.

Granite pegmatites, sedimentary phosphate nodules.

Type locality
Mont-des-Groseillers
  1. Blaton
  2. Bernissart
  3. Hainaut
  4. Wallonia
  5. Belgium

50.4995°, 3.6398°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale yellow to creamy white · tan to very light brown
Streak
very pale yellow
Tenacity
brittle
Cleavage
Distinct/Good

One, probable, parallel X-Z

Fracture
Splintery
Density
2.38 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 77° · 2V calc = 78°
Refractive index
1.664 – 1.757
Surface relief
High
Principal indices
nα 1.664 · nβ 1.698 · nγ 1.757
Birefringence
0.093
Pleochroism
Visible

X = greenish-yellow, Z = brownish yellow

Dispersion
strong
Extinction
Z^c ~ 17°
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0930
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]930 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation930 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 10.012 Å · b = 9.732 Å · c = 7.334 Å
Cell angles
α = 90.50 ° · β = 96.99 ° · γ = 116.43 °
Ratio a:b:c
1 : 0.972 : 0.733
Z
2
Type-locality form

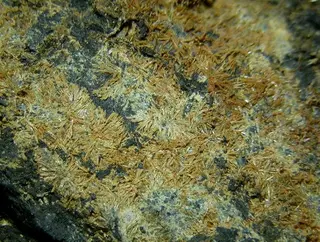

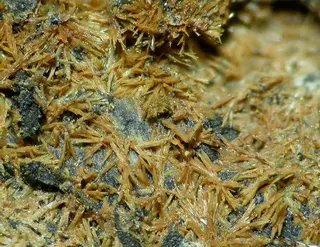

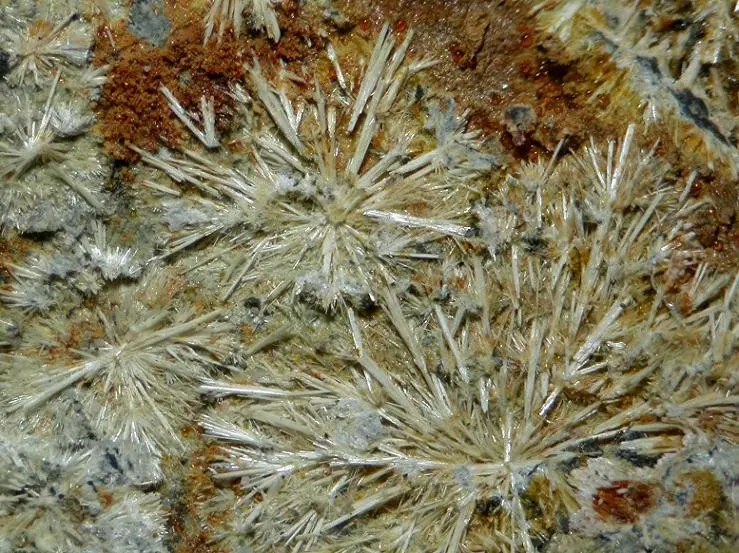

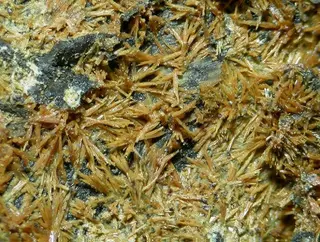

Tan radiating acicular crystals.

Comment

Point Group: 1 or _1; Space Group: P_1 or P1.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
51.34%
26FeIronIron355.845167.535
33.60%
15PPhosphorusPhosphorus230.97461.948
12.43%
1HHydrogenHydrogen131.00813.104
2.63%
Total498.571100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferristrunziet
  • IMA1986-023

In other languages

German
Ferristrunzit · IMA 1986-023
Italian
Ferristrunzite

Classification

Strunz
10th ed.

8.DC.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.25FerristrunziteSpecies
Dana
8th ed.

42.11.09.03

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.09Strunzite GroupGroup
  • 42.11.09.03FerristrunziteSpecies
CIM

19.13.8

  • 19PhosphatesClass
  • 19.13Phosphates of Fe aloneGroup
  • 19.13.8FerristrunziteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1987Peacor, D.R., Dunn, P.J., Simmons, W.B., Ramik, R.A. (1987) Ferristrunzite, a new member of the strunzite group, from Blaton, Belgium. Neues Jahrbuch für Mineralogie, Monatshefte 1987, Heft 10, 453-457.
  2. 1989Jambor, John L., Puziewicz, Jacek (1989) New Mineral Names. American Mineralogist, 74 (3-4) 500-504
  3. 1990Dillen, H., Van Goethem, L. (1990) Ferristrunzite. Bulletin van de Belgische Vereniging voor Geologie, 99(3-4), 399.
  4. 2002Frost, R.L., Martens, W.N., Kloprogge, T., Williams, P.A. (2002) Vibrational spectroscopy of the basic manganese and ferric phosphate minerals: strunzite, ferrostrunzite and ferristrunzite. Neues Jahrbuch für Mineralogie, Monatshefte, 2002, 481-496.
  5. 2004Frost, Ray L., Weier, Matt, Lyon, William G. (2004) Metavivianite an intermediate mineral phase between vivianite, and ferro/ferristrunzite – a Raman spectroscopic study. Neues Jahrbuch für Mineralogie - Monatshefte, 2004 (5) 228-240 doi:10.1127/0028-3649/2004/2004-0228DOI: 10.1127/0028-3649/2004/2004-0228
