Fluor-schorl

NaFe2+3Al6(Si6O18)(BO3)3(OH)3F
IMA status
  • Approved
IMA symbol
Fsrl
IMA approved
2011
Also known as
  • IMA2010-067
  • UM2006-13-SiO:AlBFFeHNa
  • Unnamed (F-analogue of Schorl)

Where it forms, where it's found

Geological setting

A pneumatolytic phase and in high-temperature hydrothermal veins in granitic pegmatites.

Type locality
Le Cave (Grasstein)
  1. Franzensfeste (Fortezza)
  2. Wipptal (Alta Vall'Isarco)
  3. South Tyrol
  4. Trentino-Alto Adige/Südtirol
  5. Italy

46.8197°, 11.5353°

31recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Black

Pale brownish to pale greyish-bluish when the diameter is below 0.3 mm

Streak
Bluish white
Tenacity
brittle
Cleavage
Poor/Indistinct

(0001)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
3.20 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.636 – 1.661
Surface relief
Moderate
Principal indices
nω 1.660 – 1.661 · nε 1.636 – 1.637
Pleochroism
Visible

Brown to grey-brown or blue (O), pale grey-brown or cream (E)

UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0240
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]240 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation240 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R3m
Cell parameters
a = 16.005(2) Å · c = 7.176(1) Å
Unit cell volume
1591.9 ų
Z
3
Morphology

Prismatic habit and shows the forms (120), (100) (usually not clearly differentiated because of strong striation parallel to the c axis), and rarely (101).

Twinning

Not observed

Parting
None
Type-locality form

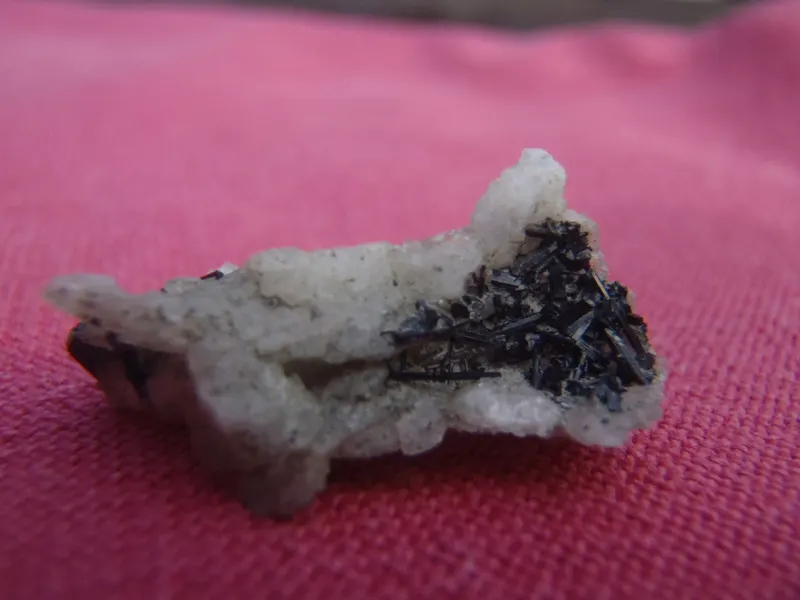

Striated prismatic crystals, up to ~1 x 10 mm, often radially arranged and found in small quartz veins intergrown with quartz and feldspar (Germany). Prismatic crystals, up to ~5 x 10 mm, intergrown with quartz and rarely grown on quartz crystals (Italy).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
45.48%
14SiSiliconSilicon628.085168.510
15.97%
26FeIronIron355.845167.535
15.87%
13AlAluminiumAluminium626.982161.892
15.34%
5BBoronBoron310.81032.430
3.07%
11NaSodiumSodium122.99022.990
2.18%
9FFluorineFluorine118.99818.998
1.80%
1HHydrogenHydrogen31.0083.024
0.29%
Total1055.349100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2010-067
  • UM2006-13-SiO:AlBFFeHNa
  • Unnamed (F-analogue of Schorl)

In other languages

German
Fluor-Schörl · IMA 2010-067
Italian
fluor-schorl

Classification

Strunz
10th ed.

9.CK

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CK[Si6O18]12- 6-membered single rings, with insular complex anionsGroup
  • 9.CKFluor-schorlSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2006Ertl, Andreas, Kolitsch, Uwe, Prowatke, Stefan, Dyar, M. Darby, Henry, Darrell J. (2006) The F-analogue of schorl from Grasstein, Trentino South Tyrol, Italy: crystal structure and chemistry. European Journal of Mineralogy, 18 (5) 583-588 doi:10.1127/0935-1221/2006/0018-0583DOI: 10.1127/0935-1221/2006/0018-0583
  2. 2011Henry, Darrell J., Dutrow, Barbara L. (2011) The incorporation of fluorine in tourmaline: internal crystallographic controls or external environmental influences?, in Tourmaline: An ideal indicator of its host environment. The Canadian Mineralogist, 49 (1) 41-56 doi:10.3749/canmin.49.1.41DOI: 10.3749/canmin.49.1.41
  3. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 8. Mineralogical Magazine, 75 (2) 289-294 doi:10.1180/minmag.2011.075.2.289 DOI: 10.1180/minmag.2011.075.2.289
  4. 2016Dyar, M. Darby, Meyer, Hans-Peter, Rossman, George R., Henry, Darrell J., Prem, Markus, Ludwig, Thomas, Nasdala, Lutz, Lengauer, Christian L., Tillmanns, Ekkehart, Niedermayr, Gerhard, Ertl, Andreas, Kolitsch, Uwe, Dyar, M. Darby, Meyer, Hans-Peter, Rossman, George R., Henry, Darrell J., Prem, Markus, Ludwig, Thomas, Nasdala, Lutz, Lengauer, Christian L., Tillmanns, Ekkehart, Niedermayr, Gerhard (2016) Fluor-schorl, a new member of the tourmaline supergroup, and new data on schorl from the cotype localities. European Journal of Mineralogy, 28 (1) 163-177 doi:10.1127/ejm/2015/0027-2501 DOI: 10.1127/ejm/2015/0027-2501
  5. 2017(2017) Fluor-schorl. Handbook of Mineralogy. Mineralogical Society of America
