Koenenite

Na4Mg9Al4Cl12(OH)22
IMA status
  • Approved
  • Grandfathered
IMA symbol
Koe
Discovered
1902
Also known as
  • Justit (of Koechlin)
  • Koeneniet
  • Korteit
  • +2 more

Where it forms, where it's found

Geological setting

marine evaporates

Type locality
Wittekind-Hildasglück mine
  1. Volpriehausen
  2. Uslar
  3. Northeim District
  4. Lower Saxony
  5. Germany

51.6608°, 9.7494°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent

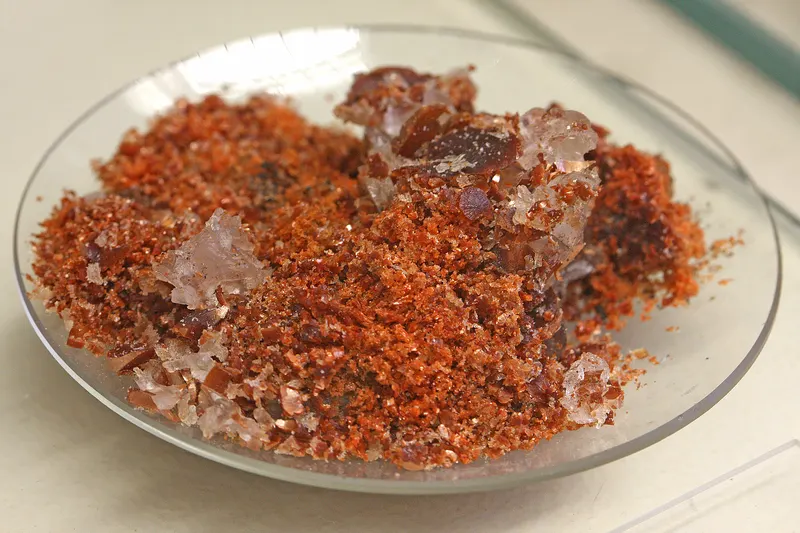

Colour
Colourless · tinted pale yellow to deep red due to included hematite. Reddish brown to colourless in transmitted light.
Tenacity
flexible
Cleavage
Perfect

On (0001).

Density
1.82 g/cm³

Optical

Optical type
Uniaxial (+) · 2V measured = 10°
Refractive index
1.52 – 1.55
Surface relief
Moderate
Principal indices
nω 1.52 · nε 1.55
Pleochroism
Visible

Dichroic: O = red-brown; E = colourless

Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3m
Cell parameters
a = 4.072(2) Å · c = 32.64(2) Å
Z
1
Morphology

Small crystals as crusts; very acute scalenohedra and rhombohedra; rosettes of intergrown tablets. Crystals indistinct.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
17ClChlorineChlorine1235.450425.400
34.92%
8OOxygenOxygen2215.999351.978
28.89%
12MgMagnesiumMagnesium924.305218.745
17.96%
13AlAluminiumAluminium426.982107.928
8.86%
11NaSodiumSodium422.99091.960
7.55%
1HHydrogenHydrogen221.00822.176
1.82%
Total1218.187100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Justit (of Koechlin)
  • Koeneniet
  • Korteit
  • Korteita
  • Korteite

In other languages

German
Koenenit
Italian
Koenenite

Classification

Strunz
10th ed.

3.BD.25

  • 3HalidesClass
  • 3.BSimple halides, with H2ODivision
  • 3.BDSimple halides with H2O and additional OHGroup
  • 3.BD.25KoeneniteSpecies
Dana
8th ed.

10.06.02.01

  • 10Oxyhalides and HydroxyhalidesClass
  • 10.06AmBn(O,OH)pXqType
  • 10.06.02— unnamed intermediate level —Group
  • 10.06.02.01KoeneniteSpecies
CIM

8.6.10

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.6Halides of AlGroup
  • 8.6.10KoeneniteSpecies

Group, growth & confusion

Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1902Rinne, F. (1902) Koenenit. Centralblatt für Mineralogie, Geologie und Paläontologie: 1902: 493-499.
  2. 1903Koechlin (1903) Mineralogische und petrographische Mitteilungen, Vienna: 23: 97.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1951Neues Jahrbuch für Mineralogie, Monatshefte (1951): 1-16.
  5. 1961Neues Jahrbuch für Mineralogie, Abhandlungen (1961): 97: 112-141.
