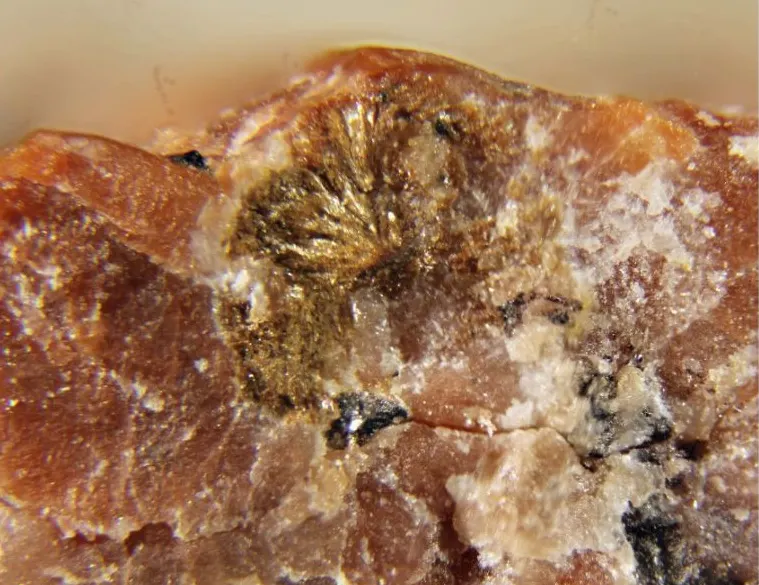

Kraisslite

Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16
IMA status
  • Approved
IMA symbol
Ksl
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-003
  • Kraissliet

Where it forms, where it's found

Geological setting

1010 Stope central zincite zone.

Type locality
Sterling Mine
  1. Sterling Hill
  2. Ogdensburg
  3. Sussex County
  4. New Jersey
  5. USA

41.0836°, -74.6047°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Sub-Metallic
Transparency
Transparent · Translucent
Colour
Pale red-brown · deep coppery brown
Streak
golden brown
Tenacity
brittle
Cleavage
Perfect

(0001)

Density
3.876 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.805
Surface relief
Very high
Principal indices
nε 1.805
Optical colour
coppery
UV response
Not fluorescent in UV

Crystallography

Crystal system
Orthorhombic
Space group
#39
Cell parameters
a = 8.1821(1) Å · b = 14.1946(3) Å · c = 43.9103(8) Å
Ratio a:b:c
1 : 1.735 : 5.367
Unit cell volume
5099.8 ų
Z
4
Type-locality form

Films and lenses to one inch thick

Comment

Formerly thought to be hexagonal, a = 8.22, c = 43.88 A.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese2554.9381373.450
30.88%
8OOxygenOxygen6215.999991.938
22.30%
33AsArsenicArsenic1274.922899.064
20.21%
12MgMagnesiumMagnesium2524.305607.625
13.66%
14SiSiliconSilicon1028.085280.850
6.31%
30ZnZincZinc365.380196.140
4.41%
26FeIronIron155.84555.845
1.26%
13AlAluminiumAluminium126.98226.982
0.61%
1HHydrogenHydrogen161.00816.128
0.36%
Total4448.022100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • H2O

Synonyms

  • IMA1977-003
  • Kraissliet

In other languages

German
IMA 1977-003 · Kraisslit
Italian
Kraisslite

Classification

Strunz
10th ed.

8.BE.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BEWith only medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.BE.45KraissliteSpecies
Dana
8th ed.

43.04.10.01

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.10Kraisslite GroupGroup
  • 43.04.10.01KraissliteSpecies
CIM

17.7.11

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.11KraissliteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1978Moore, Paul B., Ito, Jun (1978) Kraisslite, a new platy arsenosilicate from Sterling Hill, New Jersey. American Mineralogist, 63 (9-10) 938-940
  2. 1980Dunn, Pete J., Nelen, Joseph A. (1980) Kraisslite and mcgovernite: new chemical data. American Mineralogist, 65 (9-10) 957-960
  3. 2001(2001) Kraisslite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2012Cooper, M. A., Hawthorne, F. C. (2012) The crystal structure of kraisslite, [4]Zn3(Mn, Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16, from the Sterling Hill mine, Ogdensburg, Sussex County, New Jersey, USA. Mineralogical Magazine, 76 (7) 2819-2836 doi:10.1180/minmag.2012.076.7.13 DOI: 10.1180/minmag.2012.076.7.13
