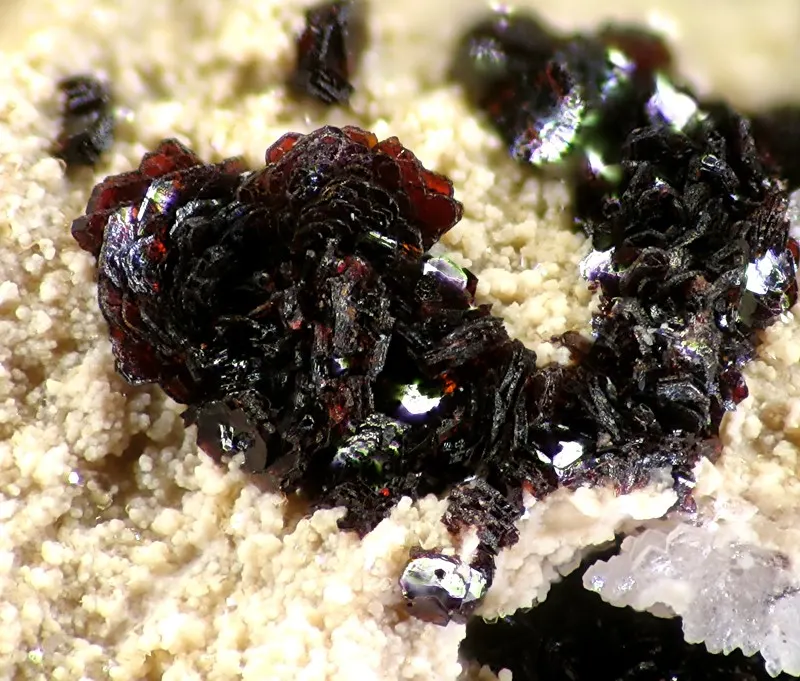

Hematolite

(Mn,Mg,Al)15(AsO4)2(AsO3)(OH)23
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hmt
Discovered
1884
Also known as
  • Aimatolit
  • Aimatolita
  • Aimatolite
  • +11 more

Where it forms, where it's found

Geological setting

Veinlets or cavities in crystalline limestone of a stratabound Mn-Fe ore deposit.

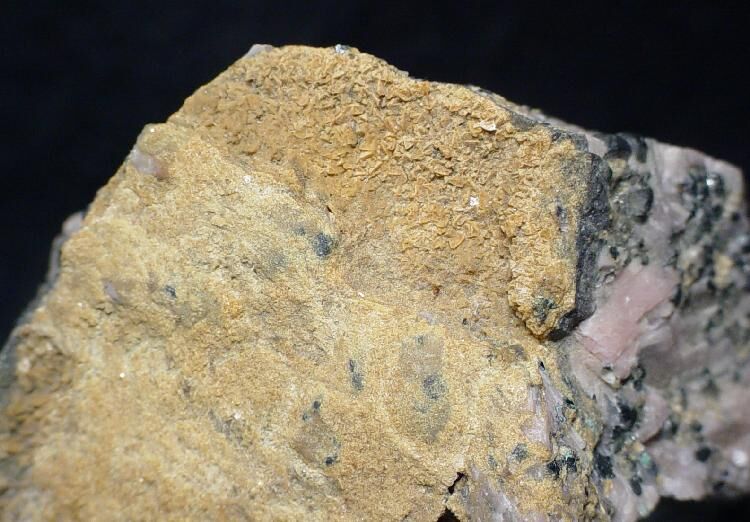

Unnamed, possible ferric analog of hematolite occurs at Ogdensburg, New Jersey (Dunn and Peacor, 1983). The mineral occurs in fractures of red willemite-franklinite-calcite ore as well as on friedelite-magnetite rock.

Type locality
Moss mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8167°, 14.1000°

6recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Brown-red · blood-red · nearly black · reddish orange to yellowish brown in transmitted light.
Streak
Light chocolate-brown to reddish brown
Tenacity
brittle
Cleavage
Perfect

On (0001), perfect

Fracture
Irregular/Uneven
Density
3.49 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.714 – 1.733
Surface relief
High
Principal indices
nω 1.733 · nε 1.714
Birefringence
0.019
Pleochroism
Non-pleochroic
UV response
Not fluorescent in UV
Notes

The crystals are divided into differently oriented, anomalously biaxial sectors at times.

Michel-Lévy diagramhighlighted lineδ = 0.0190
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]190 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation190 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#80
Cell parameters
a = 8.275 Å · c = 36.60 Å
Z
3
Morphology

Crystals thick tabular (0001) with large (0115), or rhombohedral with (0115) alone. The rhombohedral faces are striated horizontally.

Comment

Basic repeat distance of 12.2 A of a five-layer structure found

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1554.938824.070
34.55%
8OOxygenOxygen3415.999543.966
22.81%
13AlAluminiumAluminium1526.982404.730
16.97%
12MgMagnesiumMagnesium1524.305364.575
15.28%
33AsArsenicArsenic374.922224.766
9.42%
1HHydrogenHydrogen231.00823.184
0.97%
Total2385.291100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Aimatolit
  • Aimatolita
  • Aimatolite
  • Aimatolith
  • Diadelphit
  • Diadelphita
  • Diadelphite
  • Haematolit
  • Haematolita
  • Haematolite
  • Haematolith
  • Hematoliet
  • Hematolit
  • Hematolith

In other languages

German
Hämatolith
Italian
Ematolite · Hematolite

Classification

Strunz
10th ed.

8.BE.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BEWith only medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.BE.45HematoliteSpecies
Dana
8th ed.

43.04.06.01

  • 43Compound Phosphates, Etc.Class
  • 43.04Anhydrous Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.04.06— unnamed intermediate level —Group
  • 43.04.06.01HematoliteSpecies
CIM

20.8.21

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.8Arsenates of MnGroup
  • 20.8.21HematoliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1884Bertrand (1884) Bulletin de la Société française de Minéralogie: 7: 124.
  2. 1884Sjögren, Stens Anders Hjalmar (1884) Geologiska Föeningens I Stockholm. Förhandlinger, Stockholm: 7: 233, 369 (as Diadelphit).
  3. 1884Igelström, Johan Lars (1884) Aimatolit och Aimafibrit, tvenne nya mineral från Nordmarks jerngrufvor i Vermland [Aimatolite and Aimafibrite, two new minerals from Nordmark's iron mines in Värmland]. Öfversigt af Kongl. vetenskaps-akademiens förhandlingar, 41 (4) 85-87
  4. 1884Lorenzen, Joh. (1884) Rødt arsenikmineral (Aimatolit) från Nordmarken [Red arsenic mineral (Aimatolite) from Nordmarken]. Öfversigt af Kongl. vetenskaps-akademiens förhandlingar, 41 (4) 95-96
  5. 1884Igelström, Lars Johan (1884) Manganostibiit, Aimatolit och Aimafibrit, tre nya mineral från Mossgrufvan i Nordmarken. Geologiska Föreningen i Stockholm Förhandlingar, 7 (4) 210-212 doi:10.1080/11035898409443535DOI: 10.1080/11035898409443535
