Kummerite

Mn2+Fe3+Al(PO4)2(OH)2 · 8H2O
IMA status
  • Approved
IMA symbol
Kum
IMA approved
2015
Also known as
  • IMA2015-036
  • Kummeriet

Where it forms, where it's found

Geological setting

Pegmatite

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

2recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
Amber yellow
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Parallel to (010)

Fracture
Irregular/Uneven
Density
2.34 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 84°
Refractive index
1.565 – 1.63
Surface relief
Moderate
Principal indices
nα 1.565 · nβ 1.600 · nγ 1.630
Pleochroism
Weak

amber yellow

Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.320(1) Å · b = 10.670(3) Å · c = 7.139(1) Å
Cell angles
β = 111.40(3) ° · γ = 71.84(2) °
Ratio a:b:c
1 : 2.006 : 1.342
Z
1

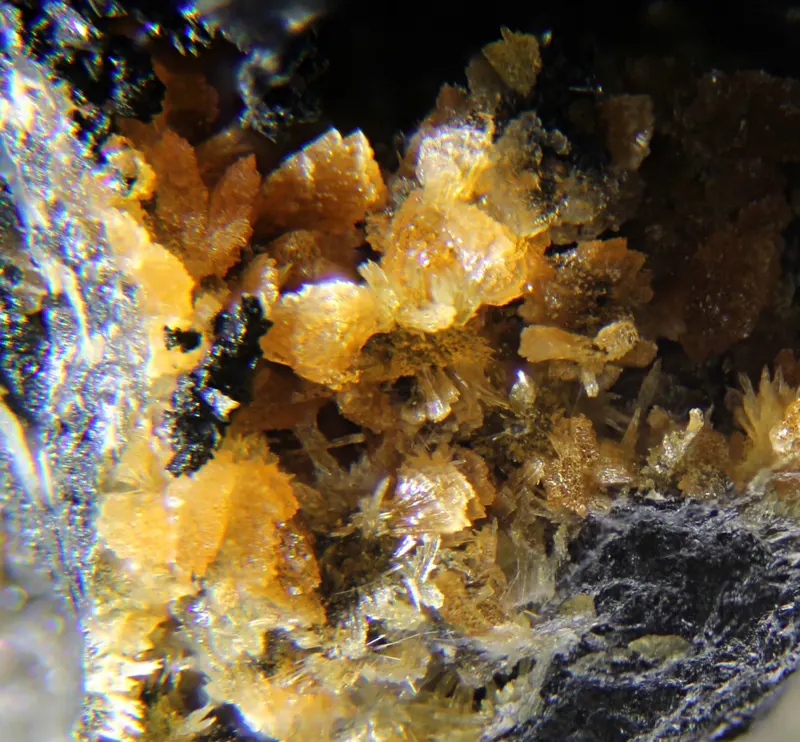

Morphology

Very thin, often deformed laths forming aggregates (spray, rounded)

Type-locality form

Aggregates are commonly 100 to 500 µm in their longest dimension, but the individual lamellae, parallel to (010) have a thickness of the order of a few µm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
56.93%
15PPhosphorusPhosphorus230.97461.948
12.25%
26FeIronIron155.84555.845
11.04%
25MnManganeseManganese154.93854.938
10.86%
13AlAluminiumAluminium126.98226.982
5.33%
1HHydrogenHydrogen181.00818.144
3.59%
Total505.839100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Fe(II)
  • (Zn)

Synonyms

  • IMA2015-036
  • Kummeriet

In other languages

German
IMA 2015-036 · Kummerit

Classification

Strunz
10th ed.

8.DC.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.30KummeriteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter 26. Mineralogical Magazine, 79 (4) 941-947 doi:10.1180/minmag.2015.079.4.05DOI: 10.1180/minmag.2015.079.4.05
  2. 2016Grey, I. E., Keck, E., Mumme, W. G., Pring, A., Macrae, C. M., Glenn, A. M., Davidson, C. J., Shanks, F. L., Mills, S. J. (2016) Kummerite, Mn2+Fe3+Al(PO4)2(OH)2·8H2O, a new laueite-group mineral from the Hagendorf Süd pegmatite, Bavaria, with ordering of Al and Fe3+. Mineralogical Magazine, 80 (7) 1243-1254 doi:10.1180/minmag.2016.080.061 DOI: 10.1180/minmag.2016.080.061
  3. 2017(2017) Kummerite. Handbook of Mineralogy. Mineralogical Society of America
