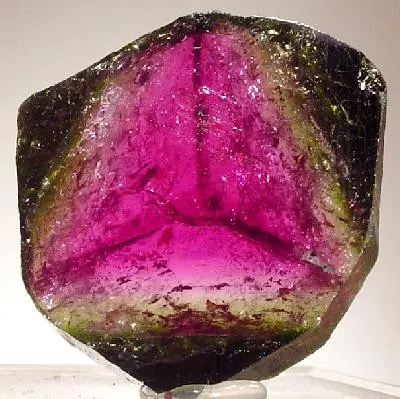

Liddicoatite

Ca(Li2Al)Al6(Si6O18)(BO3)3(OH)3(OH)
IMA status
  • Approved
  • Pending publication
IMA symbol
Ld
Also known as
  • IMA2025-047
  • Liddicoatiet

Where it forms, where it's found

Geological setting

liddicoatite formed during the final stages of pegmatite crystallisation; the residual fractionated fluids escaped from the pegmatite pockets and reacted with minerals in the graphic unit (plagioclase and primary schorlitic tourmaline)

Pegmatites

Type locality
Dolní Rožínka
  1. Žďár nad Sázavou District
  2. Vysočina Region
  3. Czech Republic

49.4764°, 16.2020°

24recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous to oily.
Transparency
Transparent
Colour
colorless
Streak
white
Tenacity
brittle
Cleavage
Poor/Indistinct

Poor on (0001)

Fracture
Conchoidal
Density
3.047 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.634 – 1.641
Surface relief
Moderate
Principal indices
nω 1.641 · nε 1.634
Pleochroism
Non-pleochroic
Luminescence
May rarely fluoresce yellow under SWUV, due to minor iron content.
Notes

Probably similar to data for fluor-liddicoatite.

Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#86
Cell parameters
a = 15.8277(3) Å · c = 7.0985(1) Å
Z
3
Morphology

Stout prismatic

Type-locality form

anhedral crystals ca. 1 mm in diameter Liddicoatite was found as colourless oscillatory zoned rims of green (fluor-liddicoatite) and brown (Fe-rich fluor-elbaite) tourmaline

Comment

Ran*e: 15.880(1)-15.882(1), 7.115(1)-7.118(1) A.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3115.999495.969
52.55%
13AlAluminiumAluminium726.982188.874
20.01%
14SiSiliconSilicon628.085168.510
17.85%
20CaCalciumCalcium140.07840.078
4.25%
5BBoronBoron310.81032.430
3.44%
3LiLithiumLithium26.94013.880
1.47%
1HHydrogenHydrogen41.0084.032
0.43%
Total943.773100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Impurities
  • Mn
  • Fe
  • Ti
  • Mg
  • Na
  • H2O

Synonyms

  • IMA2025-047
  • Liddicoatiet

In other languages

German
Liddicoatit
Spanish
Liddicoatita

Classification

Strunz
10th ed.

9.CK.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CK[Si6O18]12- 6-membered single rings, with insular complex anionsGroup
  • 9.CK.05LiddicoatiteSpecies
Dana
8th ed.

61.03.01.02

  • 61Cyclosilicates Six-membered RingsClass
  • 61.03Six-Membered Rings with borate groupsType
  • 61.03.01— unnamed intermediate level —Group
  • 61.03.01.02LiddicoatiteSpecies
CIM

17.5.9

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.9LiddicoatiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Skřápková, L., Cempírek, J., Škoda, R., Holá, M., Novotný, F. and Bosi. F. (2025) Liddicoatite, IMA 2025-047. CNMNC Newsletter 87, Mineralogical Magazine, 89, https://doi.org/......
  2. 1977Dunn, Pete J., Appleman, Daniel E., Nelen, Joseph E. (1977) Liddicoatite, a new calcium end-member of the tourmaline group. American Mineralogist, 62 (11-12) 1121-1124
  3. 1981Nuber, B. and K. Schmetzer (1981): Strukturverfeinerung von Liddicoatit: Neues Jahrbuch für Mineralogie, Monatshefte, 1981, 215-219.
  4. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  5. 1999Aurisicchio, Carlo, Demartin, Francesco, Ottolini, Luisa, Pezzotta, Federicο (1999) Homogeneous liddicoatite from Madagascar: a possible reference material? First EMPA, SIMS and SREF data. European Journal of Mineralogy, 11 (2) 237-242 doi:10.1127/ejm/11/2/0237DOI: 10.1127/ejm/11/2/0237
