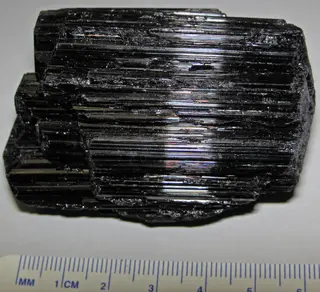

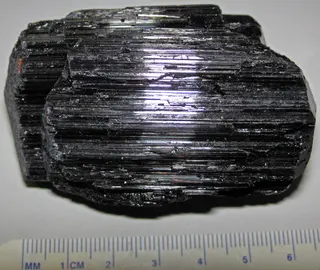

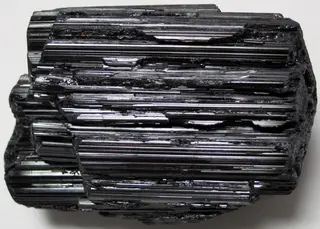

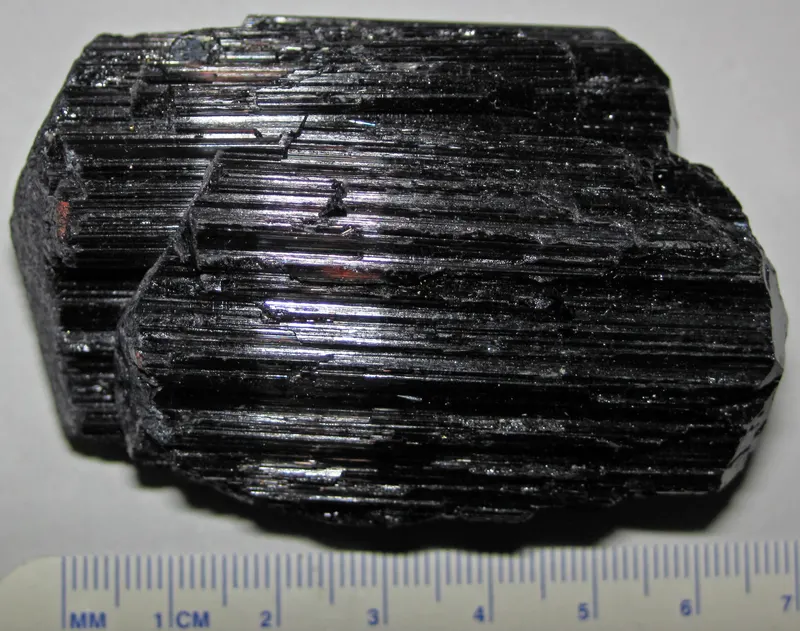

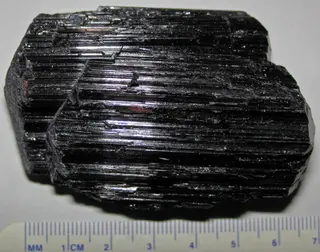

Magnesio-foitite

◻(Mg2Al)Al6(Si6O18)(BO3)3(OH)3(OH)
IMA status
  • Approved
IMA symbol
Mfoi
IMA approved
1998
Also known as
  • IMA1998-037
  • Magnesio-foitiet
  • Magnesiofoitit
  • +1 more

Where it forms, where it's found

Geological setting

From an alteration zone in a silicified porphyry developed in completely altered andesitic to dacitic volcanic rocks. Situated along a shear zone where there is strong acid hydrothermal alteration.

Type locality
Kyonosawa
  1. Yamanashi City
  2. Yamanashi Prefecture
  3. Japan
36recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Dull.
Colour
Pale bluish-grey
Streak
Not reported.
Tenacity
brittle
Cleavage

None

Density
2.995 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.624 – 1.65
Surface relief
Moderate
Principal indices
nω 1.65 · nε 1.624
Pleochroism
Visible

O = grey-blue; E = pale lavender.

Luminescence
Not reported.
Notes

Absorption: Moderate, ω > ε.

Michel-Lévy diagramhighlighted lineδ = 0.0260
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]260 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation260 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#86
Z
3
Type-locality form

Bluish grey individual crystals and felted masses on fracture and void surfaces. Individual crystals average 5 µm wide and 50 µm long (max 15 µm wide and 1 mm long). Also as radial aggregates up to a millimeter across.

Crystal structure

Synonyms

  • IMA1998-037
  • Magnesio-foitiet
  • Magnesiofoitit
  • Magnesiofoitite

In other languages

German
IMA 1998-037 · Magnesio-Foitit
Italian
Magnesio-foitite · Magnesiofoitite
Japanese
苦土フォイト電気石

Classification

Strunz
10th ed.

9.CK.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CK[Si6O18]12- 6-membered single rings, with insular complex anionsGroup
  • 9.CK.05Magnesio-foititeSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  2. 1999Hawthorne, F. C., Selway, J. B., Kato, A., Matsubara, S., Shimizu, M., Grice, J. D., Vajdak, J. (1999) Magnesiofoitite, ◻(Mg2Al)Al6(Si6O18)(BO3)3(OH)4, a new alkali-deficient tourmaline. The Canadian Mineralogist, 37 (6) 1439-1443
  3. 2000Jambor, J.L., Grew, E.S., Roberts, A.C. (2000) New mineral names. American Mineralogist: 85: 1561-1565.
  4. 2011Henry, Darell J., Novak, Milan, Hawthorne, Frank C., Ertl, Andreas, Dutrow, Barbara L., Uher, Pavel, Pezzotta, Federico (2011) Nomenclature of the tourmaline-supergroup minerals. American Mineralogist, 96 (5) 895-913 doi:10.2138/am.2011.3636 DOI: 10.2138/am.2011.3636
  5. 2014Fantini, C., Tavares, M. C., Krambrock, K., Moreira, R. L., Righi, A. (2014) Raman and infrared study of hydroxyl sites in natural uvite, fluor-uvite, magnesio-foitite, dravite and elbaite tourmalines. Physics and Chemistry of Minerals, 41 (4) 247-254 doi:10.1007/s00269-013-0642-0DOI: 10.1007/s00269-013-0642-0
