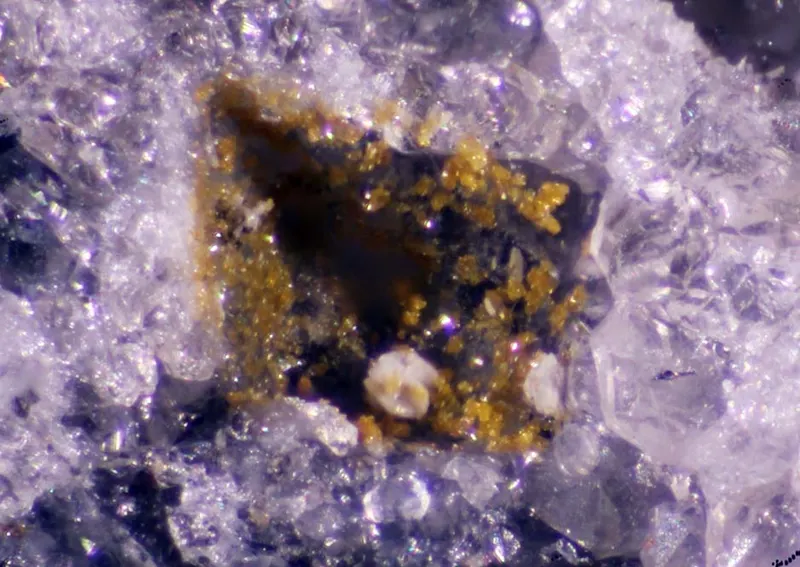

Nickellotharmeyerite

CaNi2(AsO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Nlmy
IMA approved
1999
Also known as
  • IMA1999-008
  • Nickellotharmeyeriet
  • Nickellotharmeyerita

Where it forms, where it's found

Geological setting

in quartz casts of decomposed nickel and cobalt arsenides, in the oxidation zone of the deposit

Type locality
Pucher Shaft
  1. Wolfgangmaßen mines (Wolfgangmaaßen mines)
  2. Wolfgangmaßen
  3. Neustädtel
  4. Schneeberg
  5. Erzgebirgskreis
  6. Saxony
  7. Germany

50.5654°, 12.6233°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Subadamantine
Transparency
Transparent
Colour
brown · red-brown · yellow
Streak
light brown to yellow
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
4.45 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 40°
Refractive index
1.8 – 1.87
Surface relief
Very high
Principal indices
nα 1.8 · nβ 1.81 · nγ 1.87
Pleochroism
Strong

X=yellow Y=brown Z=pale yellow X≈c Y=b Z^a ≈ 25°

Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.005 Å · b = 6.205 Å · c = 7.411 Å
Cell angles
β = 115.31 °
Ratio a:b:c
1 : 0.689 : 0.823
Unit cell volume
374.4 ų
Z
2
Type-locality form

minute tabular crystals to 0.1 mm, elongated on [010]

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
33.94%
33AsArsenicArsenic274.922149.844
31.79%
28NiNickelNickel258.693117.386
24.91%
20CaCalciumCalcium140.07840.078
8.50%
1HHydrogenHydrogen41.0084.032
0.86%
Total471.330100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Bi

Synonyms

  • IMA1999-008
  • Nickellotharmeyeriet
  • Nickellotharmeyerita

In other languages

German
IMA 1999-008 · Nickellotharmeyerit
Spanish
niquelotharmeyerita
Italian
Nickellotharmeyerite

Classification

Strunz
10th ed.

8.CG.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.15NickellotharmeyeriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2001Krause, W., Bernhardt, H.-J., Effenberger, H., Martin, M. (2001) Cobalttsumcorite and nickellotharmeyerite, two new minerals from Schneeberg, Germany: description and crystal structure. Neues Jahrbuch für Mineralogie - Monatshefte, 2001. 558-576
  2. 2021(2021) Nickellotharmeyerite. Handbook of Mineralogy. Mineralogical Society of America
