Siegenite

CoNi2S4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Seg
Discovered
1850
Also known as
  • Müsenit
  • Müsenita
  • Müsenite
  • +1 more

Where it forms, where it's found

Geological setting

Hydrothermal veins

Type locality
Stahlberg Mine (Schwabengrube)
  1. Müsen
  2. Hilchenbach
  3. Siegen-Wittgenstein
  4. Arnsberg
  5. North Rhine-Westphalia
  6. Germany

50.9906°, 8.0308°

288recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Light to steel-grey · violet-gray (tarnished)
Streak
Greyish black
Cleavage
Imperfect/Fair

Imperfect on (001)

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
4.5 g/cm³

Optical

Tropism
Isotropic
Reflectance R%
(42.8) 400, (43.7) 440, (44.8) 480, (45.9) 520, (47.2) 560, (49.0) 600, (50.8) 640, (52.4) 680, (53.2) 700
Reflected-light panel
47.8 %isotropic · single curve
Specimen sRGB 249, 168, 89
White reference100 % reflector under same lamp

Crystallography

Crystal system
Isometric
Space group
#222
Cell parameters
a = 9.41 Å
Z
8
Morphology

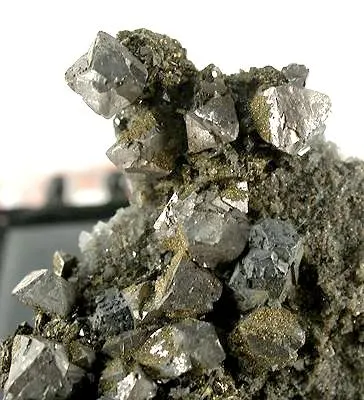

Octahedral crystals, massive, granular, compact

Twinning

On (111), may be polysynthetic

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
16SSulfurSulfur432.060128.240
42.11%
28NiNickelNickel258.693117.386
38.54%
27CoCobaltCobalt158.93358.933
19.35%
Total304.559100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Se
  • Cu
  • Fe

Synonyms

  • Müsenit
  • Müsenita
  • Müsenite
  • Siegeniet

In other languages

French
siegenite
German
Kobaltnickelkies · Müsenit · Siegenit
Spanish
Siegenita
Italian
Siegenite
Chinese
硫鈷鎳礦
Arabic
سيغينيت

Classification

Strunz
10th ed.

2.DA.05

  • 2Sulfides and SulfosaltsClass
  • 2.DMetal Sulfides, M: S = 3 :4 and 2:3Division
  • 2.DAM:S = 3:4Group
  • 2.DA.05SiegeniteSpecies
Dana
8th ed.

02.10.01.06

  • 02SulfidesClass
  • 02.10AmBnXp, with (m+n):p = 3:4Type
  • 02.10.01Linnaeite Group (Isometric: Fd3m)Group
  • 02.10.01.06SiegeniteSpecies
CIM

3.11.11

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.11Sulphides etc. of NiGroup
  • 3.11.11SiegeniteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1850Dana, James D. (1850) A System of Mineralogy (3rd ed.) G. P. Putnam. p.711
  2. 1857Genth, F.A. (1857) Contribution to Mineralogy, 4. Linnaeite, b. Siegenite (Nickel-linnaeite from Mineral Hill, Md.. American Journal of Science: 23: 415-427 (419).
  3. 1932Lix, H.W. (1932) The Composition and Occurrence of Linnaeite (siegenite). Doctoral dissertation, University of Missouri--Columbia.
  4. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  5. 1962Berry, L. G., Thompson, R. M. (1962) X-Ray Powder Data for Ore Minerals: the Peacock Atlas. GSA Memoir 85. Geological Society of America doi:10.1130/mem85DOI: 10.1130/mem85
