Uranocircite

Ba(UO2)2(PO4)2 · 10H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Urc-II
Discovered
1877
Also known as
  • Barium Autunite
  • Barium Uranite
  • Barium-Phosphoruranit
  • +5 more

Where it forms, where it's found

Geological setting

Secondary uranium mineral

Type locality
Streuberg Quarry
  1. Bergen
  2. Vogtlandkreis
  3. Saxony
  4. Germany

50.4692°, 12.2617°

86recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly
Transparency
Transparent · Translucent
Colour
Yellow-green · yellow · pale canary-yellow in transmitted light.
Cleavage
Perfect

Perfect on (001); distinct on (100) (010)

Density
3.46 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70° · 2V calc = 72°
Refractive index
1.574 – 1.588
Surface relief
Moderate
Principal indices
nα 1.574 · nβ 1.583 · nγ 1.588
Pleochroism
Weak

X = Colourless Y = Z = Pale canary yellow

Dispersion
none

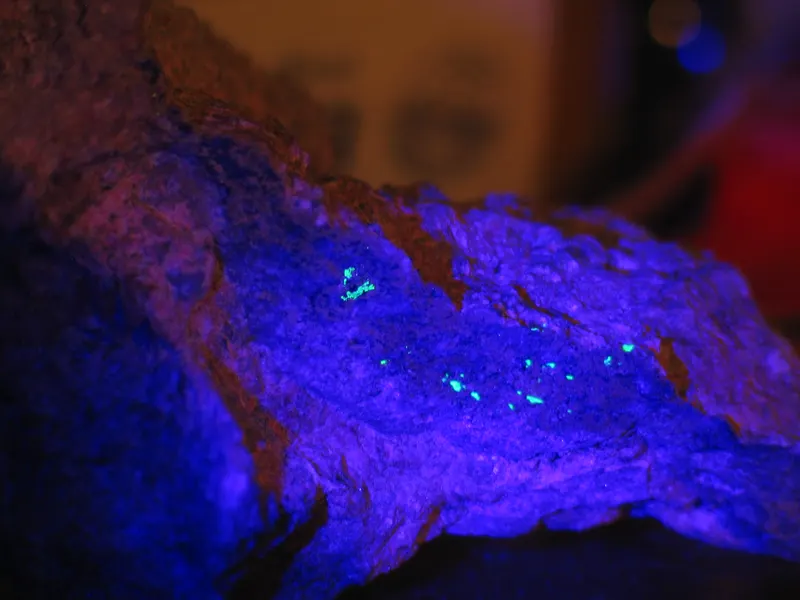

UV response
Green
Notes

Exhibits sets of twin lamellae parallel to (100) and (010). The biaxial material, upon heating to 100° - 150°, transitions to uniaxial with the accompanying loss of water to the dihydrate.

Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Cell parameters
a = 7.01 Å · c = 20.46 Å
Morphology

Thin tabular crystals.

Twinning

Twin lamellae parallel to (100) and (010).

Epitaxy

Occurs in parallel growths.

Comment

Interpreted to be isostructural with heinrichite: monoclinic, space group P2/c, a 7.01, b 6.99, c 21.2 .ANG., beta 103.9°, V 1008.4 A3 (Locock et al., 2005)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
45.45%
8OOxygenOxygen2215.999351.978
33.60%
56BaBariumBarium1137.327137.327
13.11%
15PPhosphorusPhosphorus230.97461.948
5.91%
1HHydrogenHydrogen201.00820.160
1.93%
Total1047.471100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Barium Autunite
  • Barium Uranite
  • Barium-Phosphoruranit
  • Bariumuranit
  • Baryturanit
  • Uranocirciet
  • Uranocircite-2
  • Uranocircite-II

In other languages

French
Uranocircite
German
Barium-Autunit · Barium-Phosphoruranit · Bariumuranit · Baryturanit · Uranocircit · Uranocircit-II
Spanish
Uranocircita
Italian
Uranocircite
Chinese
鋇鈾雲母
Simplified Chinese
钡铀云母
Russian
Ураноцирцит

Classification

Strunz
10th ed.

8.EB.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.05UranocirciteSpecies
Dana
8th ed.

40.2a.03.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.03— unnamed intermediate level —Group
  • 40.2a.03.01UranocirciteSpecies
CIM

19.11.22

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.22UranocirciteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Neues Jahrbuch für Mineralogie, Monatshefte und Abhandlungen: 406-407.
  2. Walenta, K. (1960): An occurrence of uranocircite in the southern Black Forest. Neues Jahrbuch für Mineralogie, Monatshefte 1960, 116-119. (In German.)
  3. 1877Weisbach, A. (1877) Mineralogische Mittheilungen. Uranocircit. (ein neues Glied der Gruppe der sog. Uranglimmer.). Jahrbuch für das Berg- und Hüttenwesen im Königreiche Sachsen, 1877, 48-49.
  4. 1877Weisbach, A. (1877) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Heidelberg, Stuttgart: 185: 404.
  5. 1877Church, A. H. (1877) VI.—Note on Uranocircite. Mineralogical Magazine and Journal of the Mineralogical Society, 1 (7) 234-236 doi:10.1180/minmag.1877.001.7.06 DOI: 10.1180/minmag.1877.001.7.06
