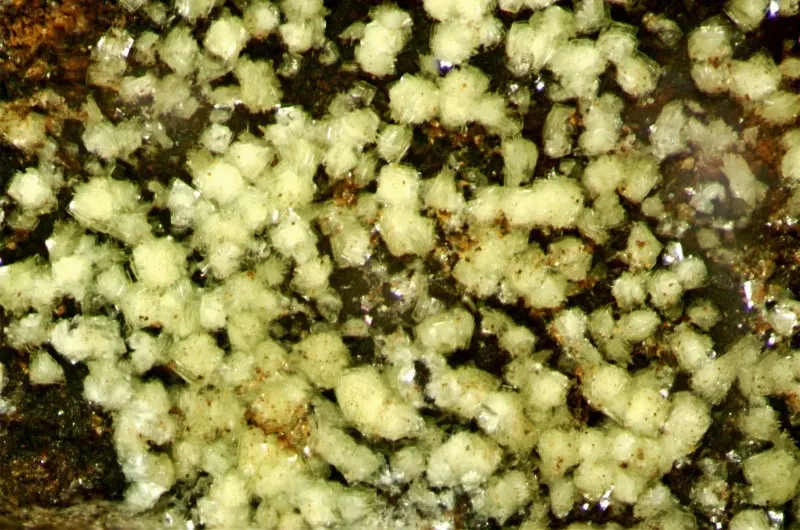

Sabugalite

HAl(UO2)4(PO4)4 · 16H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Sbg
Discovered
1951
Also known as
  • Aluminium-Autunite
  • Sabugaliet

Where it forms, where it's found

Geological setting

A secondary mineral in uranium deposits.

Type locality
Bica Mine
  1. Quarta-Feira
  2. Sortelha
  3. Sabugal
  4. Guarda
  5. Portugal

40.3434°, -7.2148°

78recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow
Tenacity
brittle
Cleavage
Perfect

(001)

Somewhat flexible.

Fracture
Micaceous
Density
3.20 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80°
Refractive index
1.564 – 1.584
Surface relief
Moderate
Principal indices
nα 1.564 – 1.565 · nβ 1.581 – 1.583 · nγ 1.582 – 1.584
Birefringence
0.018
Pleochroism
Visible

X = colorless; Y = Z = pale yellow.

Dispersion
r > v strong
Extinction
Plates ordinarily extinguish uniformly; sometimes showing mottled extinction.
UV response
Fluoresces bright lemon yellow in both SW and LW.
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 19.426 Å · b = 9.483 Å · c = 9.850 Å
Cell angles
β = 96.16 °
Ratio a:b:c
1 : 0.488 : 0.507
Z
2
Morphology

Thin square or lath-like crystals dominated by (001), that is uneven or warped. Other forms are narrow (100) and {<em>h</em>0<em>l</em>}, and rare 45° corner truncations by {<em>hkl</em>}. Crystals commonly in subparallel growths joined on (001).

Type-locality form

Densely aggregated crusts of very thin platy yellow crystals and scales up to about one millimeter on edge.

Comment

data on synthetic material

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium4238.029952.116
53.60%
8OOxygenOxygen4015.999639.960
36.03%
15PPhosphorusPhosphorus430.974123.896
6.98%
1HHydrogenHydrogen331.00833.264
1.87%
13AlAluminiumAluminium126.98226.982
1.52%
Total1776.218100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Aluminium-Autunite
  • Sabugaliet

In other languages

French
sabugalite
German
Aluminium-Autunit · Sabugalit
Spanish
Sabugalita
Italian
Sabugalite
Portuguese
Sabugalita · sabugalite
Russian
Сабугалит

Classification

Strunz
10th ed.

8.EB.55

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.55SabugaliteSpecies
Dana
8th ed.

40.2a.24.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.24— unnamed intermediate level —Group
  • 40.2a.24.01SabugaliteSpecies
CIM

19.11.31

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.31SabugaliteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. Mineralogical Abstracts: 34: 2990.
  2. 1951Frondel, Clifford (1951) Studies of uranium minerals (VIII): Sabugalite, an aluminum-autunite. American Mineralogist, 36 (9-10) 671-679
  3. 1983Vochten, R., Pelsmaekers, J. (1983) Synthesis, solubility, electrokinetic properties and refined crystallographic data of sabugalite. Physics and Chemistry of Minerals, 9 (1) 23-29 doi:10.1007/bf00309466DOI: 10.1007/bf00309466
  4. 2005(2005) Sabugalite. Handbook of Mineralogy. Mineralogical Society of America
