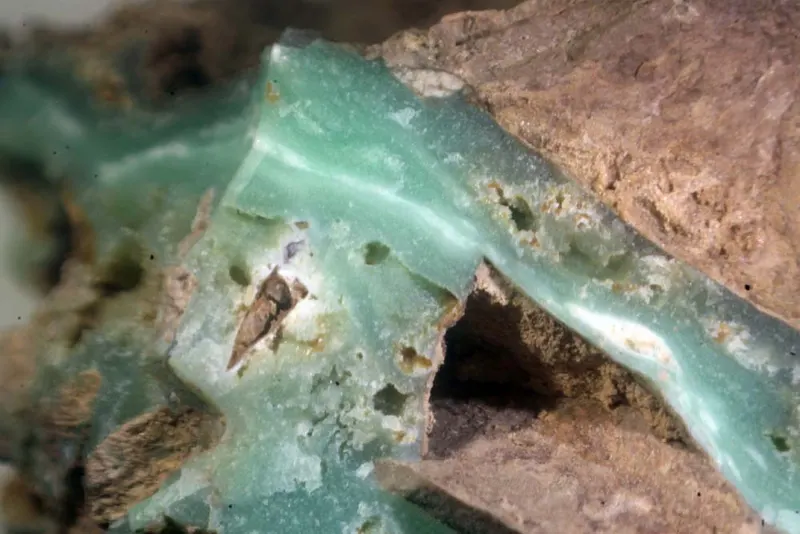

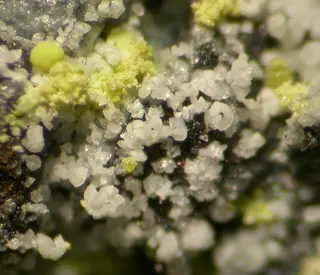

Vashegyite

Al11(PO4)9(OH)6 · 38H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Vhg
Discovered
1909
Also known as
  • Trainite
  • Vashegyiet

Where it forms, where it's found

Geological setting

In "boxwork" limonite in the oxidized zone of an iron deposit.

Type locality
Železník iron deposit
  1. Sirk
  2. Revúca District
  3. Banská Bystrica Region
  4. Slovakia

48.6218°, 20.1134°

21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
White · light green · light yellow · light brown · colourless in transmitted light
Cleavage
Perfect

Perfect on (001)

Density
1.93 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 67 – 74°
Refractive index
1.47 – 1.49
Surface relief
Low
Principal indices
nα 1.47 – 1.479 · nβ 1.477 – 1.488 · nγ 1.482 – 1.49
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0115
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]115 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation115 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 10.77 Å · b = 14.97 Å · c = 20.62 Å
Ratio a:b:c
1 : 1.390 : 1.915
Z
2
Morphology

Crystals lozenge shaped, flattened on (001). Forms hemispherical aggregates; commonly porous to compact, massive.

Comment

Class may be mm2; space group either Pnam or Pna21.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8015.9991279.920
66.04%
13AlAluminiumAluminium1126.982296.802
15.31%
15PPhosphorusPhosphorus930.974278.766
14.38%
1HHydrogenHydrogen821.00882.656
4.27%
Total1938.144100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Trainite
  • Vashegyiet

In other languages

German
Vashegyit
Italian
Vashegyite

Classification

Strunz
10th ed.

8.DB.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DBWith only medium-sized cations, (OH, etc.):RO4< 1:1Group
  • 8.DB.10VashegyiteSpecies
Dana
8th ed.

42.12.02.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.12(AB)4(XO4)3Zq·xH2OType
  • 42.12.02— unnamed intermediate level —Group
  • 42.12.02.01VashegyiteSpecies
CIM

19.7.12

  • 19PhosphatesClass
  • 19.7Phosphates of Al aloneGroup
  • 19.7.12VashegyiteSpecies

Group, growth & confusion

Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1909Zimányi (1909) Math. es Term. tud. Ert., 27, 64-67.
  2. 1910Zimányi, K. (1910) Vashegyit, ein neues basisches Aluminiumphosphat vom Comitat Gömör. Zeitschrift für Krystallographie und Mineralogie, 47 (1-6). 53-74 doi:10.1524/zkri.1910.47.1.53DOI: 10.1524/zkri.1910.47.1.53
  3. 1916Wherry, E.T. (1916) A peculiar intergrowth of phosphate and silicate minerals. Journal of the Washington Academy of Science: 6: 105-108.
  4. 1918Schaller (1918) US Geological Survey Mineral Resources, part II: 163.
  5. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
