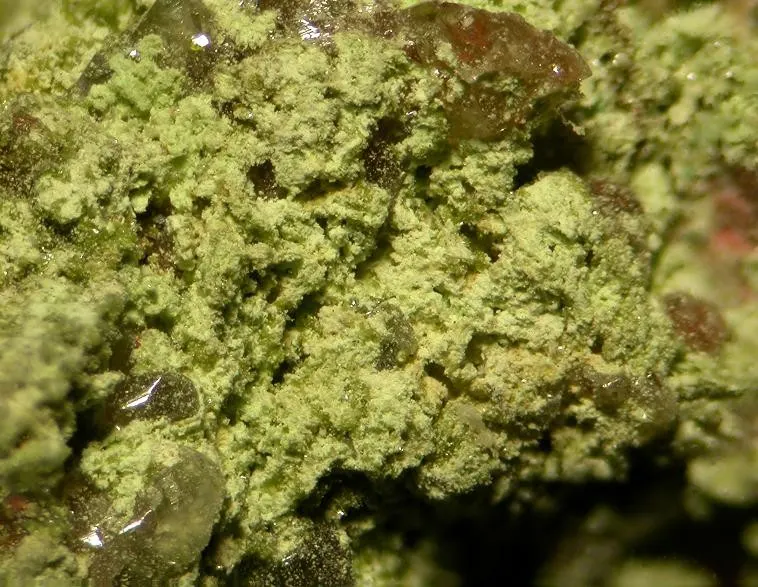

Zincgartrellite

PbZn2(AsO4)2(H2O,OH)2
IMA status
  • Approved
IMA symbol
Zgtl
IMA approved
1998
Also known as
  • IMA1998-014
  • Zincgartrelliet
  • Zincgartrellit
  • +2 more

Where it forms, where it's found

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Greenish yellow
Streak
Yellow
Tenacity
brittle
Cleavage
None Observed
Density
5.30 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 87°
Refractive index
1.91 – 1.97
Surface relief
Very high
Principal indices
nα 1.91 · nβ 1.94 · nγ 1.97
Pleochroism
Weak

X = Z = pale yellow, Y = yellow.

Dispersion
r < v
Extinction
Optical orientation not determined.
Michel-Lévy diagramhighlighted lineδ = 0.0600
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]600 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation600 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.550(1) Å · b = 5.620(1) Å · c = 7.621(1) Å
Cell angles
α = 68.59(1) ° · β = 69.17(1) ° · γ = 69.51(1) °
Ratio a:b:c
1 : 1.013 : 1.373
Z
1
Type-locality form

Rosette-like aggregates, to 0.5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
30.21%
8OOxygenOxygen1215.999191.988
27.99%
33AsArsenicArsenic274.922149.844
21.85%
30ZnZincZinc265.380130.760
19.07%
1HHydrogenHydrogen61.0086.048
0.88%
Total685.840100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1998-014
  • Zincgartrelliet
  • Zincgartrellit
  • Zincogartrellit
  • Zincogartrellita

In other languages

German
IMA 1998-014 · Zinkgartrellit
Spanish
cincgartrellita · zincgartrellita
Italian
Zincgartrellite · Zincogartrellite

Classification

Strunz
10th ed.

8.CG.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.20ZincgartrelliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1998Krause, Werner, Belendorff, Klaus, Bernhardt, Heinz-Jürgen, Mccammon, Catherine, Effenberger, Herta, Mikenda, Werner (1998) Crystal chemistry of the tsumcorite-group minerals. New data on ferrilotharmeyerite, tsumcorite, thometzekite, mounanaite, helmutwinklerite, and a redefinition of gartrellite. European Journal of Mineralogy, 10 (2). 179-206 doi:10.1127/ejm/10/2/0179DOI: 10.1127/ejm/10/2/0179
  2. 2000Effenberger, H., Krause, W., Bernhardt, H.-J., Martin, M. (2000) On the symmetry of tsumcorite group minerals based on the new species rappoldite and zincgartrellite. Mineralogical Magazine, 64 (6). 1109-1126 doi:10.1180/002646100549922 DOI: 10.1180/002646100549922
  3. 2001Jambor, J.L., Roberts, A.C. (2001) New mineral names. American Mineralogist: 86: 939-942.
  4. 2001Mandarino, Joseph A. (2001) New minerals. The Canadian Mineralogist, 39 (5) 1473-1502 doi:10.2113/gscanmin.39.5.1473 DOI: 10.2113/gscanmin.39.5.1473
  5. 2020(2020) Zincgartrellite. Handbook of Mineralogy. Mineralogical Society of America
