Berthierine

(Fe2+,Fe3+,Al)3(Si,Al)2O5(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Brh
Also known as
  • K-type Chamosite
  • Septechamosit
  • Septechamosita
  • +1 more

Where it forms, where it's found

Geological setting

Unmetamorphosed marine sediments, lateritic and polar soils, hydrothermally altered rocks, can be a late stage pneumatolitically altered mineral in some igneous rocks.

Type locality
Hayange
  1. Thionville
  2. Moselle
  3. Grand Est
  4. France
62recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dark olive green · yellowish green · reddish brown (Ti-bearing variety)
Streak
Greenish white
Density
3.06 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.62 – 1.65
Surface relief
Moderate
Principal indices
nα 1.62 · nγ 1.65
Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
Cm
Cell parameters
a = 5.25 Å · b = 9.10 Å · c = 7.06 Å
Cell angles
β = 104.5 °
Ratio a:b:c
1 : 1.733 : 1.345
Z
2
Morphology

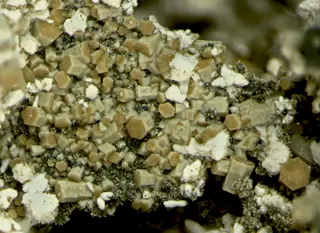

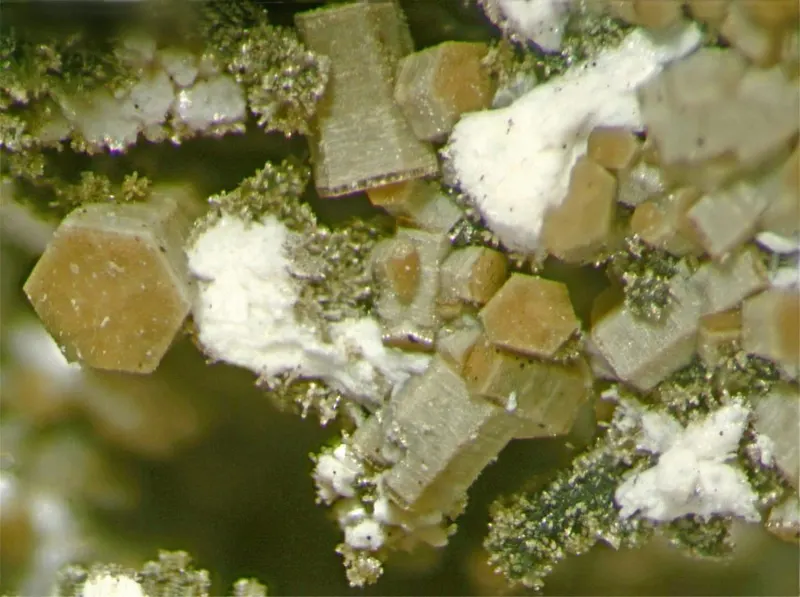

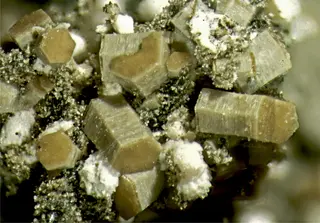

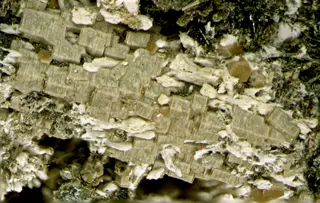

Microcrystalline oolitic aggregates; platy micaceous platy or pyramidal-hemimorphic crystals; rarely fibrous. May be pseudomorphous.

Comment

2 polytyes 1M and 1H

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron655.845335.070
49.70%
8OOxygenOxygen915.999143.991
21.36%
13AlAluminiumAluminium526.982134.910
20.01%
14SiSiliconSilicon228.08556.170
8.33%
1HHydrogenHydrogen41.0084.032
0.60%
Total674.173100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • K-type Chamosite
  • Septechamosit
  • Septechamosita
  • Septechamosite

In other languages

French
Berthiérine
German
Berthierin
Spanish
Berthierina
Italian
Berthierine
Chinese
鐵鋁蛇紋石
Traditional Chinese
鐵鋁蛇紋石

Classification

Strunz
10th ed.

9.ED.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.15BerthierineSpecies
Dana
8th ed.

71.01.2c.02

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.2c— unnamed intermediate level —Group
  • 71.01.2c.02BerthierineSpecies
CIM

16.19.15

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.19Aluminosilicates of Fe and MgGroup
  • 16.19.15BerthierineSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1830Beudant, François-Sulpice (1830) Traité élémentaire de minéralogie. Deuxiéme Edition [Elementary Treatise on Mineralogy. Second Edition] (2nd ed.) Vol. 1 - Tome Premier [Volume One]. Chez Verdière.
  2. 1951Brindley, G. W.; Dunham, K. C.; Eyles, V. A.; Taylor, J. H. (1951) The crystal structure of some chamosite minerals. Mineralogical Magazine and Journal of the Mineralogical Society, 29 (212). 502-525 doi:10.1180/minmag.1951.029.212.04 DOI: 10.1180/minmag.1951.029.212.04
  3. 1953Brindley, G. W., Youell, R. F. (1953) Ferrous chamosite and ferric chamosite. Mineralogical Magazine and Journal of the Mineralogical Society, 30 (220) 57-70 doi:10.1180/minmag.1953.030.220.07 DOI: 10.1180/minmag.1953.030.220.07
  4. 1982Brindley, G. W. (1982) Chemical Compositions of Berthierines—A Review. Clays and Clay Minerals, 30 (2) 153-155 doi:10.1346/ccmn.1982.0300211DOI: 10.1346/ccmn.1982.0300211
  5. 1983Bhattacharyya, Deba P. (1983) Origin of Berthierine in Ironstones. Clays and Clay Minerals, 31 (3) 173-182 doi:10.1346/ccmn.1983.0310302DOI: 10.1346/ccmn.1983.0310302
