Caryopilite

Mn2+3Si2O5(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cpl
Discovered
1889
Also known as
  • Caryopiliet
  • Caryopilit
  • Caryopilita
  • +3 more

Where it forms, where it's found

Type locality
Harstigen Mine
  1. Pajsberg
  2. Persberg ore district
  3. Filipstad
  4. Värmland County
  5. Sweden

59.7853°, 14.3139°

64recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Brown · reddish-brown · tan

Light-brown to yellow in thin section. Black when oxidized.

Streak
Much lighter than undisturbed surface
Tenacity
waxy
Cleavage
Perfect

(001)

Fracture
Micaceous
Density
2.83 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.606 – 1.65
Surface relief
Moderate
Principal indices
nα 1.606 – 1.62 · nβ 1.632 – 1.65 · nγ 1.632 – 1.65
Birefringence
0.026
Dispersion
weak
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0260
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]260 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation260 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 5.668 Å · b = 9.811 Å · c = 7.527 Å
Cell angles
β = 104.52 °
Ratio a:b:c
1 : 1.731 : 1.328
Z
2
Morphology

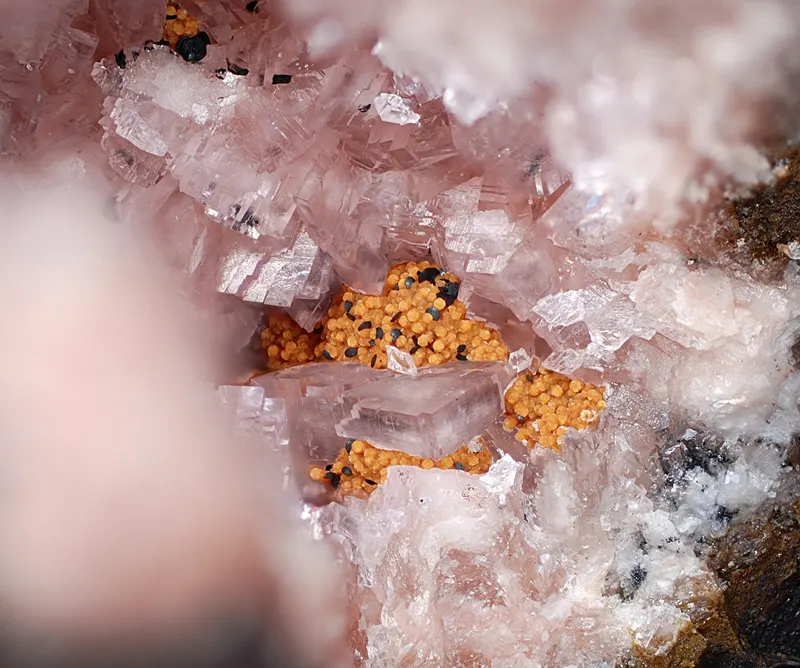

Tight aggregates of small crystal to waxy spherules.

Type-locality form

As clusters of reniform aggregates.

Comment

Probably monoclinic; space group not determined.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese354.938164.814
44.67%
8OOxygenOxygen915.999143.991
39.02%
14SiSiliconSilicon228.08556.170
15.22%
1HHydrogenHydrogen41.0084.032
1.09%
Total369.007100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • As
  • Fe
  • Zn
  • Ca
  • F
  • Cl

Synonyms

  • Caryopiliet
  • Caryopilit
  • Caryopilita
  • Ectropite
  • Ektropit
  • Ektropite

In other languages

French
caryopilite
German
Ektropit · Karyopilit
Spanish
caryopilite
Italian
caryopilite
Russian
кариопилит

Classification

Strunz
10th ed.

9.ED.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.15CaryopiliteSpecies
Dana
8th ed.

71.01.2b.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.2b— unnamed intermediate level —Group
  • 71.01.2b.01CaryopiliteSpecies
CIM

14.18.9

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.9CaryopiliteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. Guggenheim, Stephen, Bailey, Sturges W. (1989) An occurrence of a modulated serpentine related to the greenalite-caryopilite series. American Mineralogist, 74 (5-6) 637-641
  2. 1889Hamberg, Axel (1889) Mineralogische Śtudien.1. Optische Eigenschaften des Ekmanit [Mineralogical studies.1. Optical properties of Ekmanite]. Geologiska Föreningen i Stockholm Förhandlingar, 11 (1) 25-27 doi:10.1080/11035898909445430DOI: 10.1080/11035898909445430
  3. 1963Kato, T. (1963) New data on the so-called bementite. The Journal of the Japanese Association of Mineralogists, Petrologists and Economic Geologists: 49: 93-103.
  4. 1964Fleischer, Michael (1964) New Mineral Names. American Mineralogist, 49 (3-4) 439-448
  5. 1980Peacor, Donald R., Essene, Eric J. (1980) Caryopilite - a member of the friedelite rather than the serpentine group. American Mineralogist, 65 (3-4). 335-339
