Dawsonite

NaAl(CO3)(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dws
Discovered
1874

Where it forms, where it's found

Geological setting

Feldspathic dike cutting Trenton limestone.

Nepheline syenites, authigenic in alkaline shales and coal bearing rocks, saline soils on nepheline tuffs.

Type locality
McGill University campus
  1. Mont Royal
  2. Montréal
  3. Québec
  4. Canada

45.5042°, -73.5772°

85recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to white · rarely pink · colourless in transmitted light
Streak
White
Cleavage
Perfect

On (110)

Density
2.436 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 77° · 2V calc = 76°
Refractive index
1.466 – 1.596
Surface relief
Moderate
Principal indices
nα 1.466 · nβ 1.542 · nγ 1.596
Dispersion
relatively weak r < v
Michel-Lévy diagramhighlighted lineδ = 0.1300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1300 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1300 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#57
Cell parameters
a = 6.759 Å · b = 10.425 Å · c = 5.585 Å
Ratio a:b:c
1 : 1.542 : 0.826
Z
4
Morphology

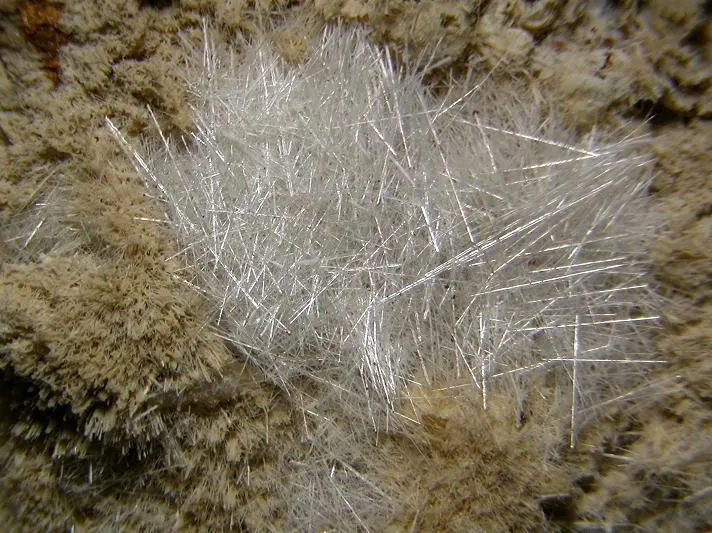

Bladed to acicular crystals forming incrustations and rosettes; tufts of fine needles. Crystals elongated [001], to 3.5cm.

Type-locality form

Thin bladed crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
55.55%
13AlAluminiumAluminium126.98226.982
18.74%
11NaSodiumSodium122.99022.990
15.97%
6CCarbonCarbon112.01112.011
8.34%
1HHydrogenHydrogen21.0082.016
1.40%
Total143.994100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

In other languages

French
dawsonite
German
Dawsonit
Spanish
Dawsonita
Italian
Dawsonite
Chinese
片钠铝石 · 碳钠铝石
Simplified Chinese
片钠铝石
Traditional Chinese
片鈉鋁石

Classification

Strunz
10th ed.

5.BB.10

  • 5CarbonatesClass
  • 5.BCarbonates with additional anions, without H2ODivision
  • 5.BBWith alkalies, etc.Group
  • 5.BB.10DawsoniteSpecies
Dana
8th ed.

16a.03.08.01

  • 16aAnhydrous Carbonates Containing Hydroxyl or HalogenClass
  • 16a.03(AB)2(XO3)ZqType
  • 16a.03.08— unnamed intermediate level —Group
  • 16a.03.08.01DawsoniteSpecies
CIM

11.7.3

  • 11CarbonatesClass
  • 11.7Carbonates of AlGroup
  • 11.7.3DawsoniteSpecies

Group, growth & confusion

Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1874Harrington, B.J. (1874) Notes on dawsonite, a new carbonate. The Canadian Naturalist and Quarterly Journal of Science: 7: 305-309.
  2. 1878Harrington, B.J. (1878) Note on the composition of dawsonite. The Canadian Naturalist, New series: 10: 84-86.
  3. 1908Graham, R.P.D. (1908) Dawsonite: a carbonate of soda and alumina. Proceedings and Transactions of the Royal Society of Canada, Third Series, II, Section IV, 165-177.
  4. 1965Stevenson, J.S., Stevenson, L.S. (1965) Shorter communications: The petrology of dawsonite at the type locality, Montreal. The Canadian Mineralogist: 8: 249-252.
  5. 1965MANDARINO, J.A. & HARRIS, D.C. (1965) New Canadian mineral occurrences. Canadian Mineralogist, 8, 377-381.
