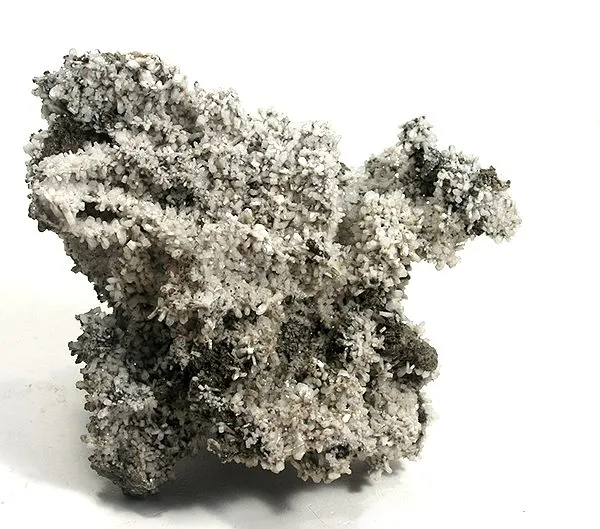

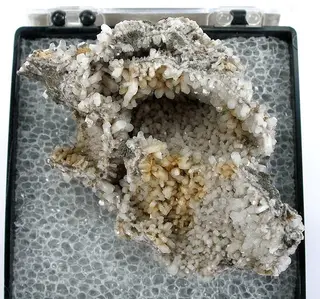

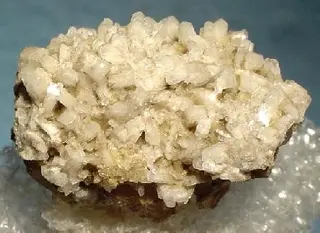

Edingtonite

Ba(Si3Al2)O10 · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Edi
Also known as
  • Antiëdrit
  • Antiëdrita
  • Antiëdrite
  • +2 more

Where it forms, where it's found

Geological setting

Found on Lord Blantyre's Estate, West Kilpatrick, Dumbartonshire, near Glasgow, Scottland.

Type locality
Kilpatrick Hills
  1. Scotland
  2. UK
29recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless to white
Streak
White
Tenacity
brittle
Cleavage
Perfect

m (110)

Density
2.694 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 66°
Refractive index
1.538 – 1.554
Surface relief
Moderate
Principal indices
nα 1.538 · nβ 1.549 · nγ 1.554
Dispersion
r < v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#44
Cell parameters
a = 9.550(10) Å · b = 9.665(10) Å · c = 6.523(5) Å
Ratio a:b:c
1 : 1.012 : 0.683
Z
2
Comment

Mazzi et al. (1984) concluded "that two types of edingtonite occur, "orthorhombic edingtonite" and "tetragonal edingtonite"." Space groups given are P212121 and P-421m (with Al-Si disorder), respectively. Data given here are for the orthorhombic variant.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
44.13%
56BaBariumBarium1137.327137.327
27.05%
14SiSiliconSilicon328.08584.255
16.60%
13AlAluminiumAluminium226.98253.964
10.63%
1HHydrogenHydrogen81.0088.064
1.59%
Total507.596100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Antiëdrit
  • Antiëdrita
  • Antiëdrite
  • Edingtoniet
  • Tetraedingtonite

In other languages

French
édingtonite
German
Edingtonit
Spanish
edingtonita
Italian
edingtonite
Chinese
钡沸石
Arabic
إدينجتونيت

Classification

Strunz
10th ed.

9.GA.15

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GAZeolites with T5O10 Units – The Fibrous ZeolitesGroup
  • 9.GA.15EdingtoniteSpecies
Dana
8th ed.

77.01.05.06

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.05Natrolite and related speciesGroup
  • 77.01.05.06EdingtoniteSpecies
CIM

16.12.7

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.7EdingtoniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1825Haidinger, W.K., Turner, E. (1825) Description of edingtonite, a new mineral species. The Edinburgh Journal of Science: 3: 316-320.
  2. 1879Brush, G.J., Dana, E.S. (1879) On the mineral locality in Fairfield County, Connecticut, with the description of two additional new species. Second Paper. American Journal of Science and Arts, 17, 359-368.
  3. 1934Hey, Max H. (1934) Studies on the zeolites. Part VI. Edingtonite. Mineralogical Magazine and Journal of the Mineralogical Society, 23 (144) 483-494 doi:10.1180/minmag.1934.023.144.02 DOI: 10.1180/minmag.1934.023.144.02
  4. 1976Galli, E. (1976) Crystal structure refinement of edingtonite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 32 (6) 1623-1627 doi:10.1107/s0567740876006109DOI: 10.1107/s0567740876006109
  5. 1981Belitsky, I.A., Gabuda, S.P., Scherbakov, V.N. (1981) Physics of zeolitic water: edingtonite and mordenite. In: Molecular spectroscopy and X-ray diffractometry of minerals, Nauka, Novosibirsk, pp 178–185. (in Russian)
