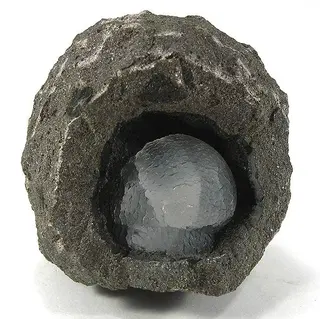

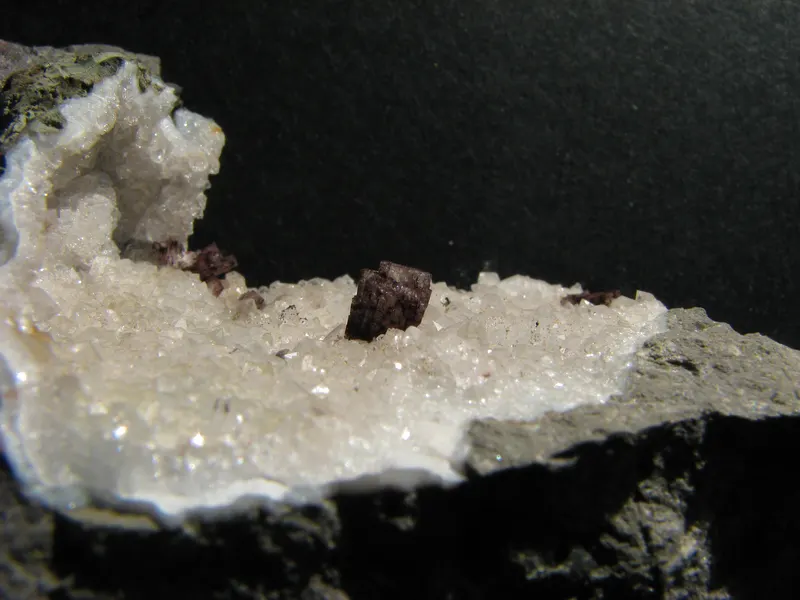

Epistilbite

Ca3[Si18Al6O48] · 16H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Estb
Discovered
1826
Also known as
  • Epistilbiet
  • Makrotyper Monophan
  • Monophan
  • +5 more

Where it forms, where it's found

Geological setting

cavities in basalts and gneisses.

Cavities in basalts and gneisses

Type locality
Breiðdalur- Berufjörður area
  1. Eastern Region
  2. Iceland
128recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white · pinkish · yellowish
Streak
white
Tenacity
brittle
Cleavage
Perfect

Perfect on (010)

Fracture
Irregular/Uneven
Density
2.22 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 44° · 2V calc = 52°
Refractive index
1.502 – 1.512
Surface relief
Moderate
Principal indices
nα 1.502 · nβ 1.51 · nγ 1.512
Dispersion
r < v strong
Extinction
Y = b; Z ∧ c ≃ -10°; X ∧ a = 11°.
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.08 Å · b = 17.74 Å · c = 10.25 Å
Cell angles
β = 124.5 °
Ratio a:b:c
1 : 1.954 : 1.129
Z
3
Morphology

Crystals prismatic; spherulitic, sheaflike aggregates

Twinning

Always on (100), (110) penetration crosses

Comment

Point Group: 2/m; m; or 2:; Space Group: C2/m; Cm; or C2:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6415.9991023.936
55.53%
14SiSiliconSilicon1828.085505.530
27.42%
13AlAluminiumAluminium626.982161.892
8.78%
20CaCalciumCalcium340.078120.234
6.52%
1HHydrogenHydrogen321.00832.256
1.75%
Total1843.848100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • Na
  • K

Synonyms

  • Epistilbiet
  • Makrotyper Monophan
  • Monophan
  • Monophane
  • Orizit
  • Orizite
  • Oryzit
  • Oryzite

In other languages

French
Épistilbite
German
Epistilbit
Spanish
Epistilbita
Italian
epistilbite
Russian
эпистилбит

Classification

Strunz
10th ed.

9.GD.45

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GDChains of 6-membered rings – tabular zeolitesGroup
  • 9.GD.45EpistilbiteSpecies
Dana
8th ed.

77.01.06.02

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.06Mordenite and related speciesGroup
  • 77.01.06.02EpistilbiteSpecies
CIM

16.9.26

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.9Aluminosilicates of CaGroup
  • 16.9.26EpistilbiteSpecies

Group, growth & confusion

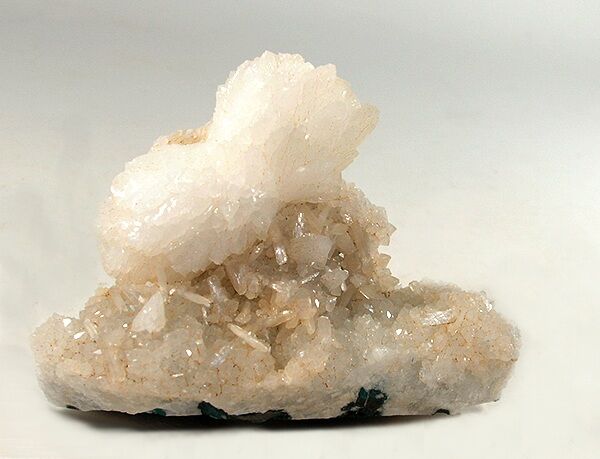

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1826Rose, Gustav (1826) Ueber den Epistilbit, eine neue zur Familie der Zeolithe gehörige Mineralgattung. Annalen der Physik, 82. 183-190 doi:10.1002/andp.18260820204DOI: 10.1002/andp.18260820204
  2. 1827Levy, A. (1827) On the identity of Epistilbite and Heulandite. The Philosophical Magazine: 1(1): 6-12.
  3. 1879Des Cloizeaux, A. (1879) Sur la forme clinorhombique à laquelle doit être rapportée l'Epistilbite. Bulletin de Minéralogie: 2(6): 161-165.
  4. 1933Hey, M.H., Mourant, A.E. (1933) Epistilbite from Jersey. Bulletin of the Société jersiaise: 12: 104.
  5. 1953Koizumi, M. (1953) The differential thermal analysis curves and the dehydration curves of zeolites. Studies on Water in Minerals, Part 1. Mineralogical Journal: 1(1): 36-47.
