Feruvite

CaFe2+3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH)
IMA status
  • Approved
IMA symbol
Fuvt
Discovered
1989
Also known as
  • Feruviet

Where it forms, where it's found

Geological setting

Tourmalinized pegmatite

Type locality
Repanga Island (Cuvier Island)
  1. Thames-Coromandel District
  2. Waikato Region
  3. New Zealand
19recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous to dull.
Transparency
Translucent
Colour
Dark brownish-black.
Streak
Gray.
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
3.207 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.669 – 1.687
Surface relief
High
Principal indices
nω 1.687 · nε 1.669
Birefringence
0.018
Pleochroism
Strong

O light brown, E very dark brown

Luminescence
Nonfluorescent.
UV response
Not fluorescent in ultraviolet light
Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R3m
Cell parameters
a = 16.01 Å · c = 7.24 Å
Z
3
Morphology

Original material is granular.

Type-locality form

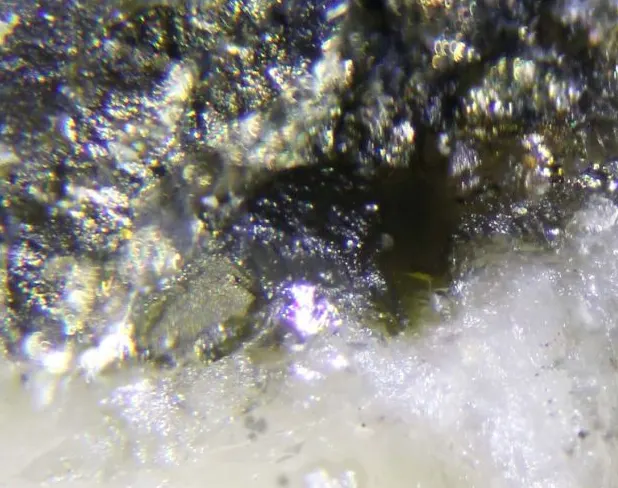

Dark brown-black 2 mm anhedral grains. The feruvite occurs in feruvite/dravite cores surrounded by schorl/dravite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3115.999495.969
46.45%
14SiSiliconSilicon628.085168.510
15.78%
26FeIronIron355.845167.535
15.69%
13AlAluminiumAluminium526.982134.910
12.63%
20CaCalciumCalcium140.07840.078
3.75%
5BBoronBoron310.81032.430
3.04%
12MgMagnesiumMagnesium124.30524.305
2.28%
1HHydrogenHydrogen41.0084.032
0.38%
Total1067.769100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Mn
  • K
  • Na

Synonyms

  • Feruviet

In other languages

German
Feruvit · IMA 1987-057
Italian
Feruvite
Portuguese
Feruvita · IMA1987-057

Classification

Strunz
10th ed.

9.CK.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CK[Si6O18]12- 6-membered single rings, with insular complex anionsGroup
  • 9.CK.05FeruviteSpecies
Dana
8th ed.

61.03.01.04

  • 61Cyclosilicates Six-membered RingsClass
  • 61.03Six-Membered Rings with borate groupsType
  • 61.03.01— unnamed intermediate level —Group
  • 61.03.01.04FeruviteSpecies
CIM

17.5.46

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.46FeruviteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1989Grice, Joel D., Robinson, George W. (1989) Feruvite, a new member of the tourmaline group, and its crystal structure. The Canadian Mineralogist, 27 (2) 199-203
  2. 1990American Mineralogist (1990): 75: 706-707.
  3. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  4. 1998Selway, J. B., Černý, P., Hawthorne, Frank C. (1998) Feruvite from lepidolite pegmatites at Red Cross Lake, Manitoba. The Canadian Mineralogist, 36 (2) 433-439
  5. 2001(2001) Feruvite. Handbook of Mineralogy. Mineralogical Society of America
