Fluorarrojadite-(BaNa)

BaNa4CaFe13Al(PO4)11(PO3OH)F2
IMA status
  • Approved
IMA symbol
Fajd-BaNa
IMA approved
2016
Also known as
  • Fluorarrojadiet-(BaNa)
  • IMA2016-075

Where it forms, where it's found

Geological setting

Forms in hydrothermal quartz veins intersecting highly fractionated, topaz-zinnwaldite S-type leucogranite

Type locality
Elisabeth Mine
  1. Gemerská Poloma
  2. Rožňava District
  3. Košice Region
  4. Slovakia

48.7514°, 20.4936°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Yellowish-brown to greenish-yellow
Streak
Very pale yellow
Tenacity
brittle
Fracture
Irregular/Uneven
Density
3.61 g/cm³

Optical

Optical type
Biaxial (+)
Pleochroism
Non-pleochroic

Crystallography

Crystal system
Monoclinic
Space group
Cc
Cell parameters
a = 16.563(1) Å · b = 10.0476(6) Å · c = 24.669(1) Å
Cell angles
β = 105.452(4) °
Ratio a:b:c
1 : 0.607 : 1.489
Unit cell volume
3957.5 ų
Z
4
Type-locality form

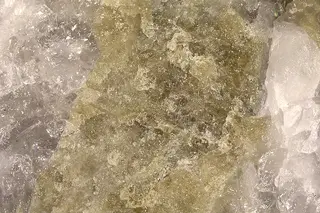

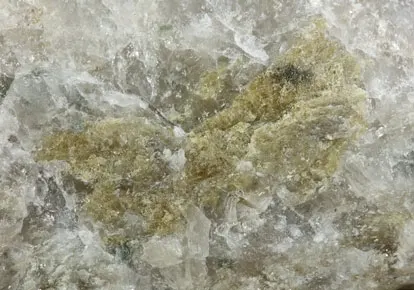

Fine grained irregular aggregates up to 4 cm, consisting of individual anhedral grains up to 0.01 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4815.999767.952
34.89%
26FeIronIron1355.845725.985
32.98%
15PPhosphorusPhosphorus1230.974371.688
16.89%
56BaBariumBarium1137.327137.327
6.24%
11NaSodiumSodium422.99091.960
4.18%
20CaCalciumCalcium140.07840.078
1.82%
9FFluorineFluorine218.99837.996
1.73%
13AlAluminiumAluminium126.98226.982
1.23%
1HHydrogenHydrogen11.0081.008
0.04%
Total2200.976100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Fluorarrojadiet-(BaNa)
  • IMA2016-075

In other languages

German
Fluorarrojadit-(BaNa) · IMA 2016-075

Classification

Strunz
10th ed.

8.BF.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BFWith medium-sized and large cations, (OH, etc.):RO4< 0.5:1Group
  • 8.BF.05Fluorarrojadite-(BaNa)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter No 34. Mineralogical Magazine, 80 (7) 1315-1321 doi:10.1180/minmag.2016.080.086DOI: 10.1180/minmag.2016.080.086
  2. 2018Števko, Martin, Sejkora, Jiří, Uher, Pavel, Cámara, Fernando, Škoda, Radek, Vaculovič, Tomáš (2018) Fluorarrojadite-(BaNa), BaNa4CaFe13Al(PO4)11(PO3OH)F2, a new member of the arrojadite group from Gemerská Poloma, Slovakia. Mineralogical Magazine, 82 (4) 863-876 doi:10.1180/minmag.2017.081.066DOI: 10.1180/minmag.2017.081.066
  3. 2021(2021) Fluorarrojadite-(BaNa). Handbook of Mineralogy. Mineralogical Society of America
