Gobbinsite

Na5(Si11Al5)O32 · 11H2O
IMA status
  • Approved
IMA symbol
Gbb
Discovered
1982
Also known as
  • Gobbinsiet

Where it forms, where it's found

Geological setting

Basalt amgygdales

Type locality
Hills Port
  1. Gobbins
  2. Islandmagee
  3. County Antrim
  4. Northern Ireland
  5. UK

54.8002°, -5.6908°

24recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · colourless
Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
2.147 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.489 – 1.494
Surface relief
Low
Principal indices
nα 1.489 · nβ 1.489 · nγ 1.494
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0050
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]50 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation50 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 10.1035(15) Å · b = 9.7819(10) Å · c = 10.1523(9) Å
Ratio a:b:c
1 : 0.968 : 1.005
Unit cell volume
1003.37 ų
Twinning

Submicroscopic, on (110)

Type-locality form

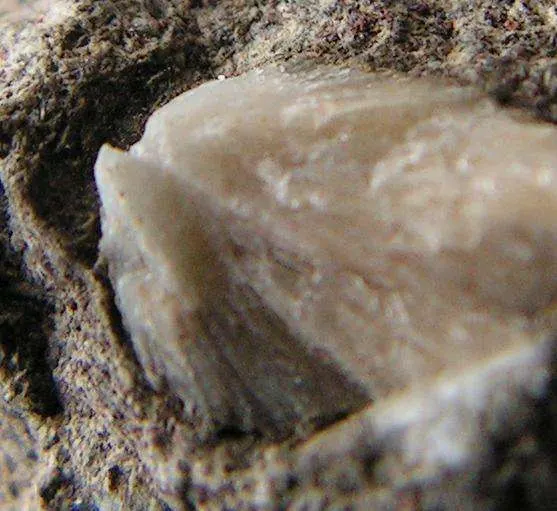

Chalky white, fibrous mineral, consisting of fibrous clusters of lath-shaped crystals.

Comment

Gatta et al. (2010)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4315.999687.957
54.21%
14SiSiliconSilicon1128.085308.935
24.35%
13AlAluminiumAluminium526.982134.910
10.63%
11NaSodiumSodium522.990114.950
9.06%
1HHydrogenHydrogen221.00822.176
1.75%
Total1268.928100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Sr
  • Ba

Synonyms

  • Gobbinsiet

In other languages

German
Gobbinsit · IMA 1980-070
Italian
gobbinsite · IMA1980-070

Classification

Strunz
10th ed.

9.GC.05

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GCChains of doubly-connected 4-membered ringsGroup
  • 9.GC.05GobbinsiteSpecies
Dana
8th ed.

77.01.03.04

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.03Gismondine and related speciesGroup
  • 77.01.03.04GobbinsiteSpecies
CIM

16.10.20

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.10Aluminosilicates of Ca and alkalisGroup
  • 16.10.20GobbinsiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1982Nawaz, Rab, Malone, John F. (1982) Gobbinsite, a new zeolite mineral from Co. Antrim, N. Ireland. Mineralogical Magazine, 46 (340) 365-369 doi:10.1180/minmag.1982.046.340.12 DOI: 10.1180/minmag.1982.046.340.12
  2. 1983Dunn, Pete J., Fleischer, Michael (1983) New mineral names. American Mineralogist, 68 (5-6) 642-645
  3. 1983Nawaz, Rab (1983) New data on gobbinsite and garronite. Mineralogical Magazine, 47 (345) 567-568 doi:10.1180/minmag.1983.047.345.20DOI: 10.1180/minmag.1983.047.345.20
  4. 1985Dunn, Pete J., Gobel, Volker, Grice, Joel D., Puziewicz, Jacek, Shigley, James E., Vanko, David A., Zilczer, Janet (1985) New mineral names. American Mineralogist, 70 (3-4) 436-441
  5. 1985McCusker, Lynne B., Baerlocher, Christian, Nawaz, Rab (1985) Rietveld refinement of the crystal structure of the new zeolite mineral gobbinsite. Zeitschrift für Kristallographie - Crystalline Materials, 171 (3-4). 281-289 doi:10.1524/zkri.1985.171.3-4.281 DOI: 10.1524/zkri.1985.171.3-4.281
