Hardystonite

Ca2ZnSi2O7
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hdy
Discovered
1899

Where it forms, where it's found

Geological setting

Occurs in a metamorphosed zinc-manganese-iron silicate-oxide orebody.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Light brownish white · pale greyish-white · whitish · very pale pinkish
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Good on (001); poor on (100) and (110).

Density
3.396 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.661 – 1.672
Surface relief
High
Principal indices
nω 1.672 · nε 1.661
Birefringence
0.009
Pleochroism
Non-pleochroic
Extinction
parallel
UV response

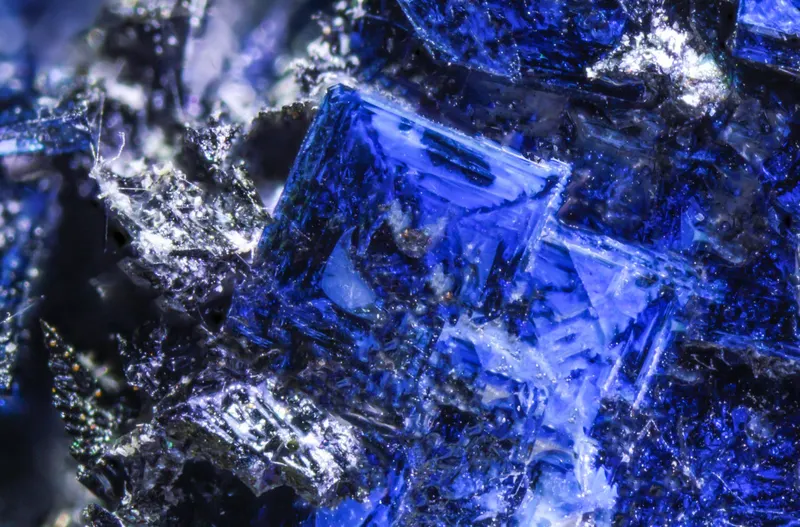

Dull persistent purple to blue (SW UV); blue (LW UV).
Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#146
Cell parameters
a = 7.8287(16) Å · c = 5.0140(2) Å
Z
2
Morphology

Large, rough crystals rare embedded in calcite or other matrix.

Type-locality form

In banded ore, forming grains averaging about a millimeter in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen715.999111.993
35.70%
20CaCalciumCalcium240.07880.156
25.55%
30ZnZincZinc165.38065.380
20.84%
14SiSiliconSilicon228.08556.170
17.91%
Total313.699100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mn
  • Pb
  • Mg
  • Na

In other languages

French
hardystonite
German
Hardystonit
Spanish
Hardystonita
Italian
Hardystonite

Classification

Strunz
10th ed.

9.BB.10

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BBSi2O7 groups, without non-tetrahedral anions; cations in tetrahedral [4] and greater coordinationGroup
  • 9.BB.10HardystoniteSpecies
Dana
8th ed.

55.04.02.02

  • 55Sorosilicates Si2o7 Groups, Generally with No Additional AnionsClass
  • 55.04Si2O7 Groups, Generally with No Additional Anions with cations in [8] and lower coordinationType
  • 55.04.02Fresnoite groupGroup
  • 55.04.02.02HardystoniteSpecies
CIM

14.7.14

  • 14Silicates not Containing AluminumClass
  • 14.7Silicates of Ba, Sr and ZnGroup
  • 14.7.14HardystoniteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1899Wolff, J.E. (1899) On hardystonite, a new calcium-zinc silicate from Franklin Furnace, New Jersey. Proceedings of the American Academy of Arts and Sciences 34, 479-481.
  2. 1900Wolff, John E.; Melczer, G. (1900) Hardystonit und Zink-Schefferit von Franklin Furnace, New Jersey. Zeitschrift für Kristallographie, 33 (1). 147-151 doi:10.1524/zkri.1900.33.1.147DOI: 10.1524/zkri.1900.33.1.147
  3. 1900Wolff, J. E. (1900) Ueber Hardystonit, ein neues Kalk-Zinksilicat von Franklin Furnace, New Jersey. Zeitschrift für Krystallographie und Mineralogie, 32 (1-6). 1-3 doi:10.1524/zkri.1900.32.1.1DOI: 10.1524/zkri.1900.32.1.1
  4. 1930Warren, Β.E.; Trautz, О.B. (1930) The Structure of Hardystonite Ca2ZnSi2O7. Zeitschrift für Kristallographie, 75 (1). 525-528 doi:10.1515/zkri-1930-0136DOI: 10.1515/zkri-1930-0136
  5. 1935Palache, C. (1935) USGS PP 180: 94.
