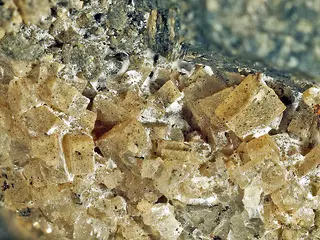

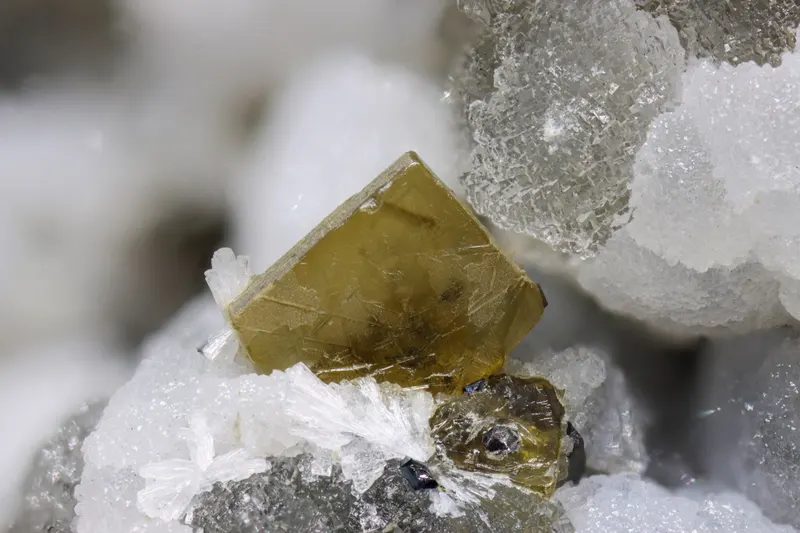

Åkermanite

Ca2MgSi2O7
IMA status
  • Approved
  • Grandfathered
IMA symbol
Åk
Also known as
  • Åkermaniet
  • Åkermanitt
  • Oakermanit
  • +3 more

Where it forms, where it's found

Geological setting

A product of contact metamorphism of siliceous limestones and dolostones, and in rocks of the sanidinite facies. Also forms from alkalic magmas rich in calcium.

57recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · yellowish gray · green · brown

In thin section, colorless to yellow.

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Distinct on (001) , poor on (110)

Fracture
Irregular/Uneven · Conchoidal
Density
2.944 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.632 – 1.64
Surface relief
Moderate
Principal indices
nω 1.632 · nε 1.64
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#146
Cell parameters
a = 7.8288(8) Å · c = 5.0052(2) Å
Z
2
Morphology

Crystals short prismatic to thin tabular, which may resemble squashed, octahedrally-modified cubes; granular, massive.

Twinning

On (100) and 001 , cruciform.

Comment

Synthetic material

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen715.999111.993
41.08%
20CaCalciumCalcium240.07880.156
29.40%
14SiSiliconSilicon228.08556.170
20.60%
12MgMagnesiumMagnesium124.30524.305
8.92%
Total272.624100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Åkermaniet
  • Åkermanitt
  • Oakermanit
  • Oakermanite
  • Okermanita
  • Okermanite

In other languages

French
Akermanite
German
Åkermanit
Spanish
Oakermanita
Italian
åkermanite

Classification

Strunz
10th ed.

9.BB.10

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BBSi2O7 groups, without non-tetrahedral anions; cations in tetrahedral [4] and greater coordinationGroup
  • 9.BB.10ÅkermaniteSpecies
Dana
8th ed.

55.04.01.01

  • 55Sorosilicates Si2o7 Groups, Generally with No Additional AnionsClass
  • 55.04Si2O7 Groups, Generally with No Additional Anions with cations in [8] and lower coordinationType
  • 55.04.01Melilite groupGroup
  • 55.04.01.01ÅkermaniteSpecies
CIM

14.6.9

  • 14Silicates not Containing AluminumClass
  • 14.6Silicates of Ca with alkali or Mg or bothGroup
  • 14.6.9ÅkermaniteSpecies

Group, growth & confusion

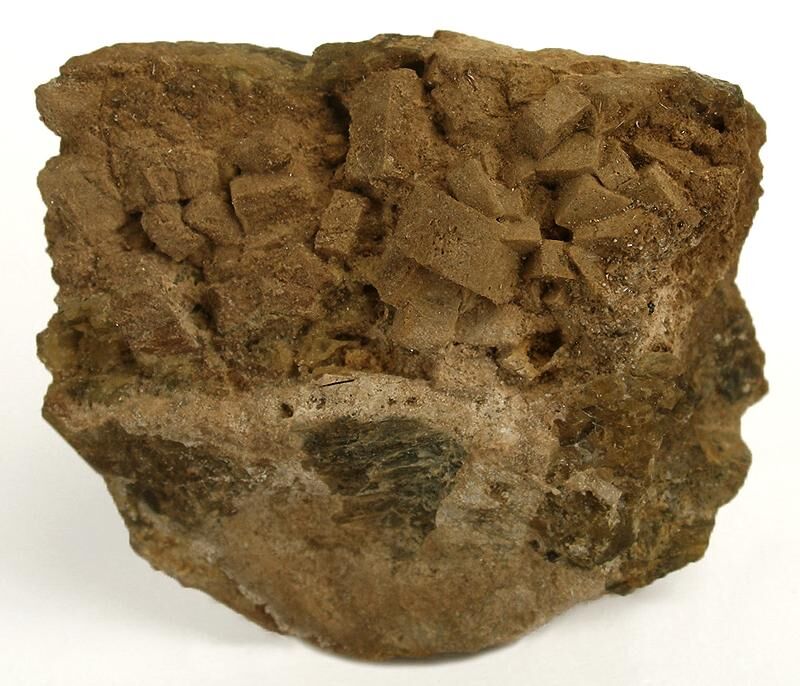

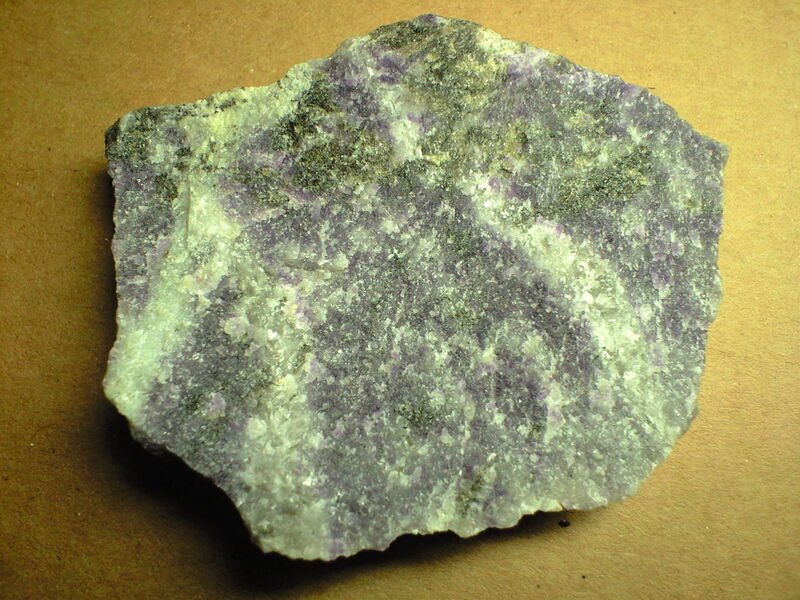

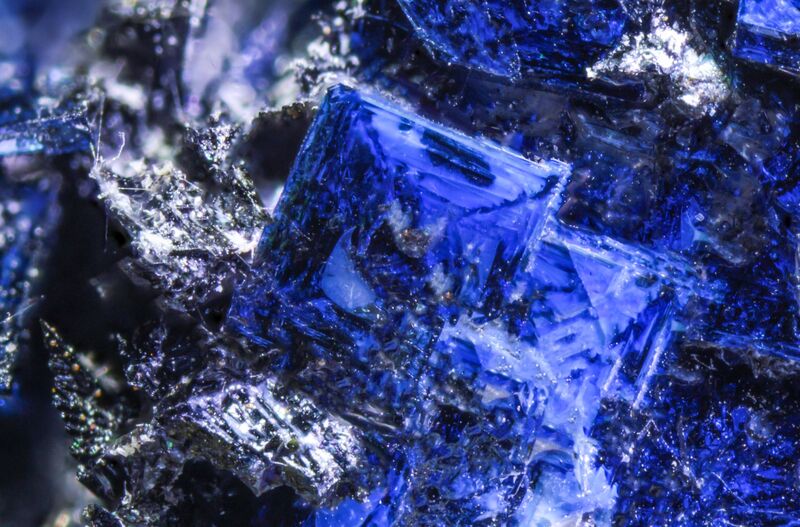

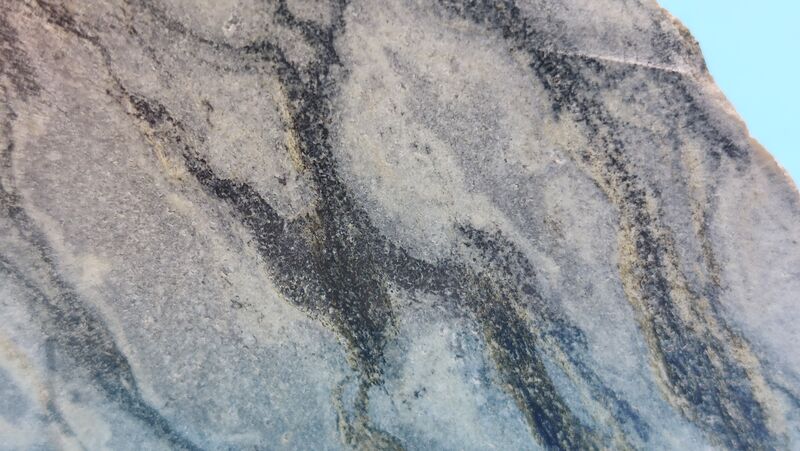

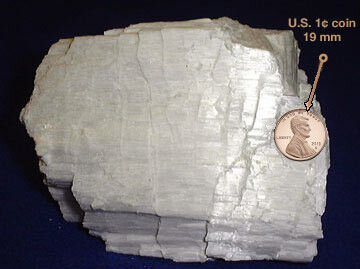

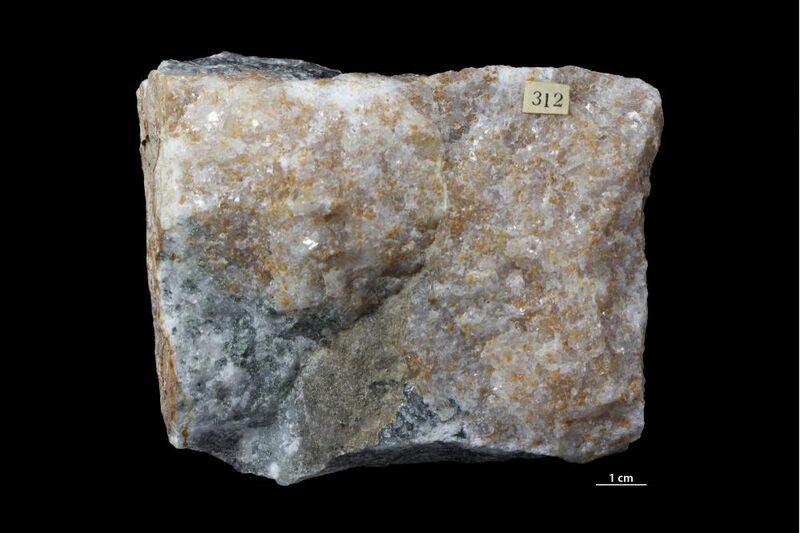

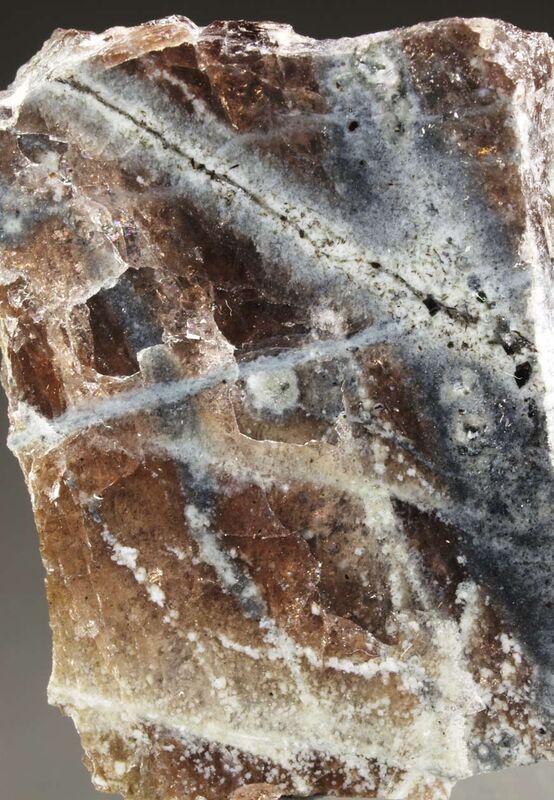

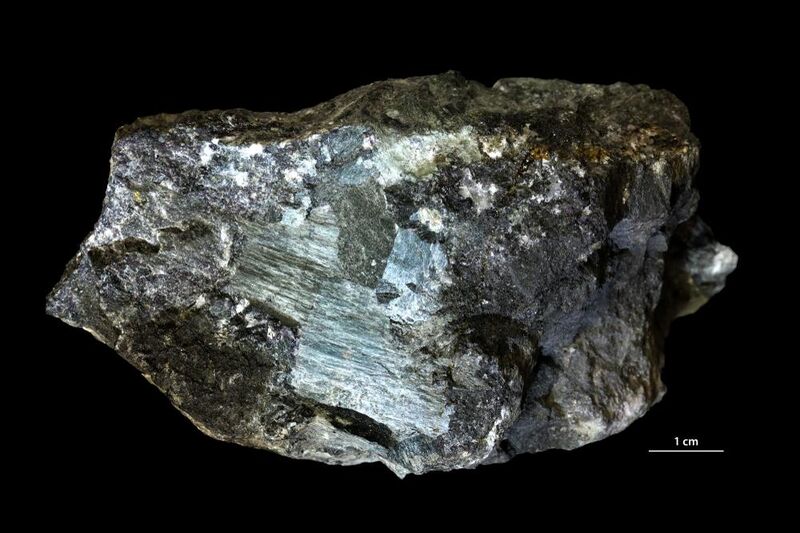

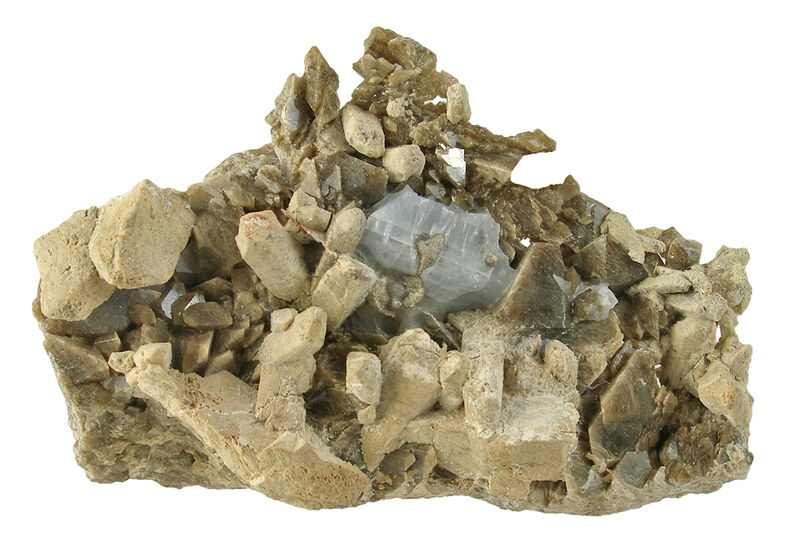

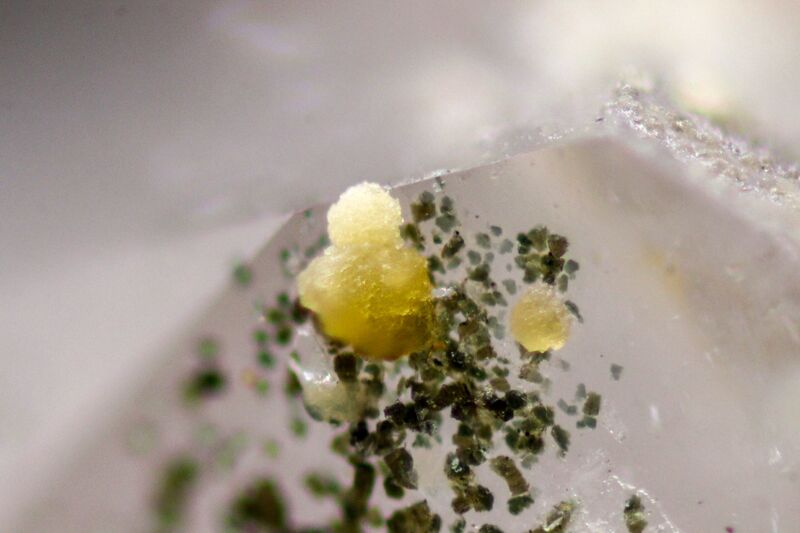

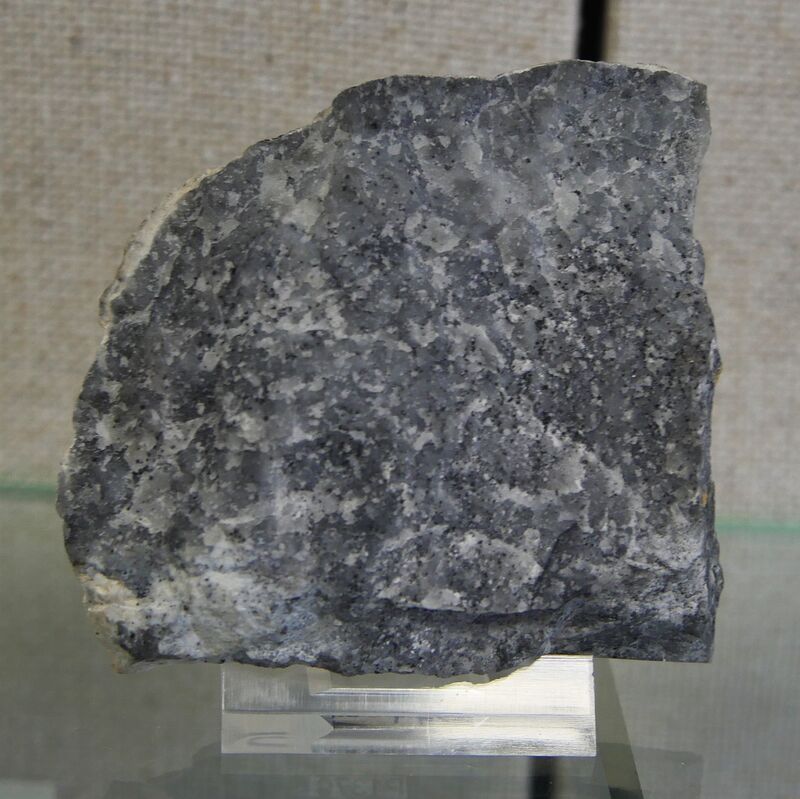

Often grow together
7 minerals

Literature, links & citation

Citations
  1. 1884Vogt, I.H.L. (1884) Studier over slagger. I. Kongliga Svenska Vetenskaps-Akademiens Handlingar: 9: 3-302.
  2. 1890Vogt, I.H.L. (1890) Die Mineralien der Melilithgruppe - nämlich Gehlenit, Melilith und ein neues tetragonales, nicht Al2O3-führendes (Ca,Mg)O-Silikat (Åkermanit), nebst Zwischengliedern. Archiv for Mathematik og Naturvidenskab: 13: 310-402.
  3. 1941Osborn, E. F., Schairer, J. F. (1941) The ternary system pseudowollastonite-akermanite-gehlenite. American Journal of Science, 239 (10) 715-763 doi:10.2475/ajs.239.10.715DOI: 10.2475/ajs.239.10.715
  4. 1942Schairer, J. F., Bowen, N. L. (1942) The binary system CaSiO3-diopside, and the relations between CaSiO3 and akermanite. American Journal of Science, 240 (10). 725-742 doi:10.2475/ajs.240.10.725DOI: 10.2475/ajs.240.10.725
  5. 1952Neuvonen, K.J. (1952) Thermochemical investigation of the åkermanite-gehlenite series. Bulletin de la Commission Géologique de Finlande Vol. 158. Geological Survey of Finland
