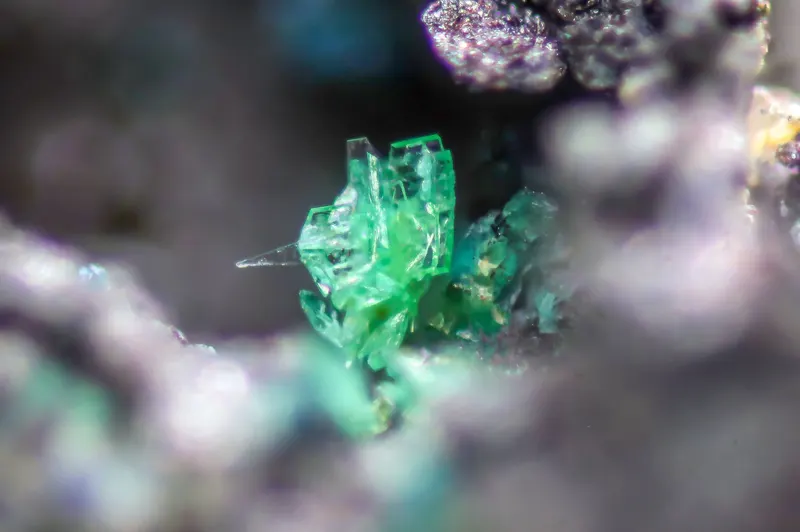

Lautenthalite

PbCu4(SO4)2(OH)6 · 3H2O
IMA status
  • Approved
IMA symbol
Lth
Discovered
1993
Also known as
  • IMA1983-029
  • Lautenthaliet

Where it forms, where it's found

Geological setting

Smelter slag.

Oxidation zone of Pb-Cu deposits.

Type locality
Lautenthal smelter slag locality
  1. Lautenthal
  2. Langelsheim
  3. Goslar District
  4. Lower Saxony
  5. Germany

51.8706°, 10.2867°

20recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Green · bright blue
Streak
White
Cleavage
Distinct/Good

Good on (001) and (010)

Density
3.84 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 78 – 79° · 2V calc = 78°
Refractive index
1.659 – 1.732
Surface relief
High
Principal indices
nα 1.659 · nβ 1.703 · nγ 1.732
Pleochroism
Weak

X = pale blue; Y = Z = blue.

Dispersion
r < v strong
Extinction
Z = b; Y ∧ c = 4(1)°.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0730
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]730 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation730 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#14
Cell parameters
a = 21.642(8) Å · b = 6.040(2) Å · c = 22.544(8) Å
Cell angles
β = 108.2(1) °
Ratio a:b:c
1 : 0.279 : 1.042
Z
8
Morphology

Tabular crystals, sheaflike or irregular aggregates.

Twinning

Polysynthetic on (100).

Type-locality form

Bright blue crystals up to 0.5 x 0.3 x 0.03 mm, and as sheaflike aggregates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1715.999271.983
33.60%
29CuCopperCopper463.546254.184
31.40%
82PbLeadLead1207.200207.200
25.59%
16SSulfurSulfur232.06064.120
7.92%
1HHydrogenHydrogen121.00812.096
1.49%
Total809.583100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1983-029
  • Lautenthaliet

In other languages

German
IMA 1983-029 · Lautenthalit
Italian
Lautenthalite

Classification

Strunz
10th ed.

7.DF.70

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DFWith large and medium-sized cationsGroup
  • 7.DF.70LautenthaliteSpecies
Dana
8th ed.

31.06.01.02

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.06(AB)5(XO4)2Zq·xH2OType
  • 31.06.01— unnamed intermediate level —Group
  • 31.06.01.02LautenthaliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1972Sabelli, C., Zanazzi, P. F. (1972) The crystal structure of devillite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 28 (4) 1182-1189 doi:10.1107/s0567740872003929DOI: 10.1107/s0567740872003929
  2. 1993Medenbach, O., Gebert, W. (1993) Lautenthalite, PbCu4[(OH)6|(SO4)2]•3H2O, the Pb analogue of devillite: A new mineral from the Harz mountains, Germany. Neues Jahrbuch für Mineralogie, Monatshefte: 1993: 401-407.
  3. 1994Jambor, John L., Roberts, Andrew C., Puziewicz, Jacek (1994) New Mineral Names. American Mineralogist, 79 (5-6) 570-574
  4. 2005(2005) Lautenthalite. Handbook of Mineralogy. Mineralogical Society of America
