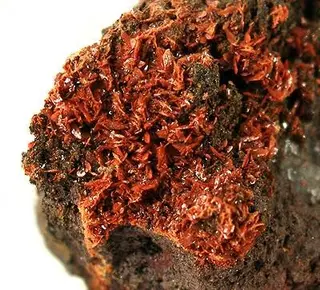

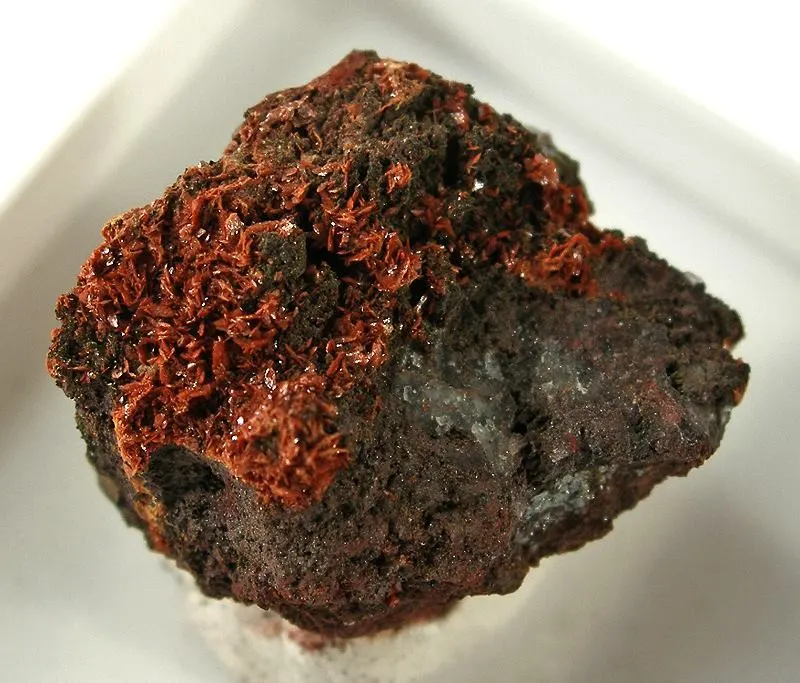

Mawbyite

PbFe3+2(AsO4)2(OH)2
IMA status
  • Approved
IMA symbol
Mby
Discovered
1988
IMA approved
1988
Also known as
  • IMA1988-049
  • Mawbyiet

Where it forms, where it's found

Geological setting

Oxidized granular spessartine-quartz rock in a zone of several cubic meters.

Type locality
Kintore opencut
  1. Broken Hill South Mine (BHS Mine
  2. South Mine)
  3. Broken Hill
  4. Broken Hill district
  5. Yancowinna Co.
  6. New South Wales
  7. Australia

-31.9707°, 141.4604°

27recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Orange-brown · red-brown · rarely green
Streak
Orange-yellow
Cleavage
Distinct/Good

(001), good.

Fracture
Conchoidal
Density
5.365 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 76°
Refractive index
1.94 – 2.04
Surface relief
Very high
Principal indices
nα 1.94 · nβ 2.00 · nγ 2.04
Pleochroism
Weak

brown to reddish brown

Dispersion
relatively weak
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.1000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1000 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1000 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.066(4) Å · b = 6.286(3) Å · c = 7.564(3) Å
Cell angles
β = 114.857(5) °
Ratio a:b:c
1 : 0.693 : 0.834
Z
2
Twinning

“V”-shaped, about (100), common.

Type-locality form

"dogtooth" crystals to .15 mm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead1207.200207.200
32.85%
8OOxygenOxygen1015.999159.990
25.36%
33AsArsenicArsenic274.922149.844
23.76%
26FeIronIron255.845111.690
17.71%
1HHydrogenHydrogen21.0082.016
0.32%
Total630.740100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1988-049
  • Mawbyiet

In other languages

German
IMA 1988-049 · Mawbyit
Italian
Mawbyite

Classification

Strunz
10th ed.

8.CG.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.15MawbyiteSpecies
Dana
8th ed.

40.02.09.04

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.02AB2(XO4)2·xH2OType
  • 40.02.09Helmutwinklerite SubgroupGroup
  • 40.02.09.04MawbyiteSpecies
CIM

20.5.16

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.5Arsenates of Ti and PbGroup
  • 20.5.16MawbyiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1989Pring, Allan, Mcbriar, E. Maud, Birch, William D. (1989) Mawbyite, a new arsenate of lead and iron related to tsumcorite and carminite, from Broken Hill, New South Wales. American Mineralogist, 74 (11-12) 1377-1381
  2. 1997Kharisun, Taylor, M. R., Bevan, D. J. M., Rae, A. D., Pring, A. (1997) The crystal structure of mawbyite, PbFe2(AsO4)2(OH)2. Mineralogical Magazine, 61 (408). 685-691 doi:10.1180/minmag.1997.061.408.07 DOI: 10.1180/minmag.1997.061.408.07
  3. 1998Krause, Werner, Belendorff, Klaus, Bernhardt, Heinz-Jürgen, Mccammon, Catherine, Effenberger, Herta, Mikenda, Werner (1998) Crystal chemistry of the tsumcorite-group minerals. New data on ferrilotharmeyerite, tsumcorite, thometzekite, mounanaite, helmutwinklerite, and a redefinition of gartrellite. European Journal of Mineralogy, 10 (2). 179-206 doi:10.1127/ejm/10/2/0179DOI: 10.1127/ejm/10/2/0179
  4. 2005(2005) Mawbyite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2019Alves, Pedro, Mumme, W. Gus, Grey, Ian E., MacRae, Colin M., Gable, Robert W. (2019) Green mawbyite, PbFe3+Fe2+0.4Zn0.6(AsO4)2OH(H2O), from the Lagoa mine, northern Portugal. Neues Jahrbuch für Mineralogie - Abhandlungen, 196 (2). 129-133 doi:10.1127/njma/2019/0167DOI: 10.1127/njma/2019/0167
