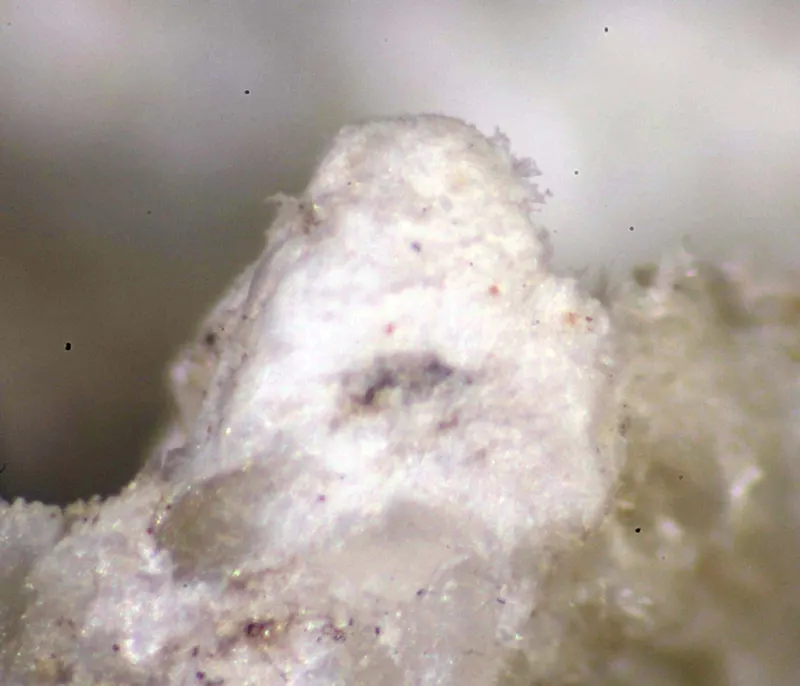

Roggianite

Ca2BeAl2Si4O13(OH)2 · nH2O (n < 2.5)
IMA status
  • Approved
IMA symbol
Rog
Discovered
1969
Also known as
  • Ginzburgite
  • Ginzburgite (of Voloshin et al.)
  • Roggianiet

Where it forms, where it's found

Type locality
Alpe Rosso
  1. Orcesco
  2. Druogno
  3. Verbano-Cusio-Ossola Province
  4. Piedmont
  5. Italy

46.1289°, 8.4139°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Translucent
Colour
White · pale yellow
Cleavage
Perfect

(110)

Density
2.02 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.527 – 1.535
Surface relief
Moderate
Principal indices
nω 1.527 · nε 1.535
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
I4/mcm
Cell parameters
a = 18.33(2) Å · c = 9.16(1) Å
Z
8
Crystal structure

Chemical composition

Impurities
  • Sr
  • Na
  • K

Synonyms

  • Ginzburgite
  • Ginzburgite (of Voloshin et al.)
  • Roggianiet

In other languages

German
IMA 1968-015 · Roggianit
Italian
Roggianite

Classification

Strunz
10th ed.

9.GB.20

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GBChains of single connected 4-membered ringsGroup
  • 9.GB.20RoggianiteSpecies
Dana
8th ed.

77.01.07.04

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.07Brewsterite and related speciesGroup
  • 77.01.07.04RoggianiteSpecies
CIM

16.10.29

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.10Aluminosilicates of Ca and alkalisGroup
  • 16.10.29RoggianiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. L’Illustrazione Ossolana: 12: 97-100.
  2. 1969Passaglia, E. (1969) Roggianite, a new silicate mineral. Clay Minerals, 8 (1) 107-111 doi:10.1180/claymin.1969.008.1.11DOI: 10.1180/claymin.1969.008.1.11
  3. 1969Gard, J. A. (1969) An electron microscope and diffraction study of roggianite. Clay Minerals, 8 (1) 112-113 doi:10.1180/claymin.1969.008.1.12DOI: 10.1180/claymin.1969.008.1.12
  4. 1970Gard, J.A. (1970) Studio per microscopia elettronica e per difrattometria della roggianite. Ceramica Informazione: 45.
  5. 1970Laghi, G.F. (1970) Le rocce che accompagnano la pegmatite a roggianite della Val Vigezzo (Novara).
