Ruifrancoite

Ca2(◻,Mn)2(Fe3+,Mn,Mg)4Be4(PO4)6(OH)6 · 4H2O
IMA status
  • Approved
IMA symbol
Rui
IMA approved
2006
Also known as
  • IMA2005-061a
  • Ruifrancoiet

Where it forms, where it's found

Geological setting

Granite pegmatite

Type locality
Sapucaia mine
  1. Sapucaia do Norte
  2. Galiléia
  3. Minas Gerais
  4. Brazil

-18.9008°, -41.4844°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
reddish brown
Streak
orange-brown
Tenacity
brittle
Cleavage

Probably has a perfect cleavage on (100) (by analogy to other roscherite-group species)

Density
2.88 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 10°
Refractive index
1.665 – 1.682
Surface relief
High
Principal indices
nα 1.665 · nβ 1.665 · nγ 1.682
Pleochroism
Visible

Brownish red to light brownish red

Dispersion
Very strong, r > v
UV response
Not fluorescent
Notes

X = b, Y ^ c ≈ 16°

Michel-Lévy diagramhighlighted lineδ = 0.0170
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]170 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation170 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 15.911 Å · b = 11.894 Å · c = 6.625 Å
Cell angles
β = 94.5 °
Ratio a:b:c
1 : 0.748 : 0.416
Unit cell volume
1250 ų
Z
2
Type-locality form

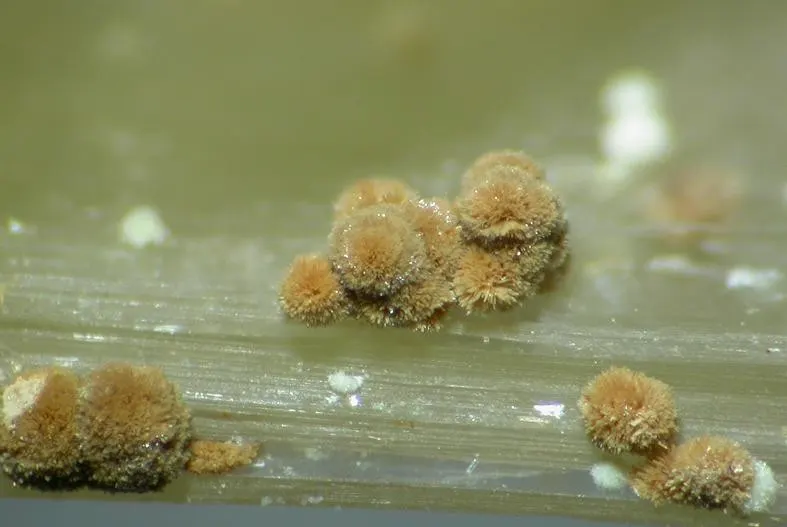

Needles or laths 1 to 2 microns thick, and up to 100 microns long in fan-shaped botryoids.

Synonyms

  • IMA2005-061a
  • Ruifrancoiet

In other languages

German
IMA 2005-061a · Ruifrancoit
Italian
ruifrancoite

Classification

Strunz
10th ed.

8.DA.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DAWith small (and occasionally larger) cationsGroup
  • 8.DA.10RuifrancoiteSpecies
Dana
8th ed.

42.07.07.04

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.07Roscherite groupGroup
  • 42.07.07.04RuifrancoiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2007Atencio, D., Chukanov, N. V., Coutinho, J. M.V., Filho, L. A.D. M., Dubinchuk, V. T., Möckel, S. (2007) Ruifrancoite, a new Fe3+-dominant monoclinic member of the roscherite group from Galileia, Minas Gerais, Brazil. The Canadian Mineralogist, 45 (5) 1263-1273 doi:10.2113/gscanmin.45.5.1263 DOI: 10.2113/gscanmin.45.5.1263
  2. 2022(2022) Ruifrancoite. Handbook of Mineralogy. Mineralogical Society of America
