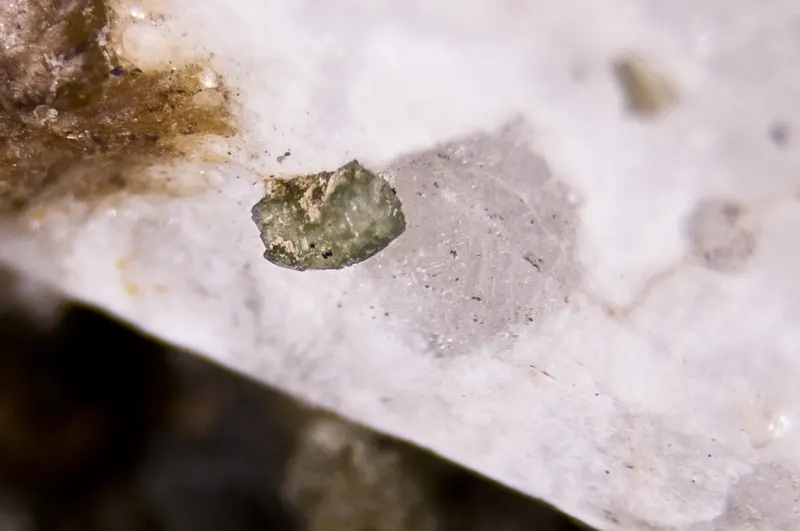

Roscherite

Ca2Mn2+5Be4(PO4)6(OH)4 · 6H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Rsc
Discovered
1914
Also known as
  • Roscheriet

Where it forms, where it's found

Geological setting

Granite

Miarolitic cavities in granites, complex zoned granitic pegmatites

Type locality
Greifensteine
  1. Ehrenfriedersdorf
  2. Erzgebirgskreis
  3. Saxony
  4. Germany

50.6486°, 12.9311°

33recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Brown · red · orange · greenish gray · yellowish green to brown in transmitted light

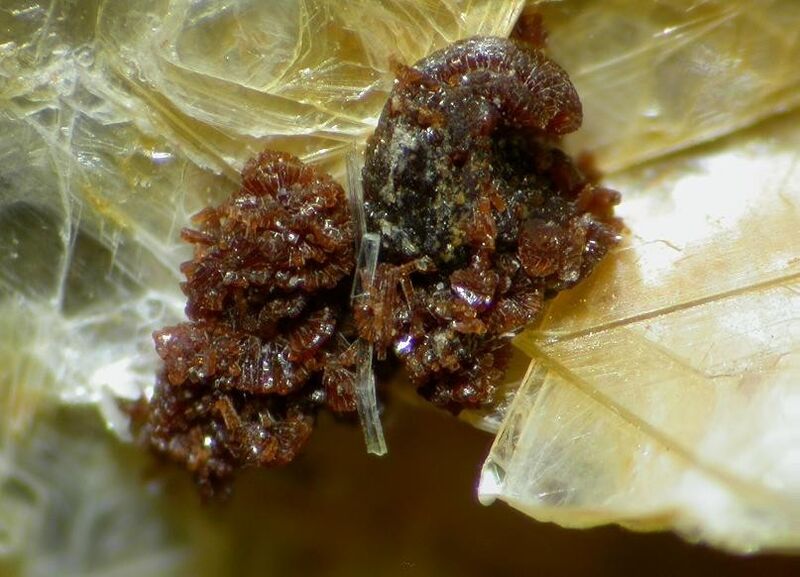

May exhibit abnormal interference colours. Distinctly green roscherite may be iro-rich and be greifensteinite

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

n (001), good; on (010), distinct.

May be slintery due to radial fibrous aggregates

Fracture
Splintery
Density
2.90 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.624 – 1.65
Surface relief
Moderate
Principal indices
nα 1.624 – 1.628 · nβ 1.639 – 1.644 · nγ 1.643 – 1.650
Birefringence
0.020
Pleochroism
Visible

X = Yellow to olive green Y = Yellow-brown, greenish brown Z = Chestnut brown

Dispersion
r > v very strong, crossed dispersion
Extinction
X=b, Y^c - -15°to 24°
UV response
Not fluorescent in UV
Notes

2V measured: large.

Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 15.88 Å · b = 11.90 Å · c = 6.62 Å
Cell angles
β = 94.7 °
Ratio a:b:c
1 : 0.749 : 0.417
Z
4
Morphology

Short prismatic [001], with an eight-or six-sided cross section; also or flattened on (100) or (010) thin tabular, and elongated [010], with forms (010), (110), and (111). Spherical to botryoidal aggregates and crusts with an internally firbous structure; powdery massive.

Comment

Monoclinic Space Group: C2/c, β = 94°42'. May be triclinic with space group C-1, with a = 15.921, b = 11.965, c = 6.741. α = 91°04', β = 94°21', γ = 89°59.5'.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3415.999543.966
47.85%
25MnManganeseManganese554.938274.690
24.16%
15PPhosphorusPhosphorus630.974185.844
16.35%
20CaCalciumCalcium240.07880.156
7.05%
4BeBerylliumBeryllium49.01236.048
3.17%
1HHydrogenHydrogen161.00816.128
1.42%
Total1136.832100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Roscheriet

In other languages

French
Roschérite
German
Roscherit
Italian
Roscherite

Classification

Strunz
10th ed.

8.DA.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DAWith small (and occasionally larger) cationsGroup
  • 8.DA.10RoscheriteSpecies
Dana
8th ed.

42.07.07.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.07Roscherite groupGroup
  • 42.07.07.01RoscheriteSpecies
CIM

19.3.12

  • 19PhosphatesClass
  • 19.3Phosphates of Be and MgGroup
  • 19.3.12RoscheriteSpecies

Group, growth & confusion

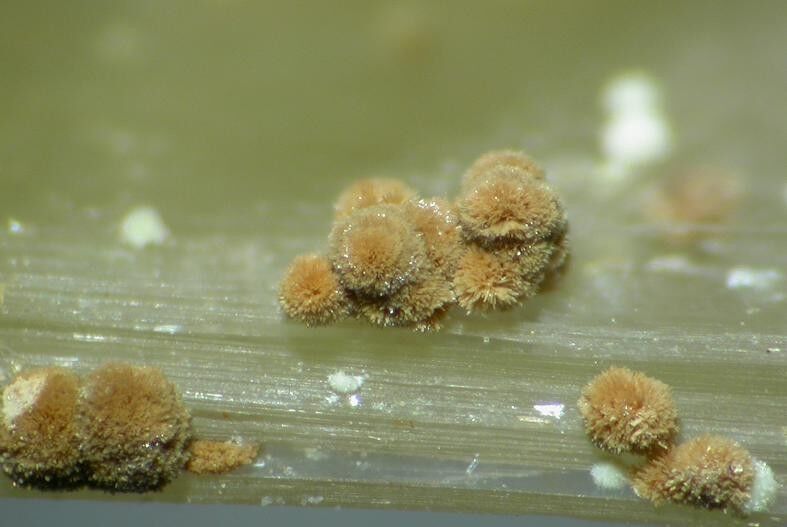

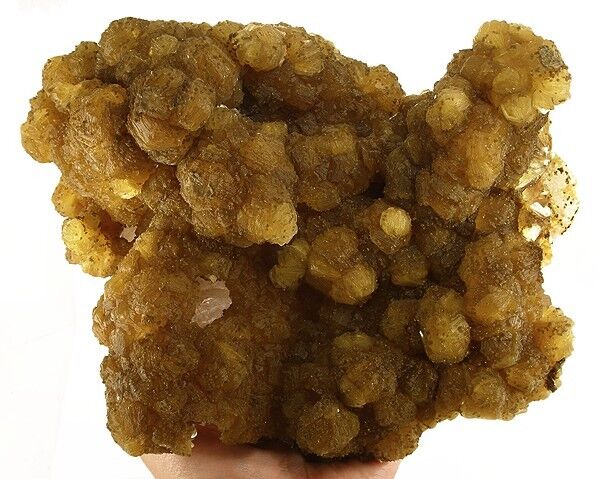

Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. Tschermaks Mineralogische und Petrographische Mitteilungen: 22: 266-277. (for triclinic 'roscherite')
  2. 1914Slavík (1914) Česká Akademie véd a umĕnē u Praze - Bull. intern. ac. sc. Bohême, no. 4.
  3. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  4. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  5. 1958Lindberg, Marie L. (1958) Beryllium content of roscherite from the Sapucaia pegmatite mine, Minas Gerais, Brazil. American Mineralogist, 43 (9-10) 824-838
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Roscherite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/roscherite-3448},
  note      = {Accessed 2026-05-11}
}
