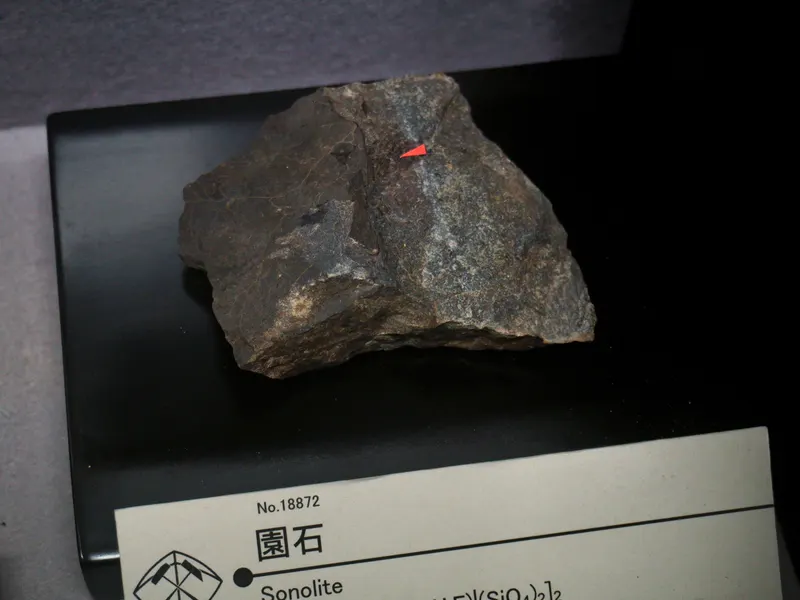

Sonolite

Mn2+9(SiO4)4(OH)2
IMA status
  • Approved
IMA symbol
Snl
Discovered
1963
Also known as
  • Sonoliet

Where it forms, where it's found

Type locality
Sono mine
  1. Wazuka-cho
  2. Soraku District
  3. Kyoto Prefecture
  4. Japan
43recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Red-orange · pinkish brown to dark brown
Density
3.82 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 75 – 82° · 2V calc = 78°
Refractive index
1.765 – 1.787
Surface relief
High
Principal indices
nα 1.765 · nβ 1.778 · nγ 1.787
Dispersion
r>v
Notes

X ∧ (001) = 9-10°

Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/b
Cell parameters
a = 4.872(5) Å · b = 10.669(12) Å · c = 14.287(7) Å
Cell angles
β = 100.3(1) °
Ratio a:b:c
1 : 2.190 : 2.932
Z
2
Morphology

Prismatic to anhedral crystals, up to 2.5 cm; granular.

Twinning

Singular or lamellar on (101), common.

Type-locality form

Fine-grained, prismatic to anhedral crystals.

Comment

Non-standard space-group setting P21/b.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese954.938494.442
55.14%
8OOxygenOxygen1815.999287.982
32.11%
14SiSiliconSilicon428.085112.340
12.53%
1HHydrogenHydrogen21.0082.016
0.22%
Total896.780100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mg
  • Ca
  • H2O
  • C

Synonyms

  • Sonoliet

In other languages

French
sonolite
German
Sonolith
Spanish
sonolita
Italian
sonolite
Japanese
園石
Chinese
斜硅锰石

Classification

Strunz
10th ed.

9.AF.55

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.55SonoliteSpecies
Dana
8th ed.

52.03.2d.03

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2d— unnamed intermediate level —Group
  • 52.03.2d.03SonoliteSpecies
CIM

17.1.30

  • 17Silicates Containing other AnionsClass
  • 17.1Silicates with fluoride (not containing Al)Group
  • 17.1.30SonoliteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1963Fleischer, Michael (1963) New Mineral Names. American Mineralogist, 48 (11-12) 1413-1421
  2. 1963Yoshinaga, M. (1963) Sonolite, a new manganese silicate mineral. Memoirs of the Faculty of Science, Kyushu Imperial University, Series D: 14: 1-21.
  3. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
  4. 1969Cook, David (1969) Sonolite, alleghanyite and leucophoenicite from New Jersey. American Mineralogist, 54 (9-10) 1392-1398
  5. 1983Winter, G. A., Essene, E. J., Peacor, D. R. (1983) Mn-humites from Bald Knob, North Carolina: mineralogy and phase equilibria. American Mineralogist, 68 (9-10) 951-959
