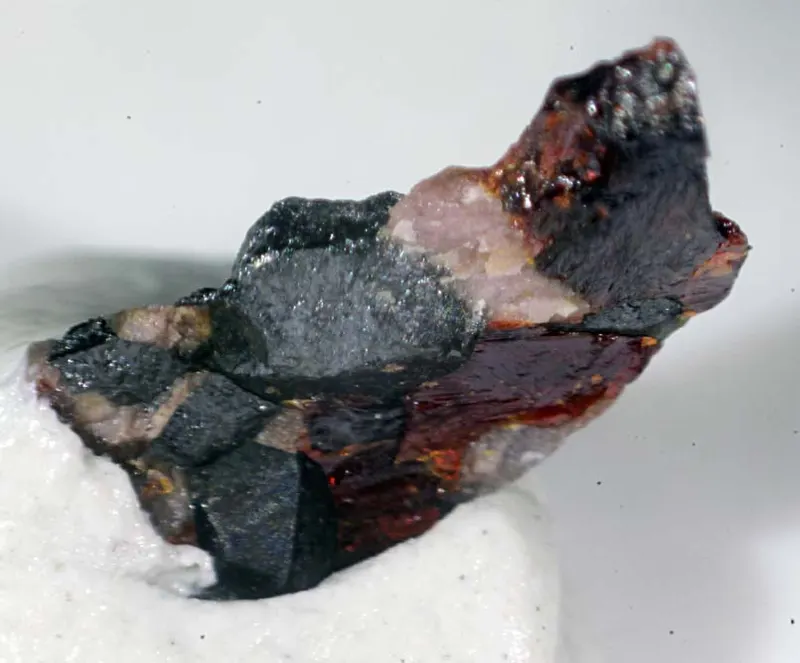

Jerrygibbsite

Mn2+9(SiO4)4(OH)2
IMA status
  • Approved
IMA symbol
Jgb
Discovered
1981
IMA approved
1981
Also known as
  • IMA1981-059
  • Jerrygibbsiet

Where it forms, where it's found

Geological setting

Metamorphosed manganese-bearing zinc silicate and zinc oxide ore deposit.

Manganese silicate deposit where it was originally found as an indistinguishable mixture of several humite group species.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Violet pink to pinkish violet

Not rosey pink as in leucophoenicite

Streak
Pale pink
Tenacity
brittle
Cleavage
Imperfect/Fair

Parallel to (001)

Cleavage is not obvious

Fracture
Irregular/Uneven
Density
4.00 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 72° · 2V calc = 72°
Refractive index
1.772 – 1.789
Surface relief
High
Principal indices
nα 1.772 · nβ 1.783 · nγ 1.789
Birefringence
0.027
Pleochroism
Non-pleochroic
Dispersion
r > v moderate
Extinction
Parallel. abc = XYZ
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0270
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]270 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation270 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#63
Cell parameters
a = 28.17 Å · b = 4.85 Å · c = 10.70 Å
Ratio a:b:c
1 : 0.172 : 0.380
Z
4
Morphology

Massive.

Type-locality form

Massive to granular-appearing light to medium pink violet mineral.

Comment

Setting is P21cn

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese954.938494.442
55.14%
8OOxygenOxygen1815.999287.982
32.11%
14SiSiliconSilicon428.085112.340
12.53%
1HHydrogenHydrogen21.0082.016
0.22%
Total896.780100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Zn
  • Mg
  • Ca
  • H2O

Synonyms

  • IMA1981-059
  • Jerrygibbsiet

In other languages

French
jerrygibbsite
German
IMA 1981-059 · Jerrygibbsit
Italian
Jerrygibbsite
Chinese
羟硅锰石

Classification

Strunz
10th ed.

9.AF.70

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.70JerrygibbsiteSpecies
Dana
8th ed.

52.03.2d.02

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2d— unnamed intermediate level —Group
  • 52.03.2d.02JerrygibbsiteSpecies
CIM

14.17.7

  • 14Silicates not Containing AluminumClass
  • 14.17Silicates of MnGroup
  • 14.17.7JerrygibbsiteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1984Dunn, Pete J., Peacor, Donald R., Simmons, William B., Essene, Eric J. (1984) Jerrygibbsite, a new polymorph of (Mn9SiO4)4(OH)2 from Franklin, New Jersey, with new data on leucophoenicite. American Mineralogist, 69 (5-6) 546-552
  2. 1989Kato, T., Ito, Y., Hashimoto, N. (1989) The crystal structures of sonolite and jerrygibbsite. Neues Jahrbuch für Mineralogie, Monatshefte: 1989: 410-430.
  3. 2001(2001) Jerrygibbsite. Handbook of Mineralogy. Mineralogical Society of America
