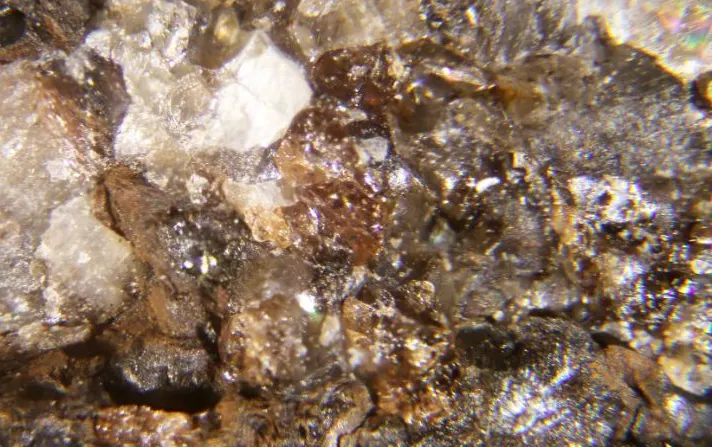

Manganhumite

Mn2+7(SiO4)3(OH)2
IMA status
  • Approved
IMA symbol
Mnhu
Discovered
1969
IMA approved
1969
Also known as
  • IMA1969-021
  • Manganhumiet
  • Manganohumit

Where it forms, where it's found

Geological setting

Skarn

Type locality
Brattfors Mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8333°, 14.1247°

14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale to deep brownish-orange
Cleavage
Perfect

(010)

Density
3.83 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 37° · 2V calc = 70°
Refractive index
1.707 – 1.723
Surface relief
High
Principal indices
nα 1.707 · nβ 1.712 · nγ 1.723
Birefringence
Moderate
Pleochroism
Not Visible
Dispersion
r > v weak
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 10.54 Å · b = 21.45 Å · c = 4.82 Å
Ratio a:b:c
1 : 2.035 : 0.457
Morphology

Anhedral grains, to about 1 cm

Type-locality form

Anhedral grains up to 1 mm in greatest dimension. Pale to deep brownish-orange. Often show small inclusions of katoptrite and magnetite.

Comment

Space Group: Pbnm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese754.938384.566
55.35%
8OOxygenOxygen1415.999223.986
32.24%
14SiSiliconSilicon328.08584.255
12.12%
1HHydrogenHydrogen21.0082.016
0.29%
Total694.823100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Ca
  • F
  • H20
  • P

Synonyms

  • IMA1969-021
  • Manganhumiet
  • Manganohumit

In other languages

German
IMA 1969-021 · Manganhumit
Italian
Manganhumite

Classification

Strunz
10th ed.

9.AF.50

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AFNesosilicates with additional anions; cations in [4], [5] and/or only [6] coordinationGroup
  • 9.AF.50ManganhumiteSpecies
Dana
8th ed.

52.03.2c.03

  • 52Nesosilicates Insular Sio4 Groups and O, Oh, F, H2oClass
  • 52.03Insular SiO4 Groups and O, OH, F, and H2O with cations in [6] coordination onlyType
  • 52.03.2c— unnamed intermediate level —Group
  • 52.03.2c.03ManganhumiteSpecies
CIM

14.18.12

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.12ManganhumiteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1978Francis, Carl A., Ribbe, Paul H. (1978) Crystal structures of the humite minerals: V. Magnesian manganhumite. American Mineralogist, 63 (9-10) 874-877
  2. 1978Moore, Paul Brian (1978) Manganhumite, a new species. Mineralogical Magazine, 42 (321) 133-136 doi:10.1180/minmag.1978.042.321.20 DOI: 10.1180/minmag.1978.042.321.20
  3. 1979Fleischer, Michael, Chao, George Y., Pabst, and Adolf (1979) New Mineral Names. American Mineralogist, 64 (1-2) 241-245
  4. 1983Winter, G. A., Essene, E. J., Peacor, D. R. (1983) Mn-humites from Bald Knob, North Carolina: mineralogy and phase equilibria. American Mineralogist, 68 (9-10) 951-959
  5. 1985Dunn, Pete J. (1985) Manganese humites and leucophoenicites from Franklin and Sterling Hill, New Jersey: parageneses, compositions, and implications for solid solution limits. American Mineralogist, 70 (3-4) 379-387
